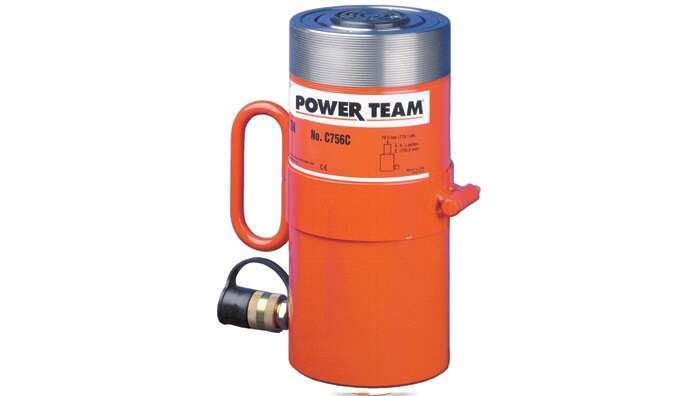

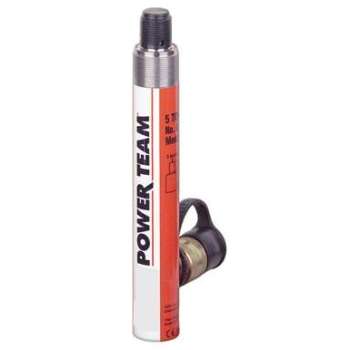

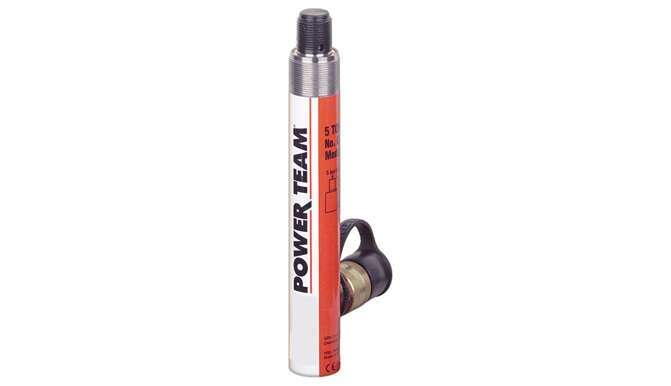

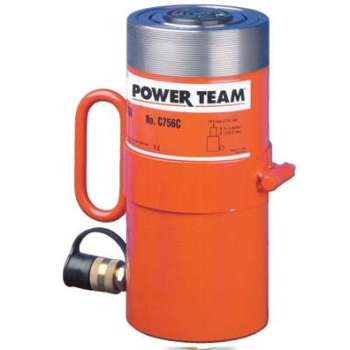

C SERIES

C SERIES - Power Team Cylinder

Single-Acting, Spring-Return high quality, general purpose cylinder used for lifting and pressing. Designed to utilize aluminum bronze bearings to significantly reduce wear. Piston return speed and spring life are bolstered by Maximum sized springs. Constructed for durability, using a Solid steel cylinder body for integrity. Chrome plated piston rod resists wear and corrosion adding to the cylinder’s life cycle. Intricately customizable through the wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.

View Catalog - C Series - US  UK  DE ‖ ES  FR

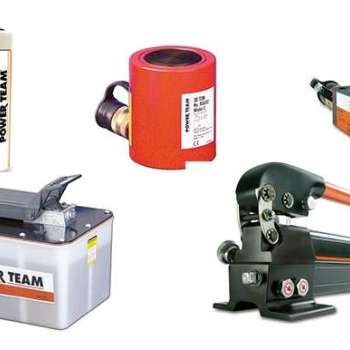

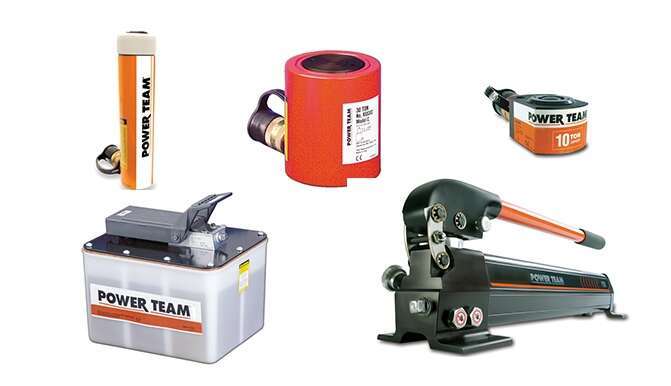

CPS/RPS

CPS/RPS - Power Team Cylinder

Precision-matched cylinder and pump set for wide range of applications. Four styles of cylinders within the CPS/RPS Series with each set featuring single or two-speed hydraulic hand pumps. CPS/RPS Series cylinders vary in tonnages with long, medium or short stroke depending. Includes necessary fittings, couplers and 6-foot (1,8 m) hose. Gauge and gauge mounting adapter is recommended.



View Brochure - CPS/RPS - US


CBT SERIES

CBT SERIES - Power Team Cylinder

Single Acting, Spring-Return, threaded piston rod end and base that is built to accommodate accessories and adapters. Threaded cylinder collars, piston rod ends, and internal base threads simplify mounting. A 9796 3/8" NPTF female half coupler is standard with each cylinder; oil port threads are 3/8" NPTF.

View Catalog - CBT Series - US  UK  DE ‖ ES  FR

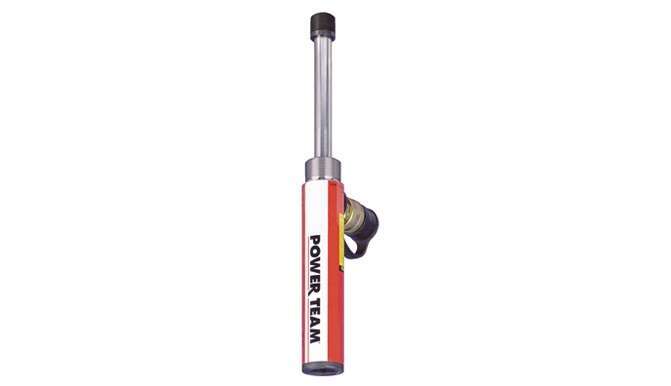

RP SERIES

RP SERIES - Power Team Cylinder

Single-Acting, Spring-Return. Designed for pulling and tensioning. Heavy duty compression spring provides long cycle life and rapid extension of piston. Spring automatically extends piston rod when pump pressure is released.

View Catalog - RP Series - US  UK  DE ‖ ES  FR

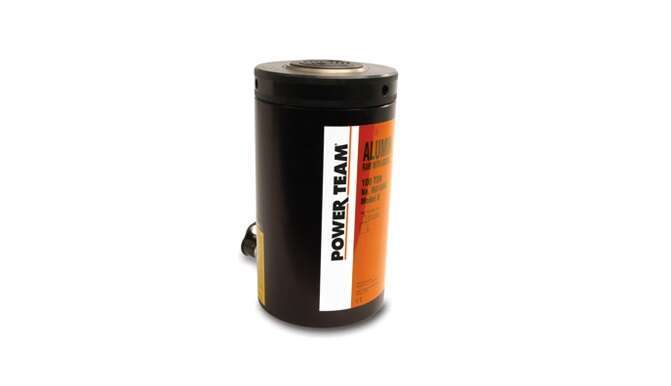

RA SERIES

RA SERIES - Power Team Cylinder

Half the weight of equal capacity steel cylinders, the RA Series cylinder utilizes an aluminum body that resists sparking in hazardous circumstances. The aluminum piston rod and aluminum cylinder bore resist wear and corrosion.

View Catalog - RA Series - US  UK  DE ‖ ES  FR


RLS SERIES

RLS SERIES - Power Team Cylinder

Single-Acting, Spring-Return Power Team cylinder, Ideal for confined areas from 1 5/8" (266,7 mm) to 4" (542,9 mm) clearance. Cylinder body, piston and gland nut are each Power Team treated for corrosion and abrasion resistance. The RLS Series is designed with the standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) to minimize the effects of off center loading. A unique heavy-duty spring provides fast piston return. A 9796 3/8" NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8" coupler which is not angled). Oil ports are 3/8" NPTF. Couplers on all cylinders, except RLS50, are angled upward for extra clearance.

View Catalog - RLS Series - US  UK  DE ‖ ES  FR

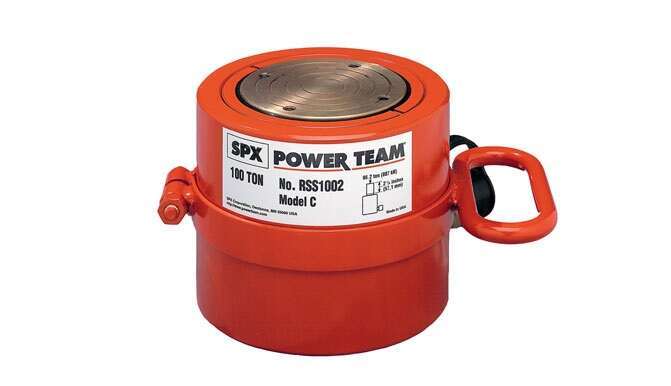

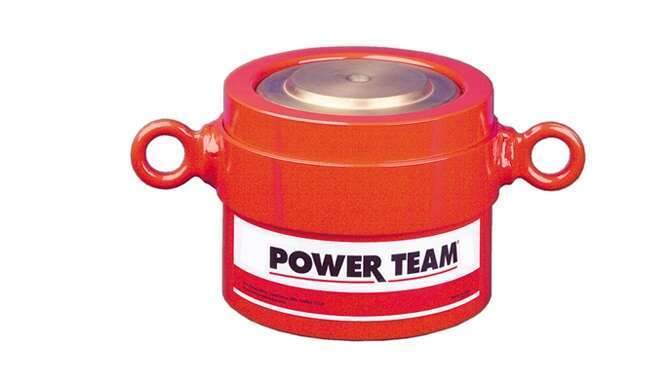

RSS SERIES

RSS SERIES - Power Team Cylinder

Single-Acting and Double-Acting Spring-Return cylinder. The RSS Series cylinder is ideal for confined areas from 3 1/2" (88,9 mm) to 11 7/16" (290,2 mm) clearance. Power Tech plated piston rods and gland nuts resist scoring and corrosion. Heavy duty return spring of the RSS Series cylinder provides fast piston return & low collapsed height. Coupler on 10 thru 50 ton models is angled upward 5° for added clearance. The RSS Series cylinder features a grooved piston top to keep loads from sliding. Cylinders can be “dead-ended” at full capacity. Removable carrying handles on 100 ton and 250 ton models.

View Catalog - RSS Series - US  UK  DE ‖ ES  FR

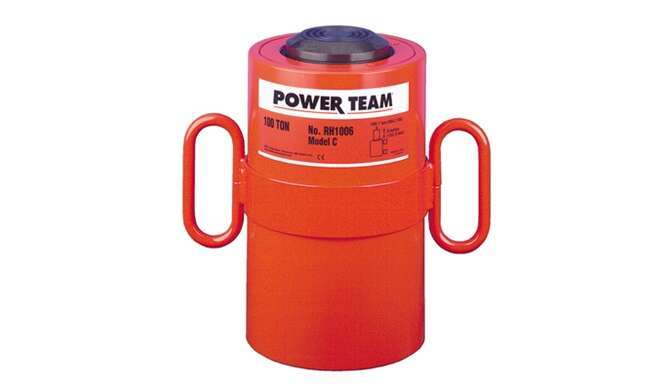

RH SERIES

RH SERIES - Power Team Cylinder

Double-Acting industrial cylinder, Ideal for the pulling and tensioning of cables, anchor bolts, forcing screws, etc. The RH Series cylinder features interchangeable piston head inserts to a range of versatility in application. 30, 60, 100 Ton Double-Acting RH Series cylinders feature threaded collar built-in safety feature to prevent over pressurization of the retract circuit. Intricately designed the plated piston rod resists wear due to superior packings to provide high cycle life without leakage. Corrosion-resistant standpipe has “Power Tech” resistant treatment. Each cylinder has 9796 3/8" NPTF female half couplers. The 60 ton thru 200 ton steel models are equipped with removable carrying handles.

View Catalog - RH Series - US  UK  DE ‖ ES  FR


RT SERIES

RT SERIES - Power Team Cylinder

Single-Acting, Spring-Return and Double-Acting Power Team cylinder, ideal for pulling and pressing. A proven design; used throughout industry for over 45 years. The RT Series cylinders are compactly designed to withstand full “dead-end” loads. Basic cylinder head can be changed from a tapped hole to plain hole by simply changing insert. Pistons have “Power Tech” treatment for corrosion and abrasion resistance.

View Catalog - RT Series - US  UK  DE ‖ ES  FR

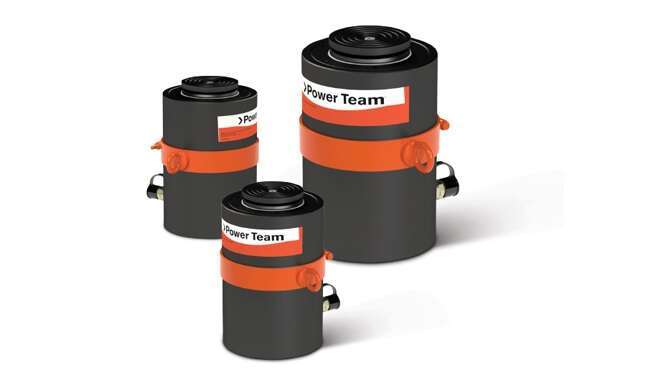

RGG SERIES

RGG SERIES - Power Team Cylinder

Single Acting load return hydraulic Power Team cylinder, featuring tonnages ranging from 55 – 200. The Power Team patented swivel cap provides concentrated load centering up to 5 degrees Sealing technology provides rod lubrication to reduce friction and wear in the RGG Series cylinder. Optimized piston gland design resists side loading conditions and an integrated robust retaining ring withstands full load end stop and conforms with ANSI B30.1 standards Power-Tech+ nitrided components to inhibit corrosion and provide expectational durability Base mounting holes standard on all models (they are not maintained to port location) One high flow 3/8” NPTF female half coupler and carry strap w/ eyelets are included.

View Catalog - RGG Series - US  UK  ES  FR

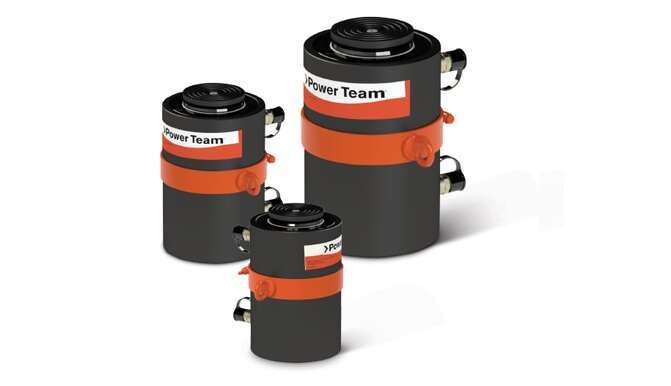

RDG SERIES

RDG SERIES - Power Team Cylinder

The RDG Series cylinder features double Acting, hydraulic return, and tonnages ranging from 55-200. Power Team patented swivel cap provides concentrated load centering up to 5 degrees. The RDG Series cylinders are designed with a robust retaining ring to withstand full load end stop and conforms with ANSI B30.1 standards Safety relief valve prevents over-pressurization of the retract circuit Sealing technology provides lubrication to reduce friction and wear Sealing technology provides lubrication to reduce friction and wear Power-Tech+ nitrided components to inhibit corrosion and provide expectational durability Optimized piston gland design resists side loading conditions Base mounting holes standard on all models (they are not maintained to port location) Two high flow 3/8” NPTF female half coupler and carry strap w/ eyelets are included.

View Catalog - RDG Series - US  UK  ES  FR

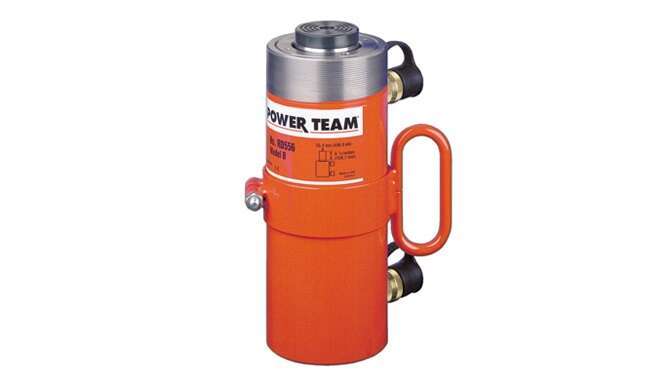

RD SERIES

RD SERIES - Power Team Cylinder

Double-Acting, Hydraulic-Return industrial cylinder. Designed for high tonnage and built for a high cycle life. The RD Series cylinder is precisely constructed for bridge lifting, building reconstruction, shipyard, utility and mining equipment maintenance. Aluminum bronze overlay bearings provide long life and the signature chrome plated piston rod is intentionally plated for corrosion resistance. The RD Series load cap is removable to expose internal piston rod threads for pulling applications; threads withstand full tonnage. Grooved ring pattern in load cap helps guard against load slippage. Each cylinder has two 9796 3/8" NPTF female half couplers. Built-in safety relief valve prevents over-pressurization of the retract circuit. Features mounting holes and collar threads.

View Catalog - RD Series - US  UK  DE ‖ ES  FR


R SERIES

R SERIES - Power Team Cylinder

Single-Acting, Load Return cylinders. The R Series cylinders feature a visible indicator band alerts when stroke limit is reached.  Overflow port (weep hole) stroke limiter prevents piston from being overextended.  Optional swivel load caps reduce the effect of off-center loading tilts up to 5 degrees.  Radial grooves on the top of cap reduce load slippage.

Double-Acting, Hydraulic Return cylinders.  These cylinders come standard with swivel caps to reduce the effects of off-center loading. Built-in safety relief valve prevents over-pressurization of the retraction circuit.  Each cylinders has two 9796 3/8" NPTF female half couplers.

View Catalog - R Series - US  UK  DE ‖ ES  FR


RA_L SERIES

RA_L SERIES - Power Team Cylinder

Single-Acting, Spring Return, Aluminum cylinders. The RA_L Series cylinders feature a positive mechanical locking collar to support extended load holding. This cylinder is specialized to supports lifted load for extended periods of time by utilizing hydraulic pressure release. At half the weight of steel cylinders of comparable capacity, aluminum cylinders are ideal for portability.

View Catalog - RA_L Series - US  UK  DE ‖ ES  FR


R_L SERIES

R_L SERIES - Power Team Cylinder

Single-Acting, Load Return, Steel Cylinder. The R_L Series cylinders feature a positive mechanical locking collar to support extended load with hydraulic pressure released. Visible indicator band alerts when stroke limit is reached.  Overflow port ("weep hole") stroke limiter prevents piston from being overextended.

View Catalog - R_L Series - US  UK  DE ‖ ES  FR
