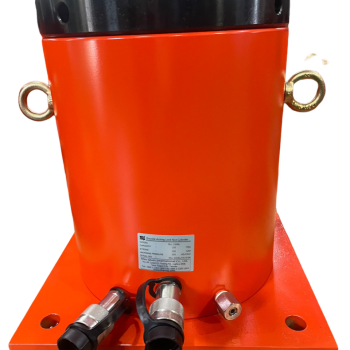

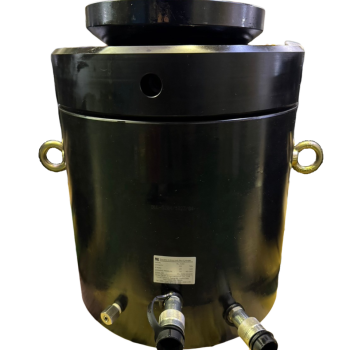

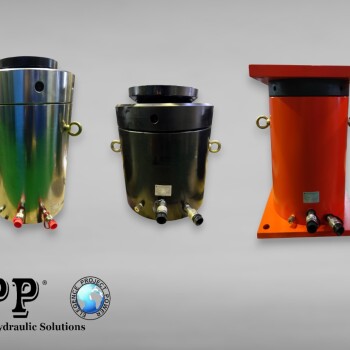

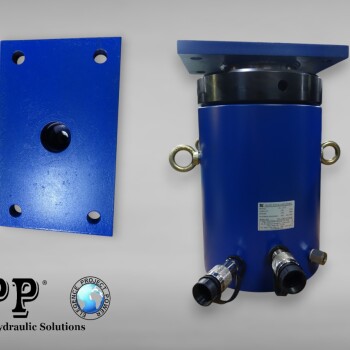

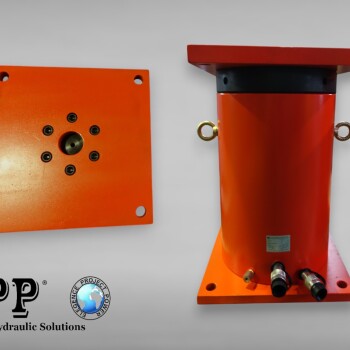

Double-Acting Lock Nut Hydraulic Jack
-
Safety lock nut for mechanical load holding.
-
Overflow port functions as a stroke limiter.
-
ECR-400 coupler and dust cap included with all models.
-
Plunger wiper reduces contamination, extending cylinder life.
-

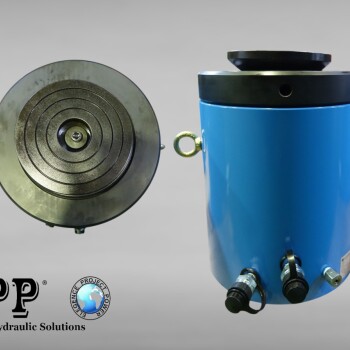

Interchangeable, hardened grooved saddles are standard.
-
Special synthetic coating improves corrosion resistance and reduces friction for smoother operation.

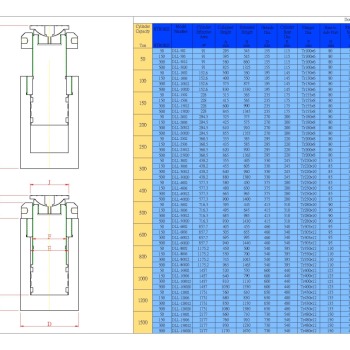

| Model | Capacity(ton) | Stroke(mm) | Outside Dia(mm) | Cylinder Effective Area(c㎡) | Collapsed Height (mm) | Working Pressure(kg/c㎡) | Lock Nut Length(mm) |
|---|---|---|---|---|---|---|---|
| DLL-1006 | 100 | 150 | 190 | 149.22 | 405 | 700 | 50 |
| DLL-2006 | 200 | 150 | 260 | 294.52 | 450 | 700 | 65 |
| DLL-3006 | 300 | 150 | 310 | 428.63 | 490 | 700 | 70 |
| DLL-4006 | 400 | 150 | 360 | 582.57 | 520 | 700 | 80 |
| DLL-5006 | 500 | 150 | 400 | 716.28 | 550 | 700 | 85 |
| DLL-6006 | 600 | 150 | 440 | 857.65 | 605 | 700 | 95 |
| DLL-8006 | 800 | 150 | 510 | 1161.80 | 670 | 700 | 105 |
| DLL-10006 | 1000 | 150 | 565 | 1441.99 | 720 | 700 | 115 |
