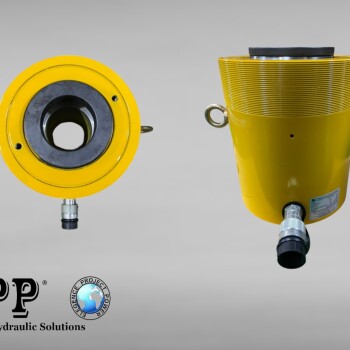

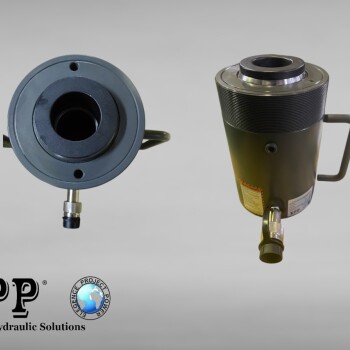

Single Acting Hollow Jacks
| Model | Cylinder Capacity (ton) | Stroke (mm) | Effective Area(cm2) | Oil Capacity(cm3) | Collap. Height (mm) | Out.Diam. (mm) | BoreDiam. (mm) | Hole Diam. (mm) |
|---|---|---|---|---|---|---|---|---|
|
SHC-120
|
12
|
8
|
17.9 | 14 |
55
|
69
|
54.1
|
19.6
|
| SHC-121 | 12 | 42 | 17.9 | 75 | 120 | 69 | 54.1 | 19.6 |
| SHC-1211 | 12 | 42 | 17.9 | 75 | 120 | 69 | 54.1 | 19.6 |
| SHC-123 | 12 | 76 | 17.9 | 136 | 184 | 69 | 54.1 | 19.6 |
| SHC-202 | 20 | 49 | 30.7 | 150 | 162 | 98 | 73.1 | 26.9 |
|
SHC-206
|
20
|
155
|
30.7 | 476 |
306
|
98
|
73.1
|
26.9
|
| SHC-302 | 30 | 64 | 46.6 | 298 | 178 | 114 | 88.9 | 33.3 |
|
SHC-306
|
30
|
155
|
46.6 | 722 |
330
|
114
|
88.9
|
33.3
|
|
SHC-603
|
60
|
75
|
61.8 | 705 |
250
|
160
|
130
|
54
|
|
SHC-1003
|
100
|
76
|
133 | 1011 |
254
|
212
|
165.1
|
79
|
