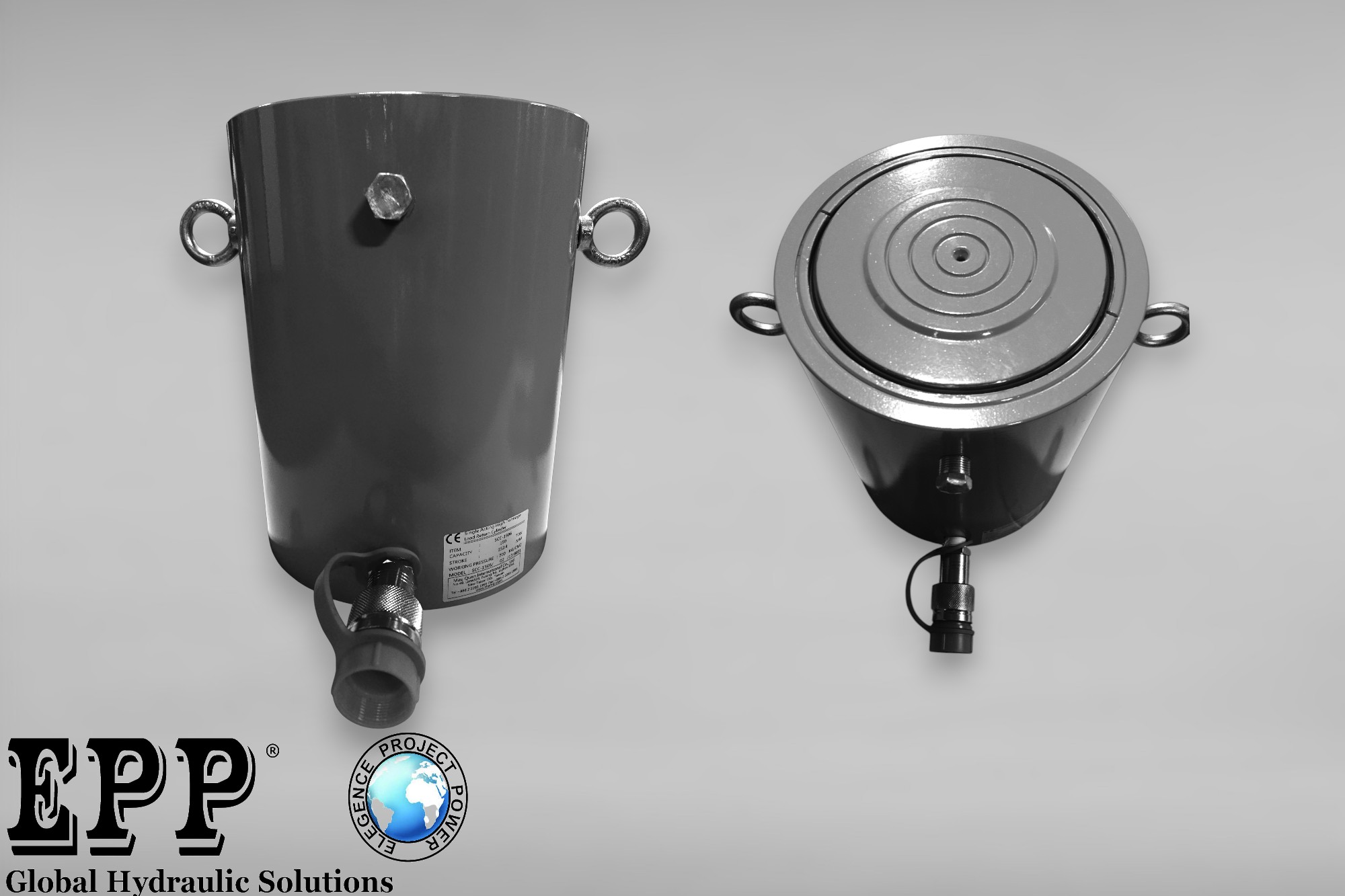

Single-Acting Jack

Model	Capacity (ton)	Stroke(mm)	Effective Area(cm3)	Collap. Height (mm)	Out. Diam. mm)	Plngr. Diam. (mm)	Bore Diam.(mm)
SGT-50	5	16	6.5	41	58	25.4	28.7
SGT-51	5	25	6.5	110	38	25.4	28.7
SGT-53	5	76	6.5	165	38	25.4	28.7
SGT-55	5	127	6.5	215	38	25.4	28.7
SGT-57	5	177	6.5	273	38	25.4	28.7
SGT-59	5	232	6.5	323	38	25.4	28.7
SGT-101	10	26	14.5	89	57	38.1	42.9
SGT-102	10	54	14.5	121	57	38.1	42.9
SGT-104	10	105	14.5	171	57	38.1	42.9
SGT-106	10	156	14.5	247	57	38.1	42.9
SGT-108	10	203	14.5	298	57	38.1	42.9
SGT-1010	10	257	14.5	349	57	38.1	42.9
SGT-1012	10	304	14.5	400	57	38.1	42.9
SGT-1014	10	356	14.5	450	57	38.1	42.9
SGT-151	15	25	20.3	124	69	41.4	50.8
SGT-152	15	51	20.3	149	69	41.4	50.8
SGT-154	15	101	20.3	200	69	41.4	50.8
SGT-156	15	152	20.3	271	69	41.4	50.8
SGT-158	15	203	20.3	322	69	41.4	50.8
SGT-1510	15	254	20.3	373	69	41.4	50.8
SGT-1512	15	305	20.3	423	69	41.4	50.8
SGT-1514	15	356	20.3	474	69	41.4	50.8
SGT-251	25	26	33.2	139	85	57.2	65
SGT-252	25	50	33.2	165	85	57.2	65
SGT-254	25	102	33.2	215	85	57.2	65
SGT-256	25	158	33.2	273	85	57.2	65
SGT-258	25	210	33.2	323	85	57.2	65
SGT-2510	25	261	33.2	374	85	57.2	65
SGT-2512	25	311	33.2	425	85	57.2	65
SGT-2514	25	362	33.2	476	85	57.2	65
SGT-308	30	209	42.1	387	101	57.2	73.2
SGT-502	50	51	71.2	176	127	79.5	95.2
SGT-504	50	101	71.2	227	127	79.5	95.2
SGT-506	50	159	71.2	282	127	79.5	95.2
SGT-5013	50	337	71.2	492	127	79.5	95.2
SGT-756	75	156	102.6	285	146	95.2	114.3
SGT-7513	75	333	102.6	492	146	95.2	114.3
SGT-1006	100	168	133.3	357	177	104.9	130.3
SGT-10010	100	260	133.3	449	177	104.9	130.3
