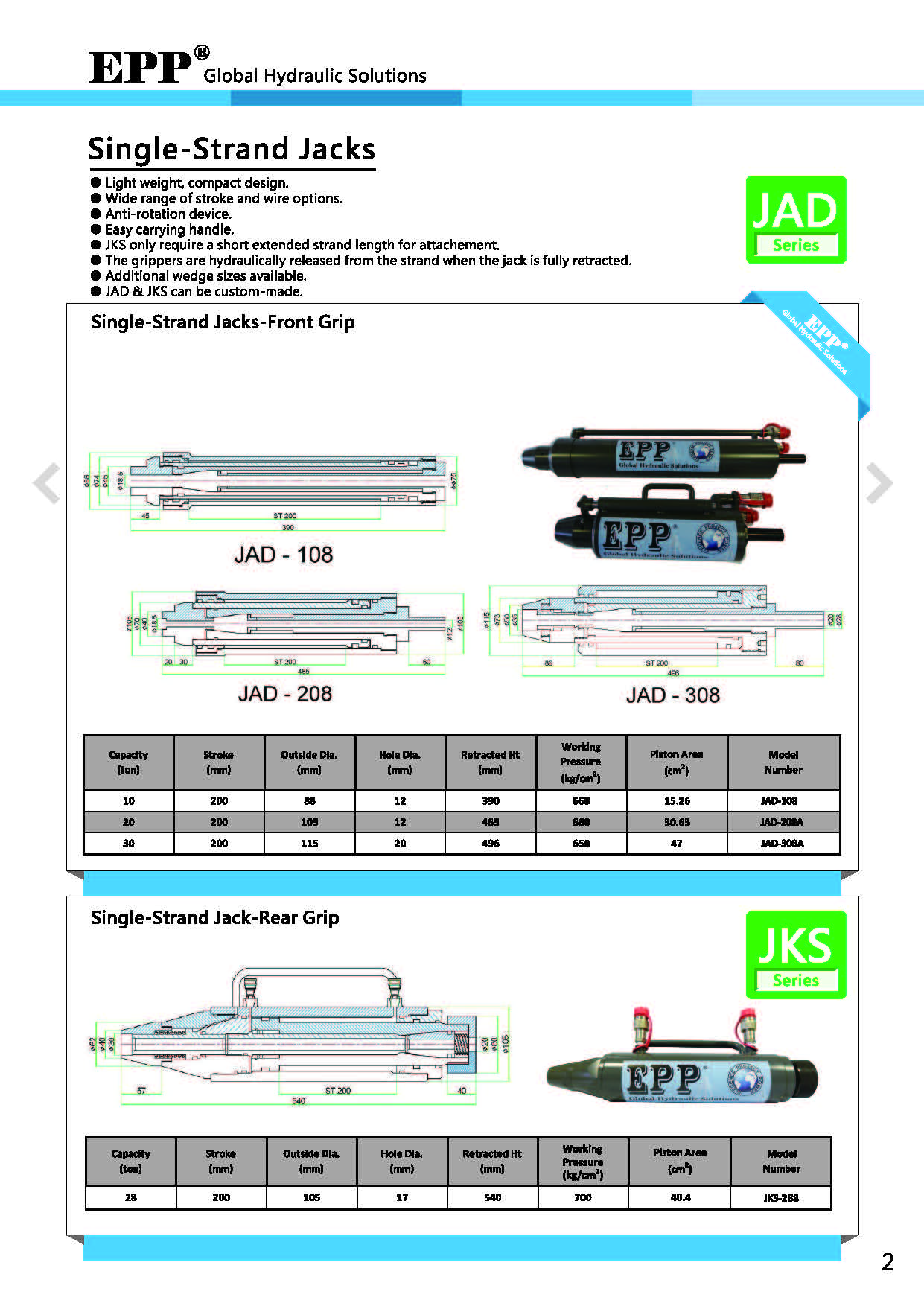

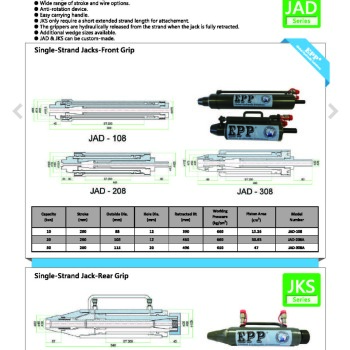

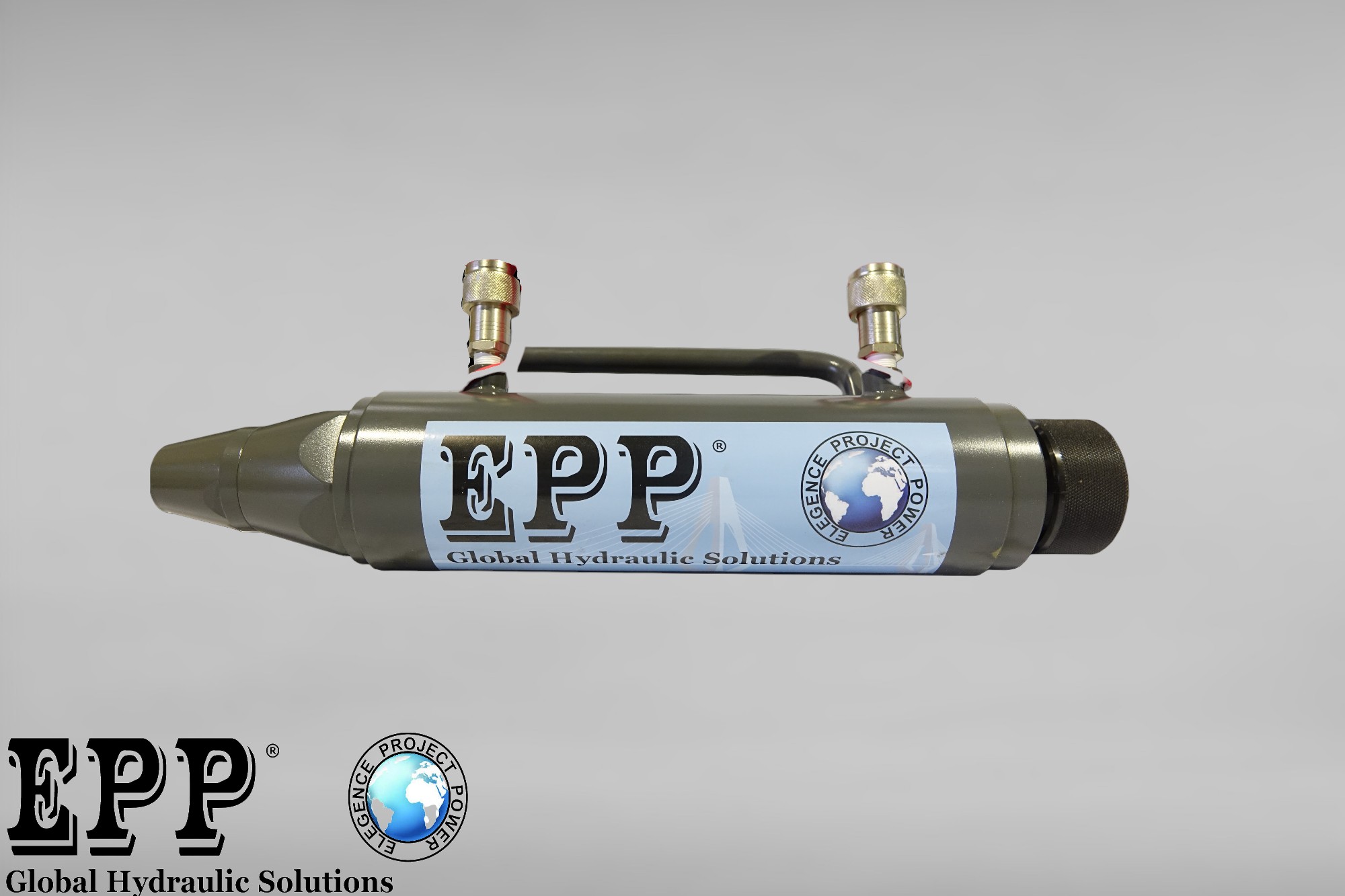

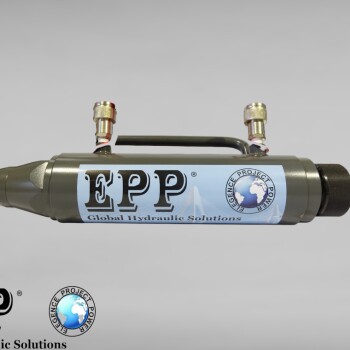

Single-Strand Pulling Jack (Rear-Pulling Type)

Documents & Certificates

JKSJKS
  • Lightweight and compact design

  • Wide range of stroke and strand options

  • Equipped with anti-rotation device

  • Easy to carry and operate

  • JKS requires only a short extended strand length for attachment

  • Grippers are hydraulically released from the strand when the jack is fully retracted

  • JAD & JKS models can be customised upon request

    • Model Capacity (ton) Stroke (mm) Outside Dia (mm) Hole Dia (mm) Closed Height(mm) Working Pressure(kg/c㎡) Piston Area (c㎡)
    JKS-288 28 200 105 17 540 700 40.4
