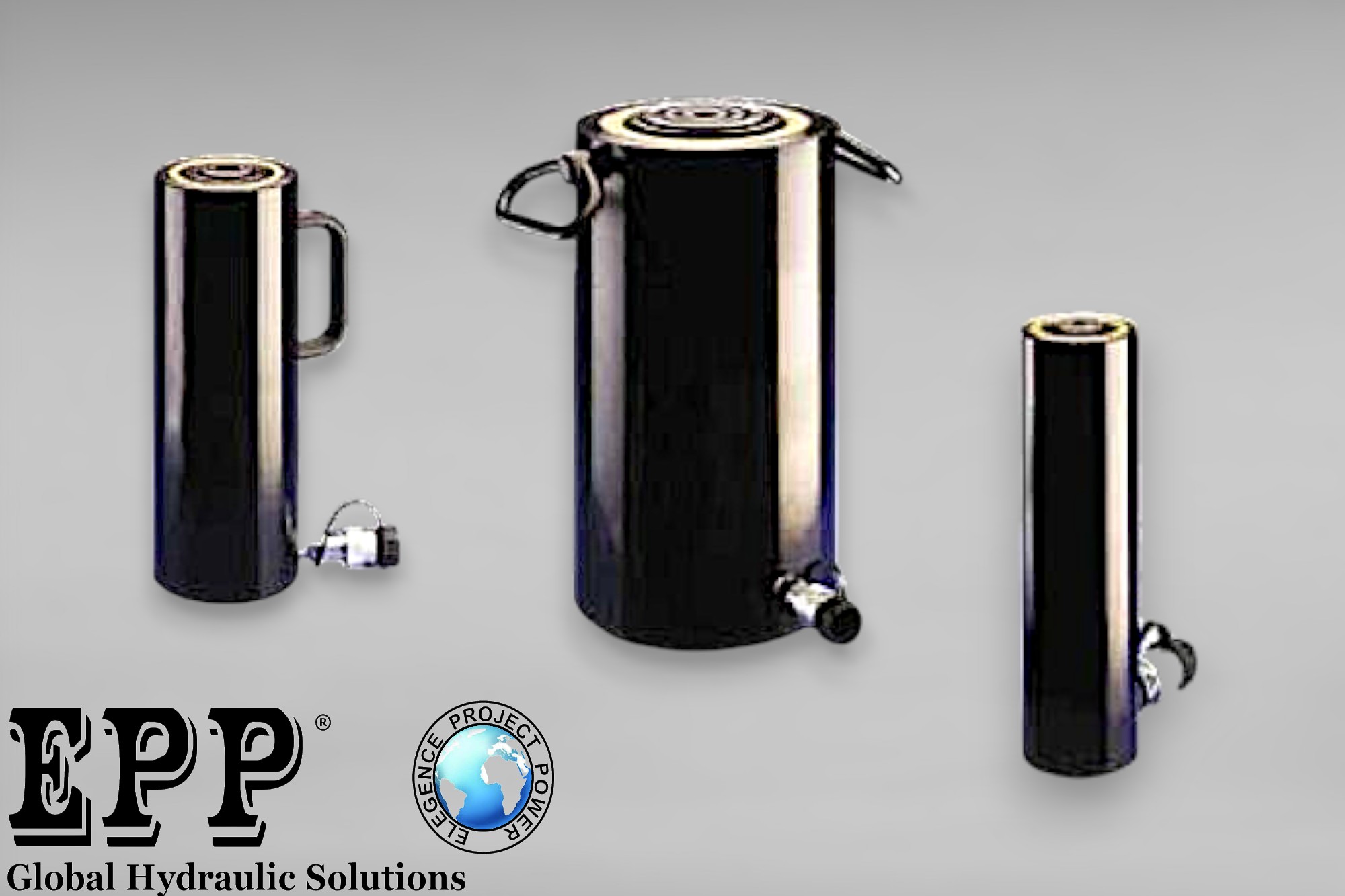

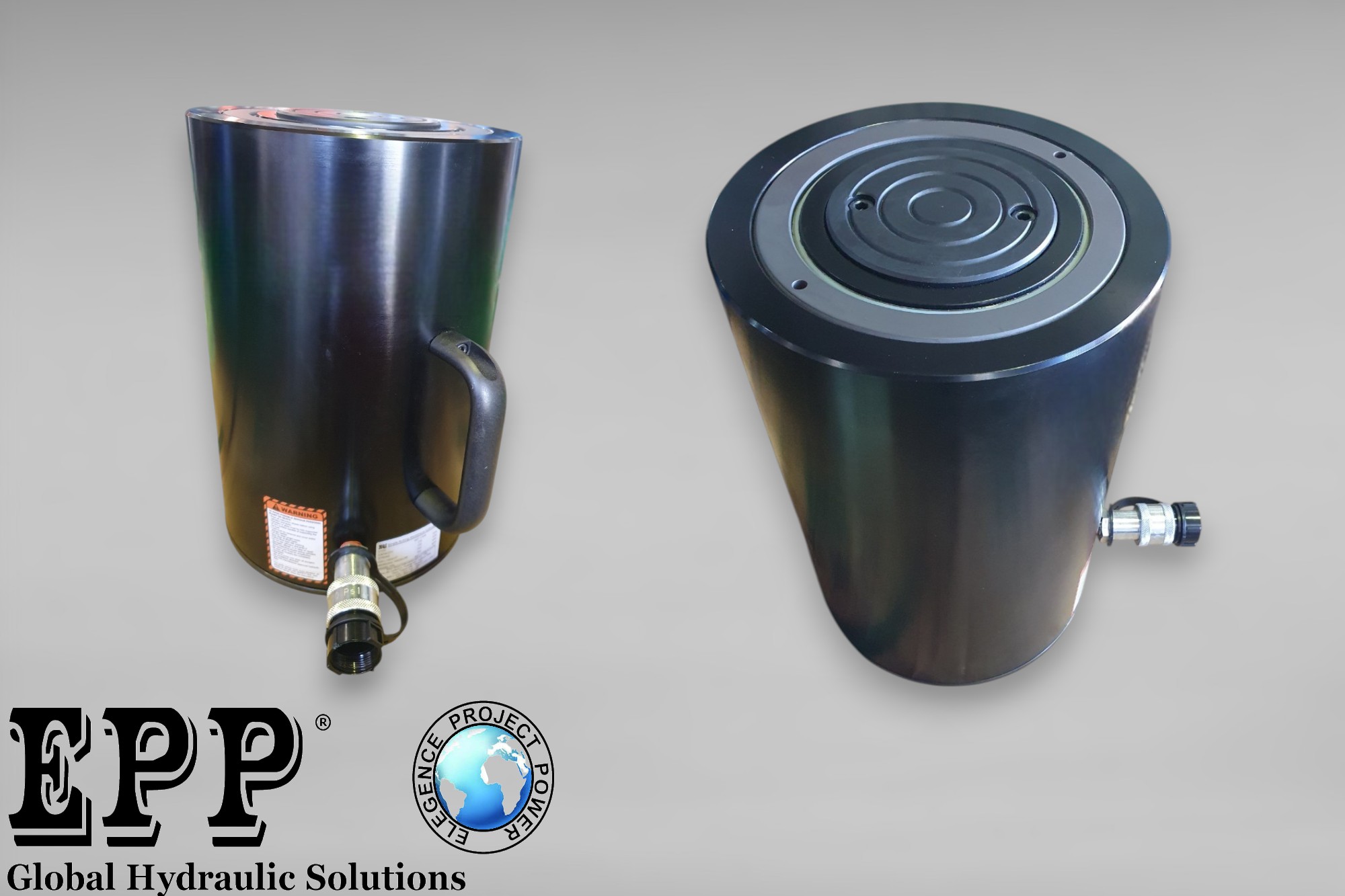

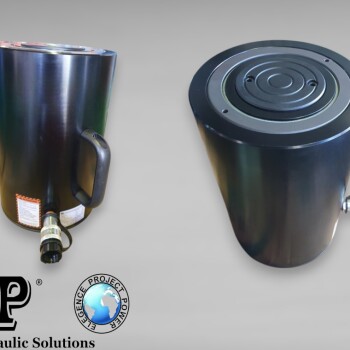

Single Acting Aluminum Cylinder
|
Model
|
Cylinder
Capacity
(ton)
|
Stroke
(mm)
|
Effective Area (cm2) |
Collap.
Height
(mm)
|
Outside
Dia.
(mm)
|
Cylinder
Bore Dia.
(mm)
|
Weight(kg)
|
| SAT-202 |
20
|
50
|
31.2 |
174
|
85
|
63
|
3.6
|
|
SAT-204
|
20
|
100 | 31.2 |
224
|
85
|
63
|
4.1
|
|
SAT-206
|
20
|
150
|
31.2 |
274
|
85
|
63
|
4.6
|
|
SAT-302
|
30
|
50
|
44.2 |
181
|
100
|
75
|
4.5
|
|
SAT-304
|
30
|
100
|
44.2 |
231
|
100
|
75
|
5.2
|
|
SAT-306
|
30
|
150
|
44.2 |
281
|
100
|
75
|
5.9
|
|
SAT-502
|
50
|
50
|
70.9 |
186
|
130
|
95
|
8.5
|
|
SAT-504
|
50
|
100
|
70.9 |
236
|
130
|
95
|
9.8
|
|
SAT-506
|
50
|
150
|
70.9 |
286
|
130
|
95
|
11.1
|
|
SAT-1004
|
100
|
100
|
143.1 |
271
|
180
|
135
|
19.6
|
|
SAT-1006
|
100
|
150
|
143.1 |
321
|
180
|
135
|
21.9
|
|
SAT-1008
|
100
|
200
|
143.1 |
371
|
180
|
135
|
24.2
|
|
SAT-1506
|
150
|
150
|
227 |
343
|
230
|
17.0
|
33.3
|
