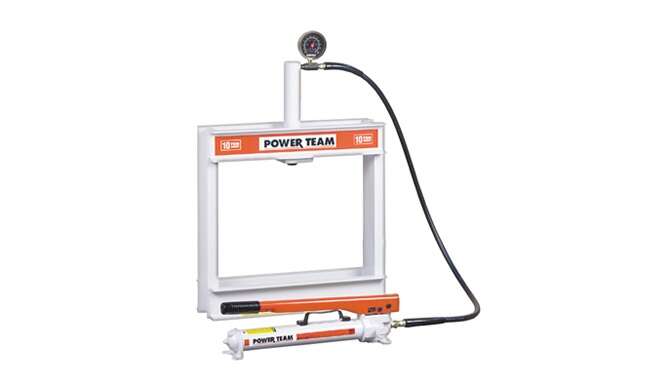

10 TON PRESSES

H-Frame

Ideal for small pressing jobs; repairing small motors, armatures, removing and installing gears, bearings, other press-fit parts.  Choices of power sources include: single-speed hand pump, electric/hydraulic or air/hydraulic.

Bench press has 15.38" x 16" work area.

Floor press bed height is adjustable from 5" to 41" with horizontal "daylight" of 21".

View Catalog - 10 Ton Presses - US ‖ UK ‖ DE ‖ ES ‖ FR

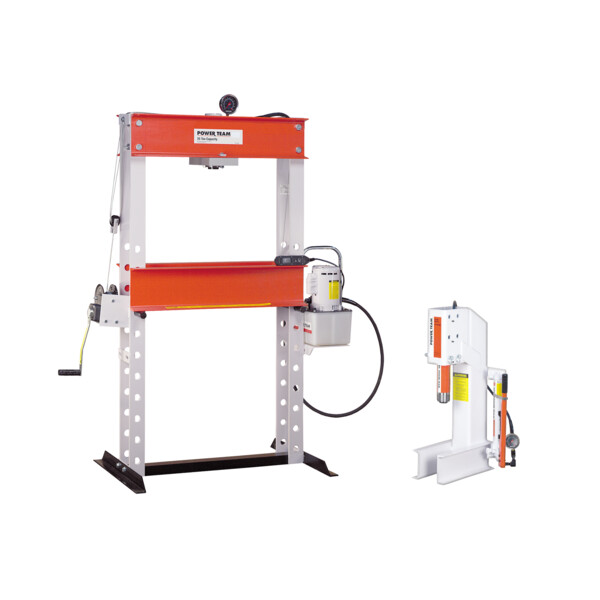

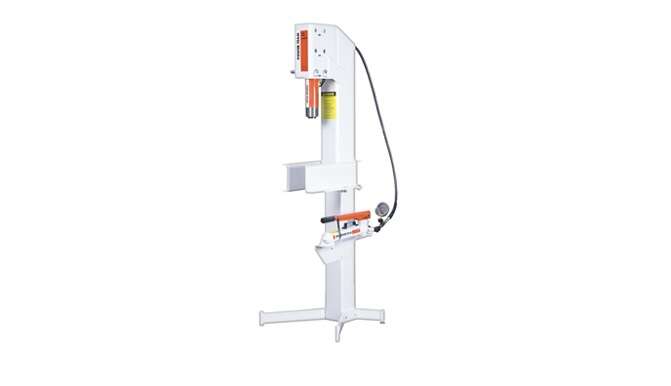

25 TON PRESSES

C Frame

• Open Throat® design makes loading and unloading of work easy.
• Bench mount requires less than 1.5 sq. feet (1.4 sq. meter) of space; on optional pedestal, only 4 sq. feet (4 sq. meter) of floor space is needed.
• Cylinder head adjusts to three convenient working positions, providing up to 20 1/4" (514 mm)of “daylight.”
• Can be bench mounted or on optional pedestal base.
• Hydraulic cylinder delivers a 6 1/4" (159 mm) stroke and is driven by a P59 two-speed hand pump.

View Catalog - 25 Ton Presses - US ‖ UK ‖ DE ‖ ES ‖ FR

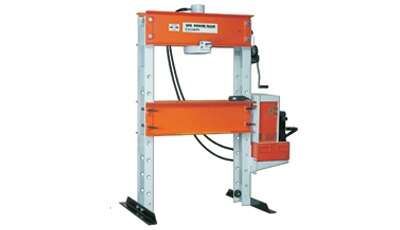

55 TON PRESSES

H Frame

• Full off-center pressing at full rated capacity across width of upper frame without buckling or bending.
• Maximum “daylight” is 42" x 36" (1.067 x 914 mm), making positioning of even bulky work pieces easy.
• Height of press bed is easily adjusted with winch; friction brake prevents bed from dropping and handle from spinning upon release.
• Presses with single-acting cylinder offer choice of 2-speed hand operated, electric/hydraulic, or air/hydraulic pump. Models with double-acting cylinder have an electric/hydraulic pump.
• Press models equipped with remote control enable operator to view work from all sides with fingertip control of cylinder piston travel.

View Catalog - 55 Ton Presses - US ‖ UK ‖ DE ‖ ES ‖ FR

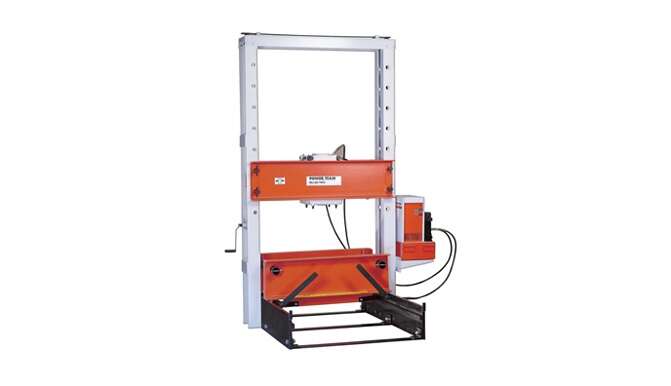

80 TON PRESSES

H Frame

• The original, patented Roll-Bed® extends out for easy loading and unloading with a crane or other lifting device, supporting loads up to 3,000 lbs.
• Movable workhead glides easily side-to-side for full off-center load capacity across width of upper frame.
• “Daylight” is 50 1/2" x 60" (1.283 x 1.524 mm) for 80 and 100-ton models; 51 1/4" x 64" (1.302 x 1.625 mm) on 150 and 200-ton presses.
• Fast approach of double-acting, 13 1/8" (334 mm) stroke cylinder is provided by PQ1204S “Quiet” electric/hydraulic pump with remote control hand switch. Operator can view work from all sides with fingertip control of cylinder piston travel.

Adjustable lower bed width – For secure balancing and centering of heavy jobs. Loosen adjusting bolts to adjust bed from 4" (102 mm) to more than 27" (686 mm). See dimension “H.”

Movable workhead – For off-center pressing jobs, workhead moves on bearings across upper bolster. Presses can be used at full capacity, regardless of where workhead is placed.

Lifting mechanism – Simply turn crank handle to raise or lower upper bolster. Screw mechanism raises or lowers both sides evenly (a heavy-duty 1/2" drill motor can replace handle for automatic adjustment). Four locking pins hold bolster in place for pressing.

Optional heavy-duty straightening fixtures – Make straightening jobs easy and accurate to within .004" (0.1 mm)! Rollers are ball bearing mounted and handle raises or lowers for easy turning of the work.

View Catalog - 80 Ton Presses - US ‖ UK ‖ DE ‖ ES ‖ FR

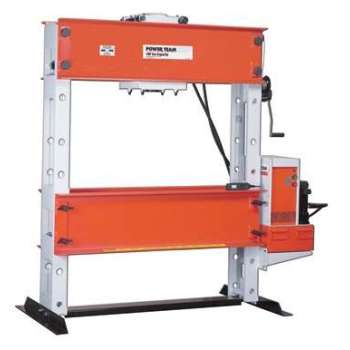

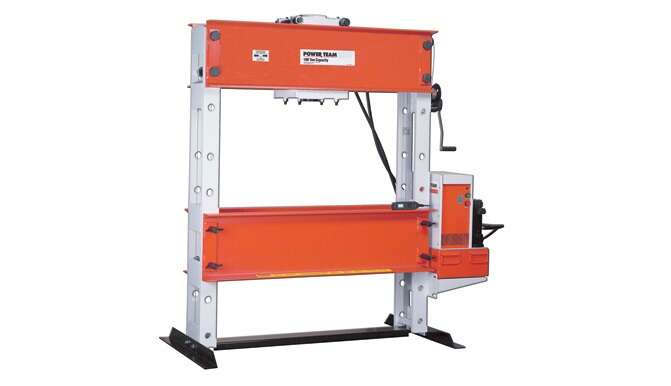

100 TON PRESSES

H Frame

• Cylinder workhead glides across upper frame on rollers, locks in place for off-center pressing jobs. May be used horizontally for special pressing applications with user supplied supports
• Press bed is raised and lowered by winch which locks in place for insertion of bed retaining pins.  Upper bolster can be lowered 8" (203 mm) for convenient positioning on repetitive jobs.
• Generous "daylight" of 42" x 50" (1.067 x 1.270 mm) accommodates bulky work pieces, uprights are placed for easy side entry of bars or shafts for straightening or bending
• Choice of single or double-acting cylinder. Hydraulic pump options include: 2-speed hand pump with large 2-gallon (7,6 liter) reservoir, PE172 electric/hydraulic pump or "PQ" series "Quiet" electric/hydraulic pump with low noise.

View Catalog - 100 Ton Presses - US ‖ UK ‖ DE ‖ ES ‖ FR

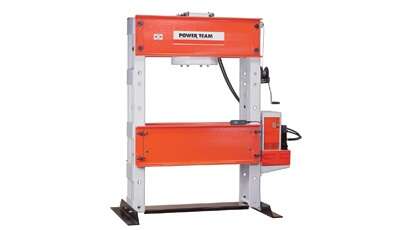

150 TON PRESSES

H Frame

• May be used horizontally for special pressing applications with user-supplied supports.
• Workhead has wide horizontal travel; rugged press frame withstands load of rated capacity across full width of frame.
• Winch mechanism provides easy positioning of press bed, locks in place for insertion of retaining pins.
• Upper bolster can be lowered 11" (279 mm) for convenient positioning on repetitive jobs.
• Uprights are placed for easy side entry of bars or shafts for straightening or bending.
• Fast cylinder approach is provided by PQ1204S “Quiet” electric/hydraulic pump.
• Remote control hand switch, enabling operator to view work from all sides with fingertip control of cylinder piston travel.

View Catalog - 150 Ton Presses - US ‖ UK ‖ DE ‖ ES ‖ FR

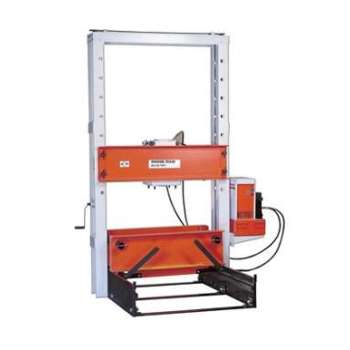

200 TON PRESSES

H Frame

• The original, patented Roll-Bed® design. Bed rolls out for easy loading and unloading with a crane or other lifting device, supporting loads up to 3,000 lbs.
• Movable workhead glides easily side-to-side for full off-center load capacity across width of upper frame.
• “Daylight” is 50 1/2" x 60" (1.283 x 1.524 mm) for 80 and 100-ton models; 51 1/4" x 64" (1.302 x 1.625 mm) on 150 and 200-ton presses.
• Fast approach of double-acting, 13 1/8" (334 mm) stroke cylinder is provided by PQ1204S “Quiet” electric/hydraulic pump with remote control hand switch. Operator can view work from all sides with fingertip control of cylinder piston travel.

Adjustable lower bed width – For secure balancing and centering of heavy jobs. Loosen adjusting bolts to adjust bed from 4" (102 mm) to more than 27" (686 mm). See dimension “H.”

Movable workhead – For off-center pressing jobs, workhead moves on bearings across upper bolster. Presses can be used at full capacity, regardless of where workhead is placed.

Lifting mechanism – Simply turn crank handle to raise or lower upper bolster. Screw mechanism raises or lowers both sides evenly (a heavy-duty 1/2" drill motor can replace handle for automatic adjustment). Four locking pins hold bolster in place for pressing.

Optional heavy-duty straightening fixtures – Make straightening jobs easy and accurate to within .004" (0.1 mm)! Rollers are ball bearing mounted and handle raises or lowers for easy turning of the work.

View Catalog - 200 Ton Presses - US ‖ UK ‖ DE ‖ ES ‖ FR

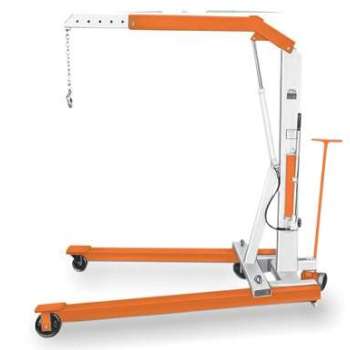

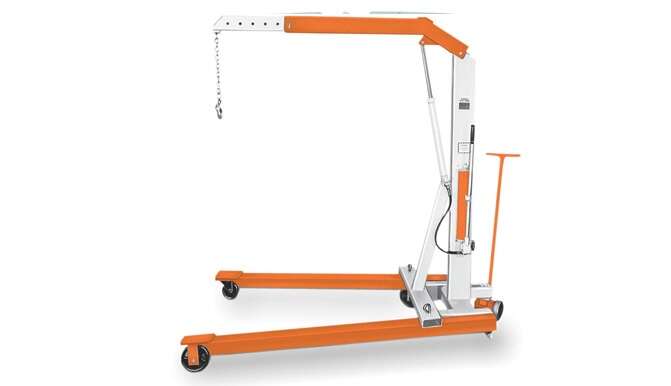

FC SERIES

Floor Cranes

• Adjustable legs spread to clear obstacles (telescoping boom for extra reach)
• Rugged construction, reliable hydraulics.
• Boom collapses completely and legs fold for compact space-saving fold-away storage
• 2-speed hydraulic hand pump provides fast boom travel and precise operator controlled descent.
• Roller bearing wheels and a steering dolly provide ease of mobility. Lifting chain is included.
• U.S. Patent No. 3,367,512

View Catalog - FC Series - US ‖ UK ‖ DE ‖ ES ‖ FR
