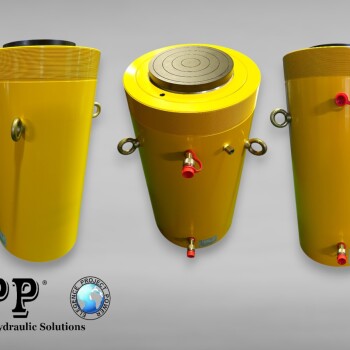

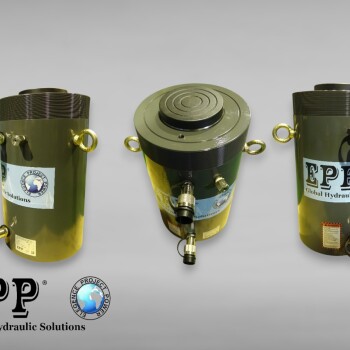

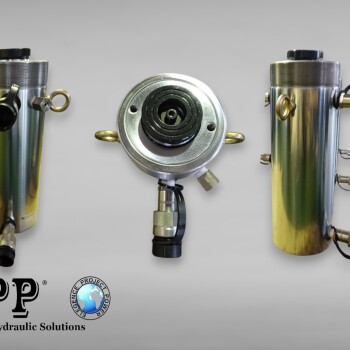

Double-Acting Solid Hydraulic Jack

Suitable for use in tough environments.

Removable hardened saddles protect the plunger during lifting and pressing operations.

Designed for operation in all positions.

Plunger wiper reduces contamination, extending cylinder life.

Double-acting design allows both push and pull forces.

Collar threads, plunger threads, and base mounting holes for easy installation.

ECR-400 coupler and dust cap included with all models.

Model	Capacity (ton)	Stroke (mm)	Outside Dia (mm)	Collapsed Height(mm)	Working Pressure(kg/c㎡)	Piston Area (c㎡)	Plunger(mm)
PRR-1010	10	255	73	409	700	14.5	35
PRR-1012	10	304	73	458	700	14.5	35
PRR-308	30	207	101	389	700	41.9	54
PRR-3014	30	368	101	550	700	41.9	54
PRR-556	55	157	127	331	700	70.9	80
PRR-5513	55	335	127	509	700	70.9	80
PRR-5520	55	511	127	733	700	70.9	80
PRR-756	75	155	146	348	700	103.8	95
PRR-7513	75	333	146	526	700	103.8	95
PRR-1006	100	167	177	357	700	132.7	95
PRR-10010	100	257	177	449	700	132.7	95
PRR-10013	100	333	177	524	700	132.7	95
PRR-10018	100	461	177	687	700	132.7	95
