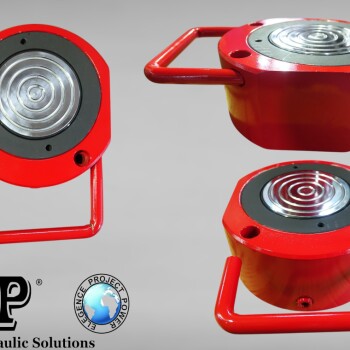

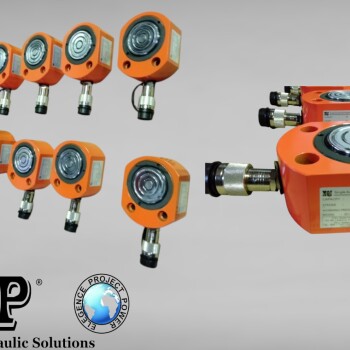

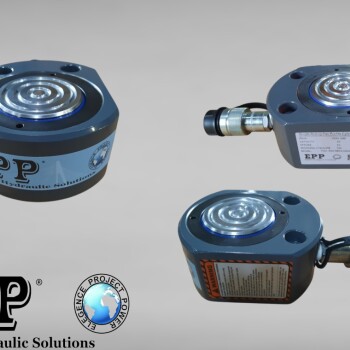

Low-profile Single-acting Hydraulic Jack
-
Lightweight, low-profile design for use in confined spaces.
-
Grooved plunger end with threaded holes for mounting tilt saddles.
-
ECR-400 coupler and dust cap included with all models.
-
Plunger wiper reduces contamination, extending cylinder life.
| Model | Capacity (ton) | Stroke (mm) | Outside Dia (mm) | Collapsed Height(mm) | Working Pressure(kg/c㎡) | Piston Area (c㎡) | Plunger(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| PSM-50 | 5 | 6 | 58x41 | 32 | 700 | 6.5 | 25.4 | 1.0 |
| PSM-100 | 10 | 11 | 82x55 | 43 | 700 | 14.5 | 38.1 | 1.4 |
| PSM-200 | 20 | 11 | 101x76 | 51 | 700 | 28.7 | 50.8 | 3.1 |
| PSM-300 | 30 | 13 | 117x95 | 58 | 700 | 42.1 | 63.4 | 4.5 |
| PSM-500 | 45 | 13 | 140x114 | 66 | 700 | 62.1 | 69.8 | 6.8 |
| PSM-750 | 75 | 16 | 165x139 | 79 | 700 | 102.6 | 82.6 | 11.3 |
| PSM-1000 | 90 | 16 | 178x153 | 85 | 700 | 126.7 | 92.2 | 14.5 |
| PSM-1500 | 150 | 16 | 215x190 | 100 | 700 | 198.1 | 114.3 | 26.3 |
