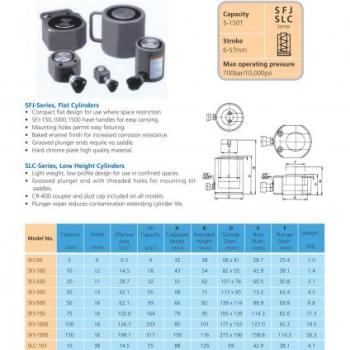

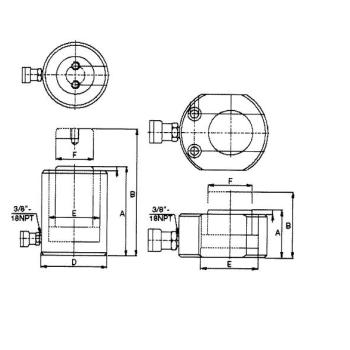

Single Acting Flat Height Cylinder
|
Model
|
Cylinder
Capacity
(ton)
|
Stroke
(mm)
|
Effective Area(cm2) |
Collap.
Height
(mm)
|
Outside
Dia.
(mm)
|
Cylinder
Bore Dia.
(mm)
|
Weight(kg)
|
| SFJ-50 |
50
|
6
|
6.5 | 32 | 58x41 |
28.7
|
1.0
|
| SFJ-100 |
10
|
12 |
14.5 | 43 | 85x55 |
42.9
|
1.4
|
| SFJ-200 |
20
|
11
|
28.7 | 51 | 101x76 |
60.5
|
3.1
|
| SFJ-300 | 30 | 13 | 42.1 | 58 | 117x95 | 73.2 | 4.5 |
| SFJ-500 | 50 | 16 | 62.1 | 66 | 139x114 | 88.9 | 6.8 |
| SFJ-750 | 75 | 16 | 102.6 | 79 | 165x139 | 114.3 | 11.3 |
| SFJ-1000 | 100 | 16 | 126.7 | 85 | 177x152 | 127.0 | 14.5 |
| SFJ-1500 | 150 | 16 | 198.1 | 100 | 215x190 | 158.8 | 26.3 |
