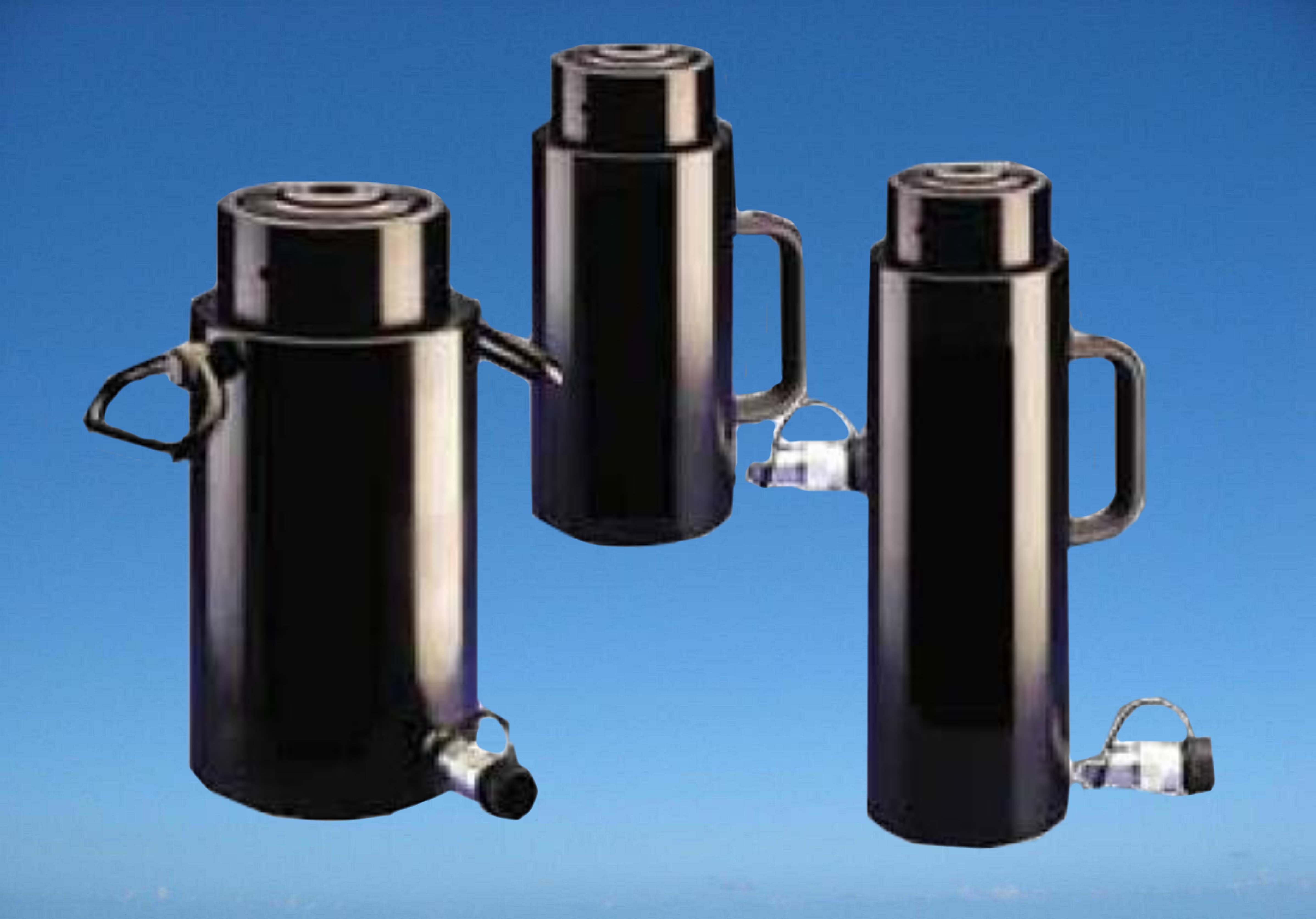

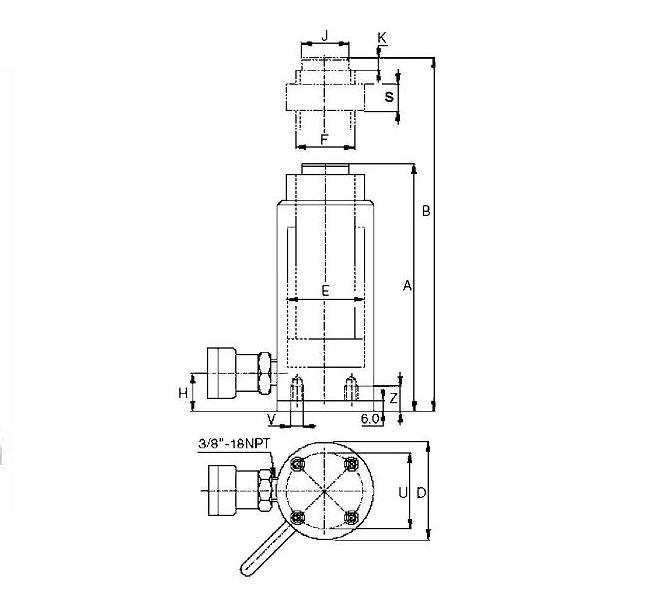

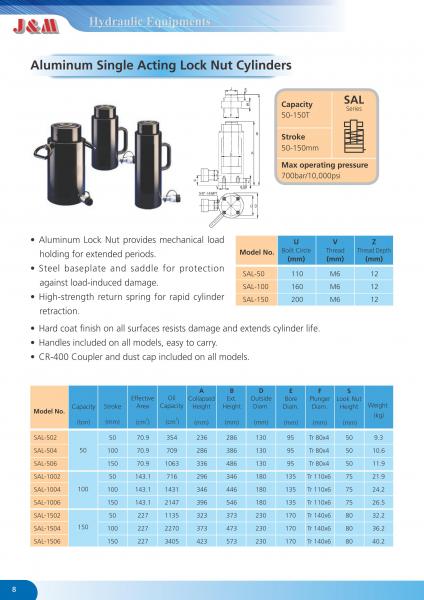

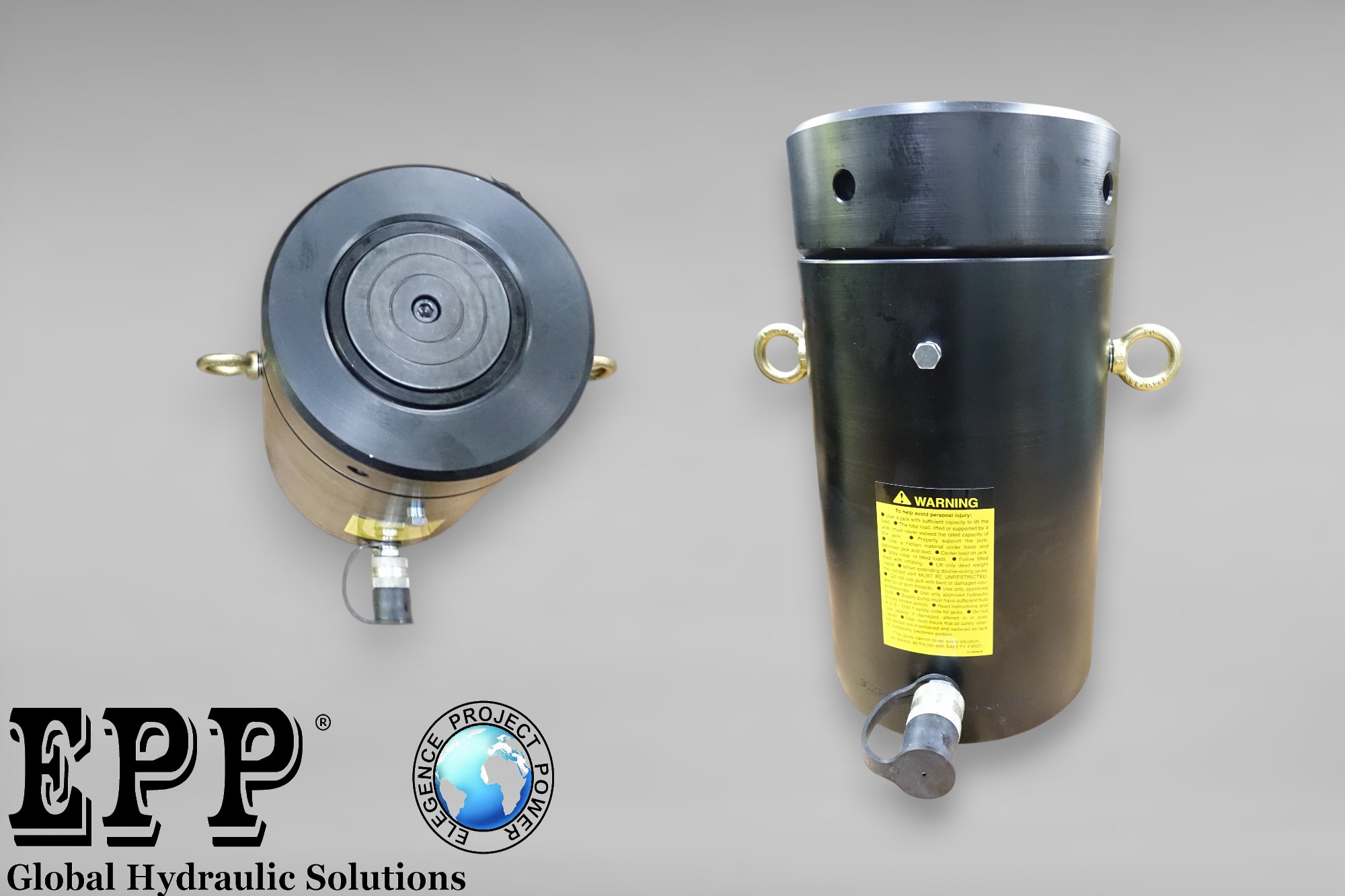

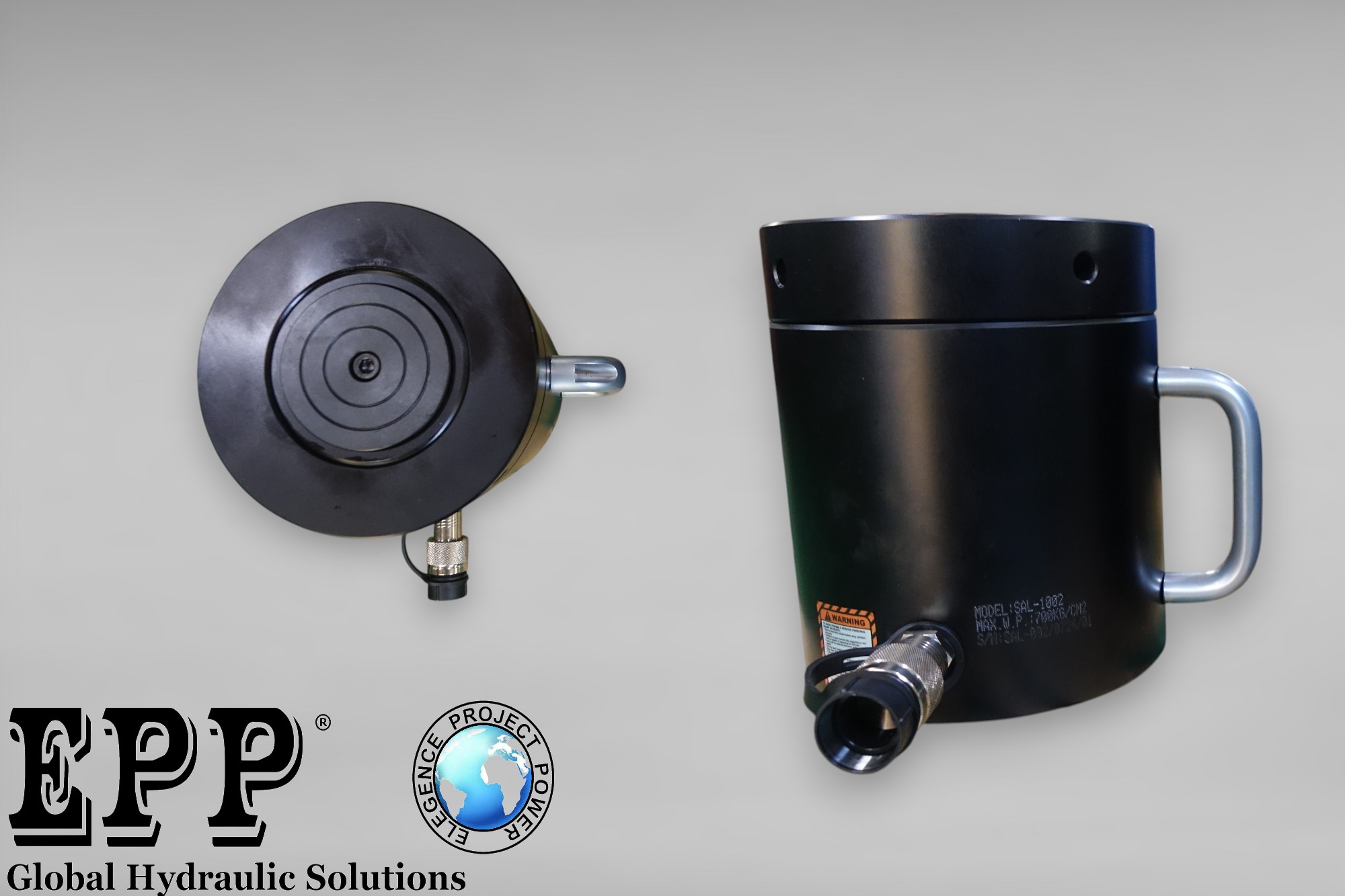

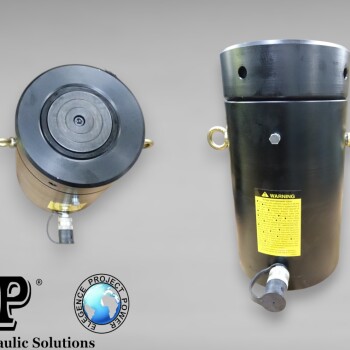

Aluminum Single Acting Lock Nut Cylinder
|
Model
|
Cylinder
Capacity
(ton)
|
Stroke
(mm)
|
Effective Area (cm2) |
Collap.
Height
(mm)
|
Outside
Dia.
(mm)
|
Cylinder
Bore Dia.
(mm)
|
Weight(kg)
|
| SAL-502 |
50
|
50
|
70.9 |
236
|
130
|
95
|
9.3
|
|
SAL-504
|
50
|
100 | 70.9 |
286
|
130
|
95
|
10.6
|
|
SAL-506
|
50
|
150
|
70.9 |
336
|
130
|
95
|
11.9
|
|
SAL-1002
|
100
|
50
|
143.1 |
296
|
180
|
135
|
21.9
|
|
SAL-1004
|
100
|
100
|
143.1 |
346
|
180
|
135
|
24.2
|
|
SAL-1006
|
100
|
150
|
143.1 |
396
|
180
|
135
|
26.5
|
|
SAL-1502
|
150
|
50
|
227 |
323
|
230
|
170
|
32.2
|
| SAL-1504 | 150 | 100 | 227 | 373 | 230 | 170 | 36.2 |
| SAL-1506 | 150 | 150 | 227 | 423 | 230 | 170 | 40.2 |
