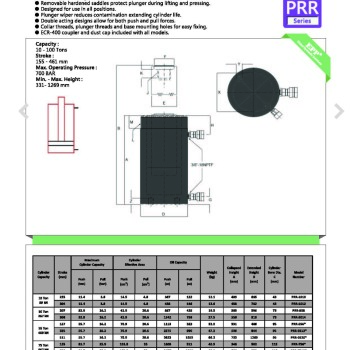

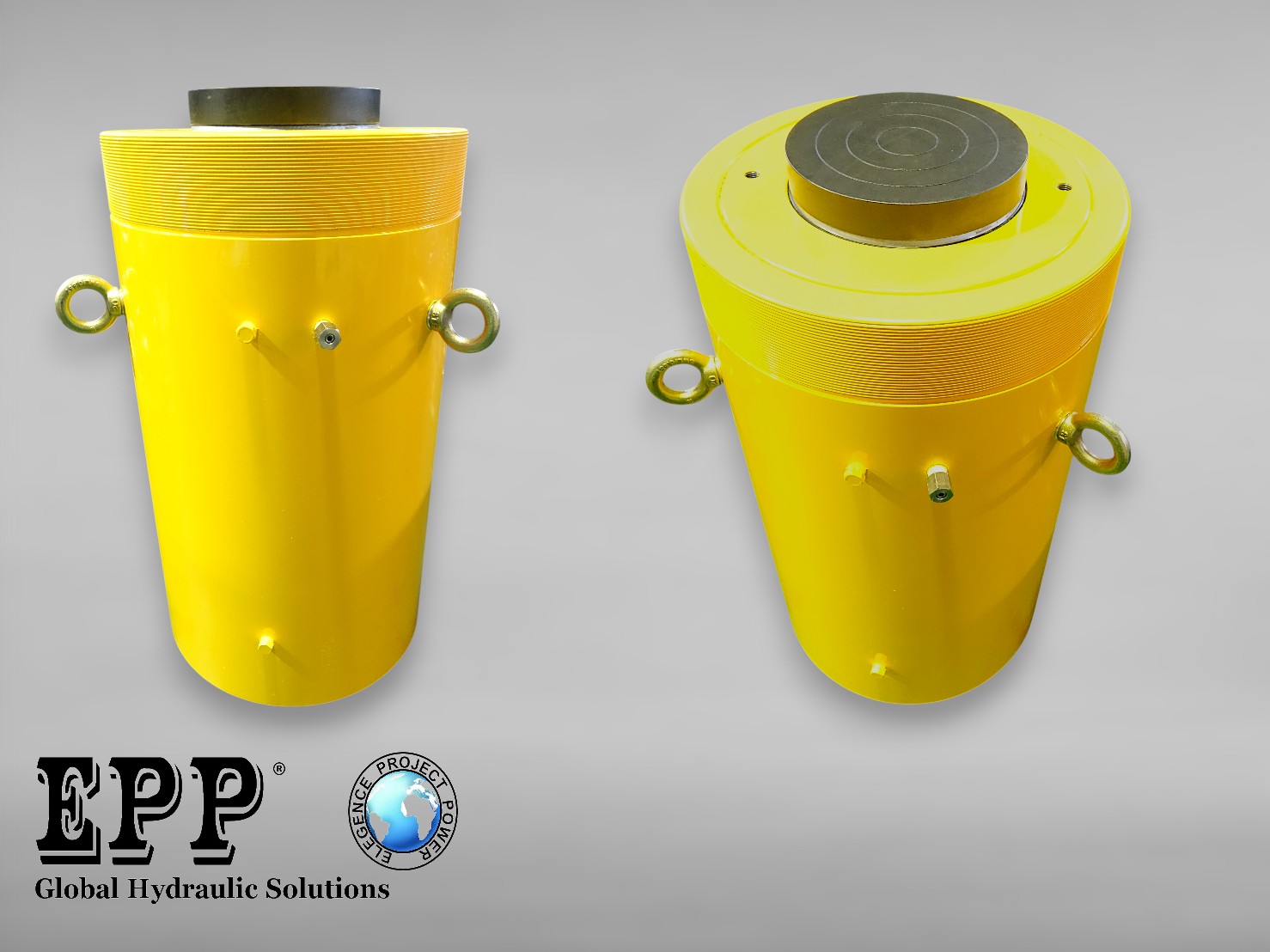

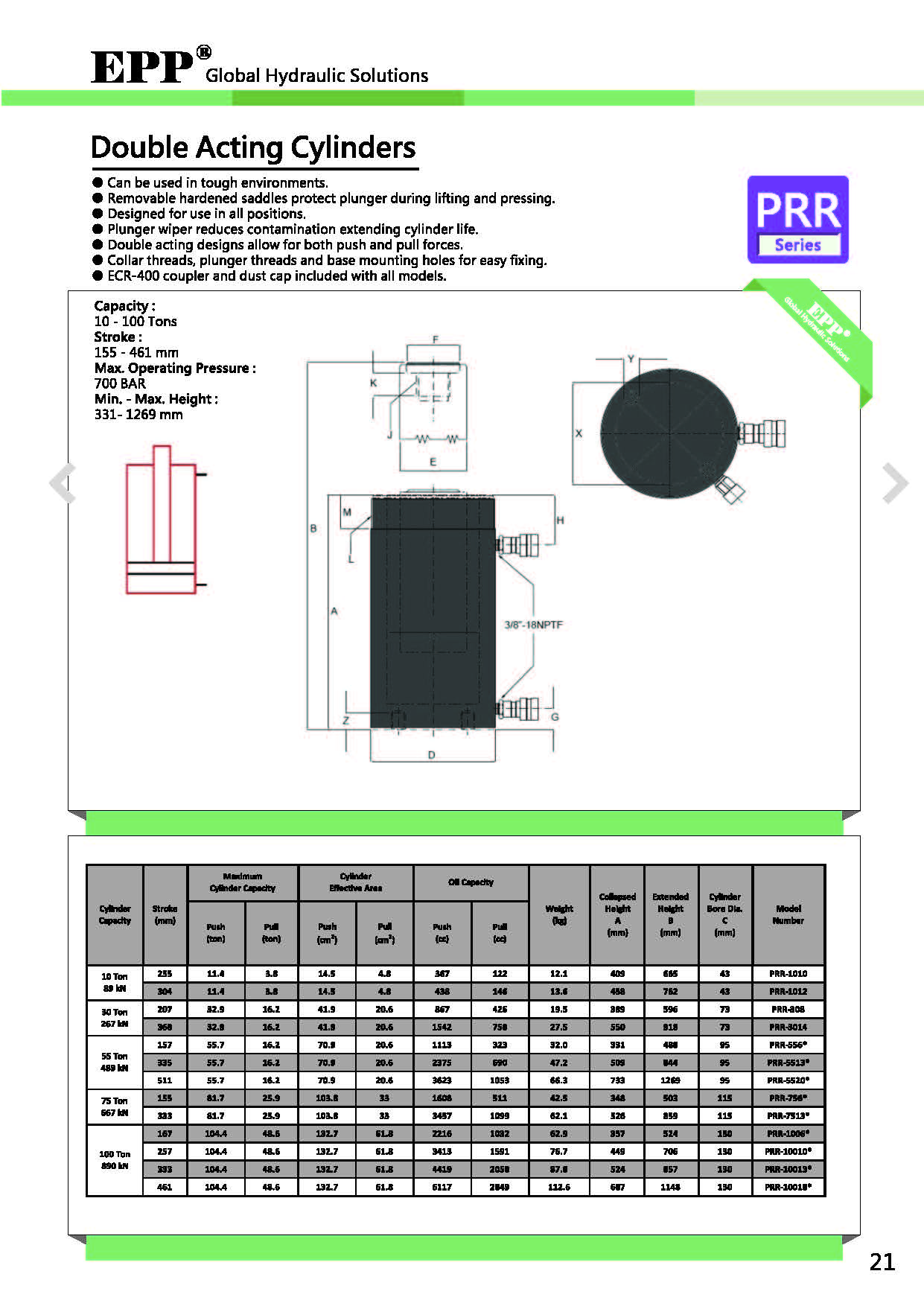

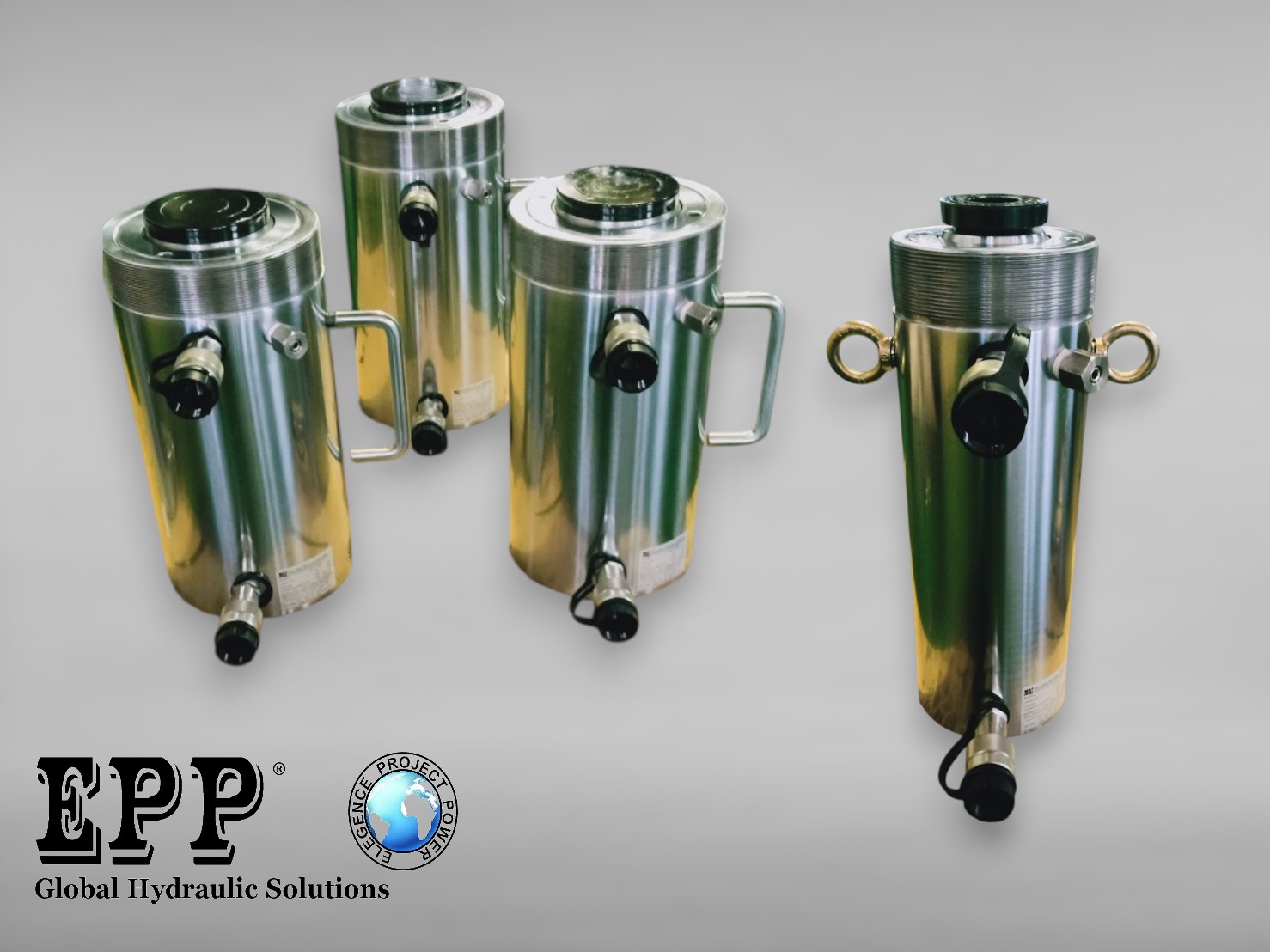

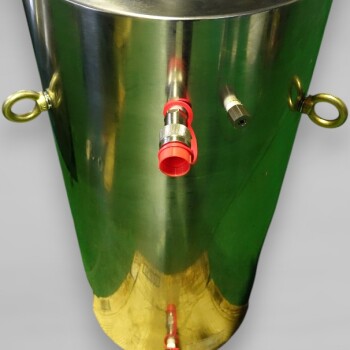

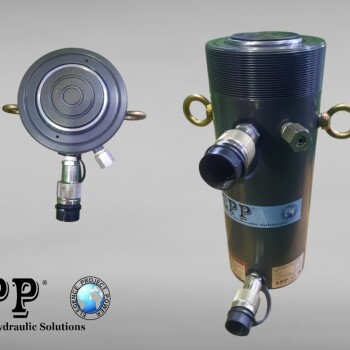

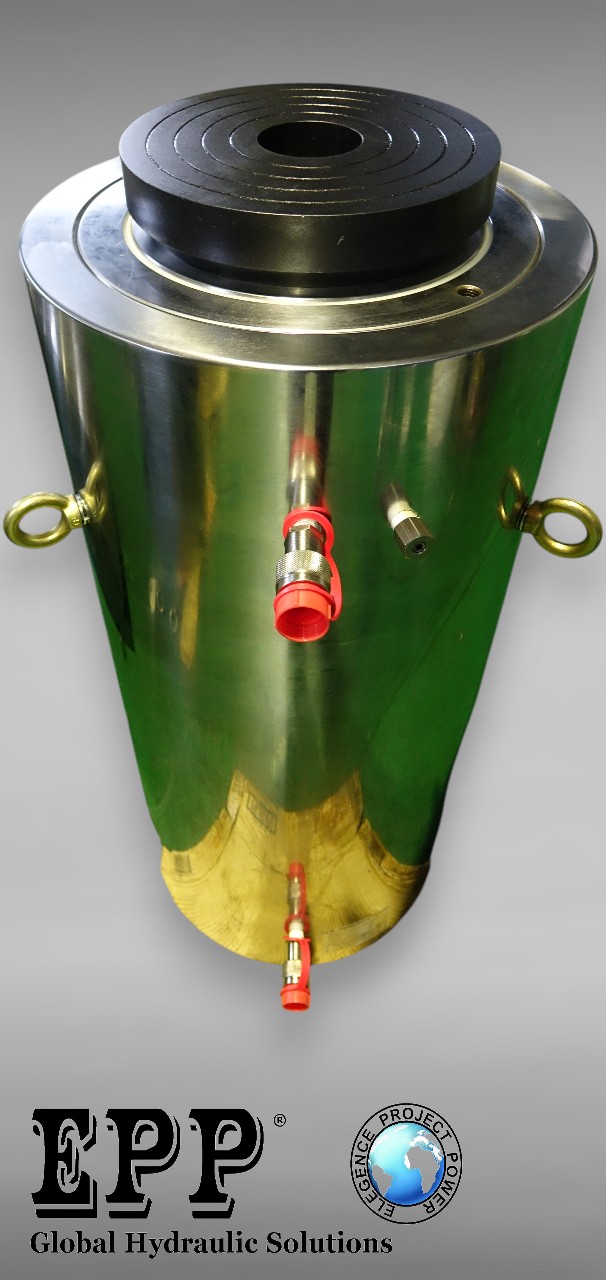

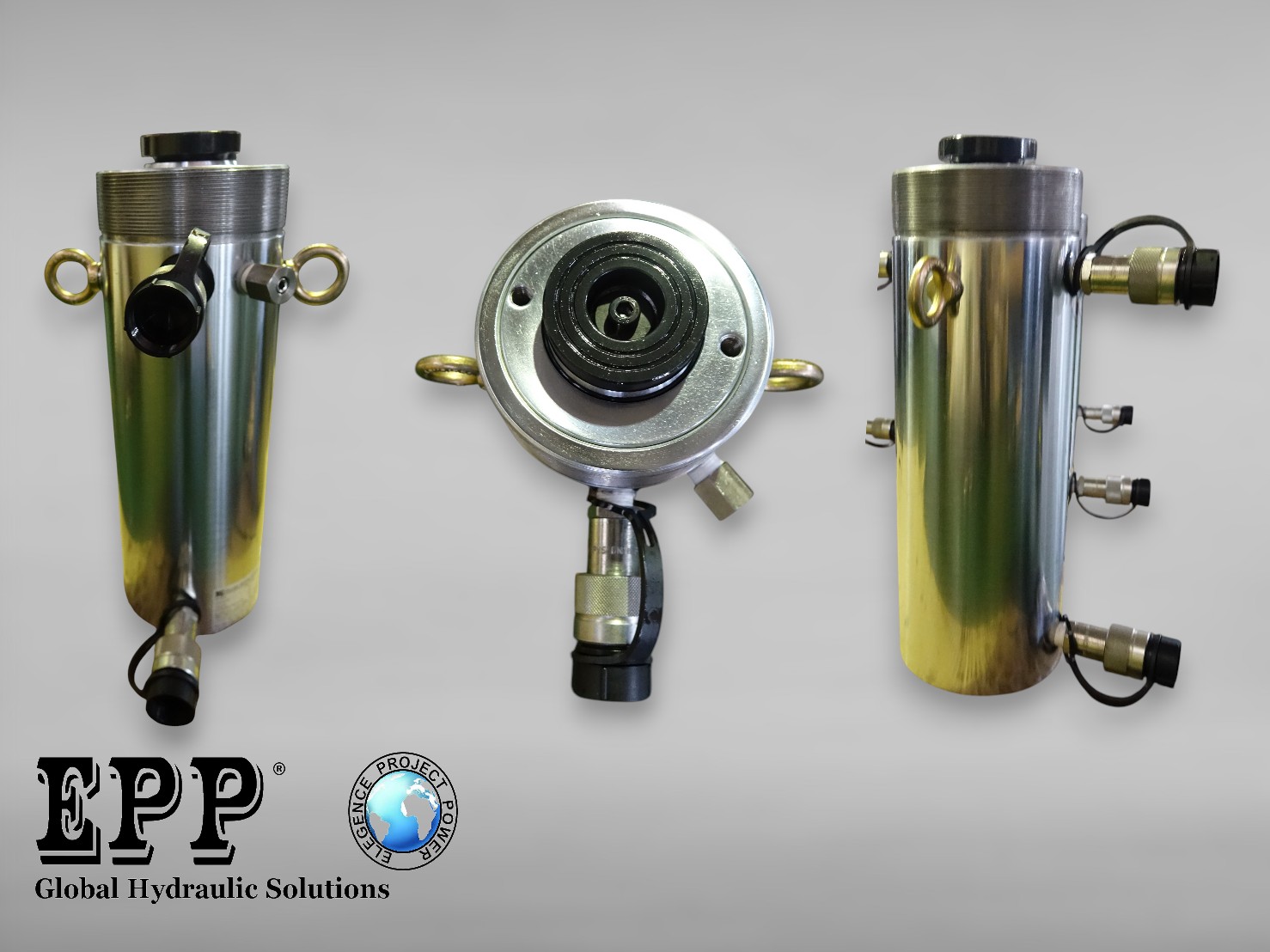

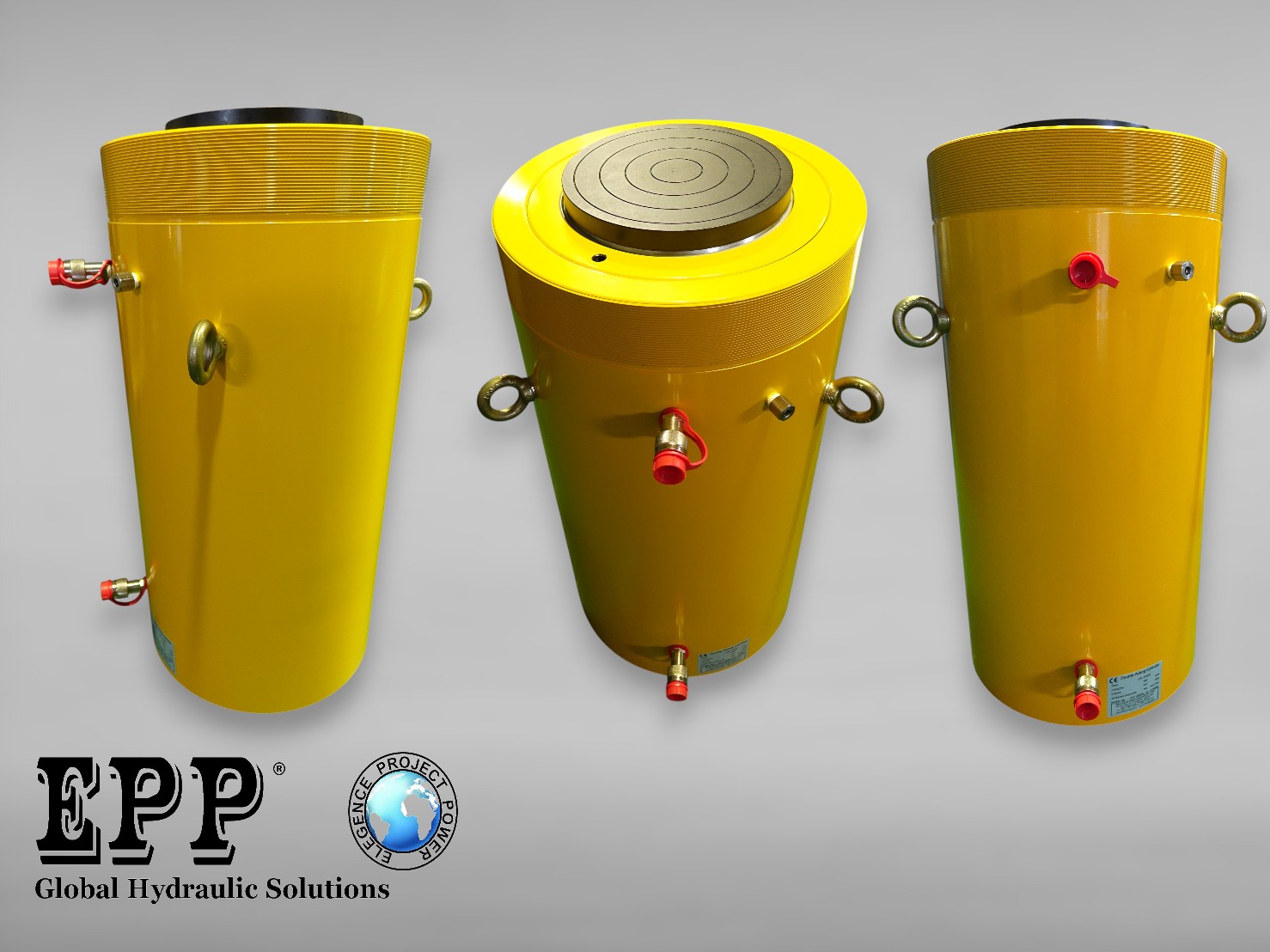

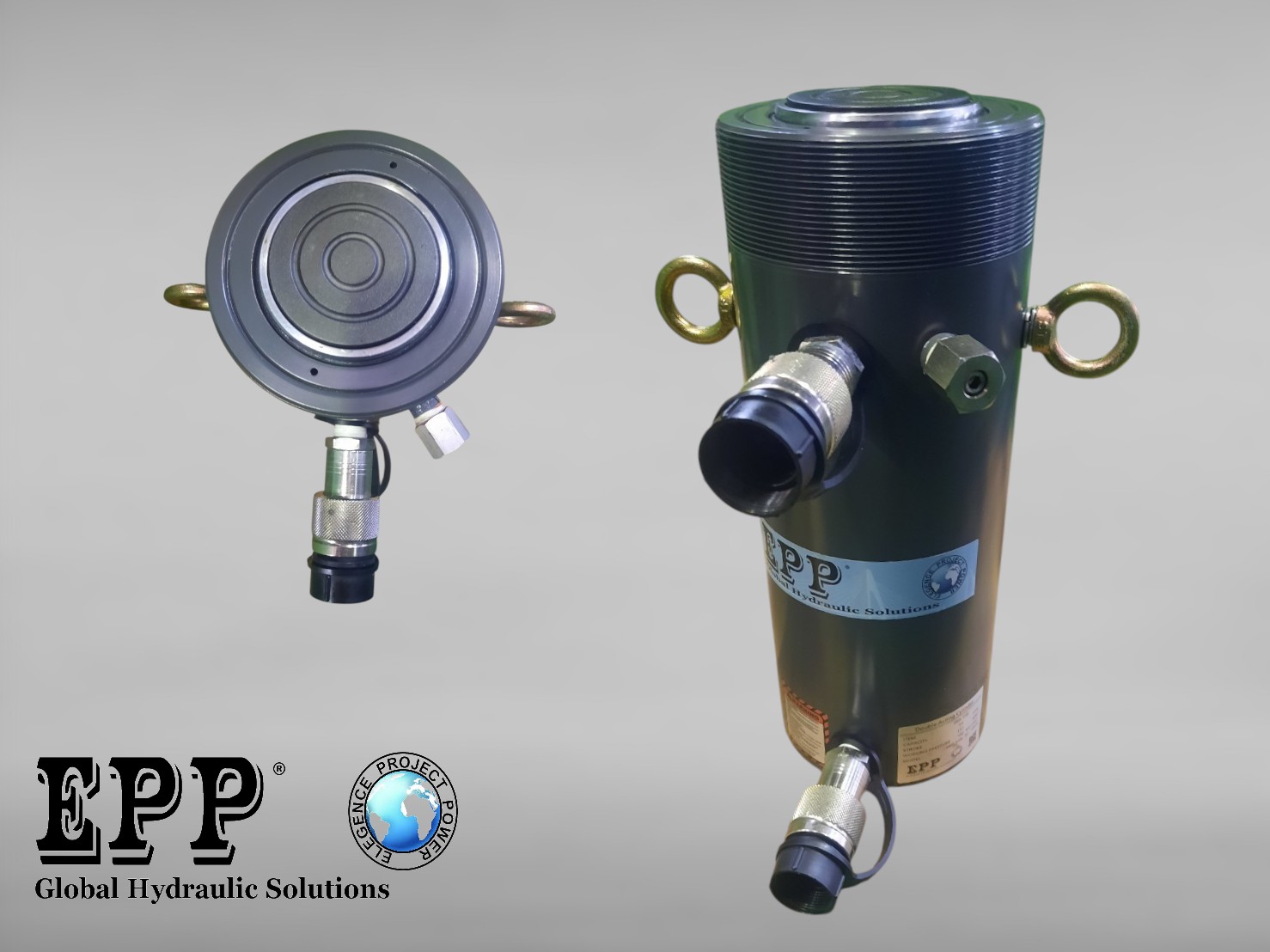

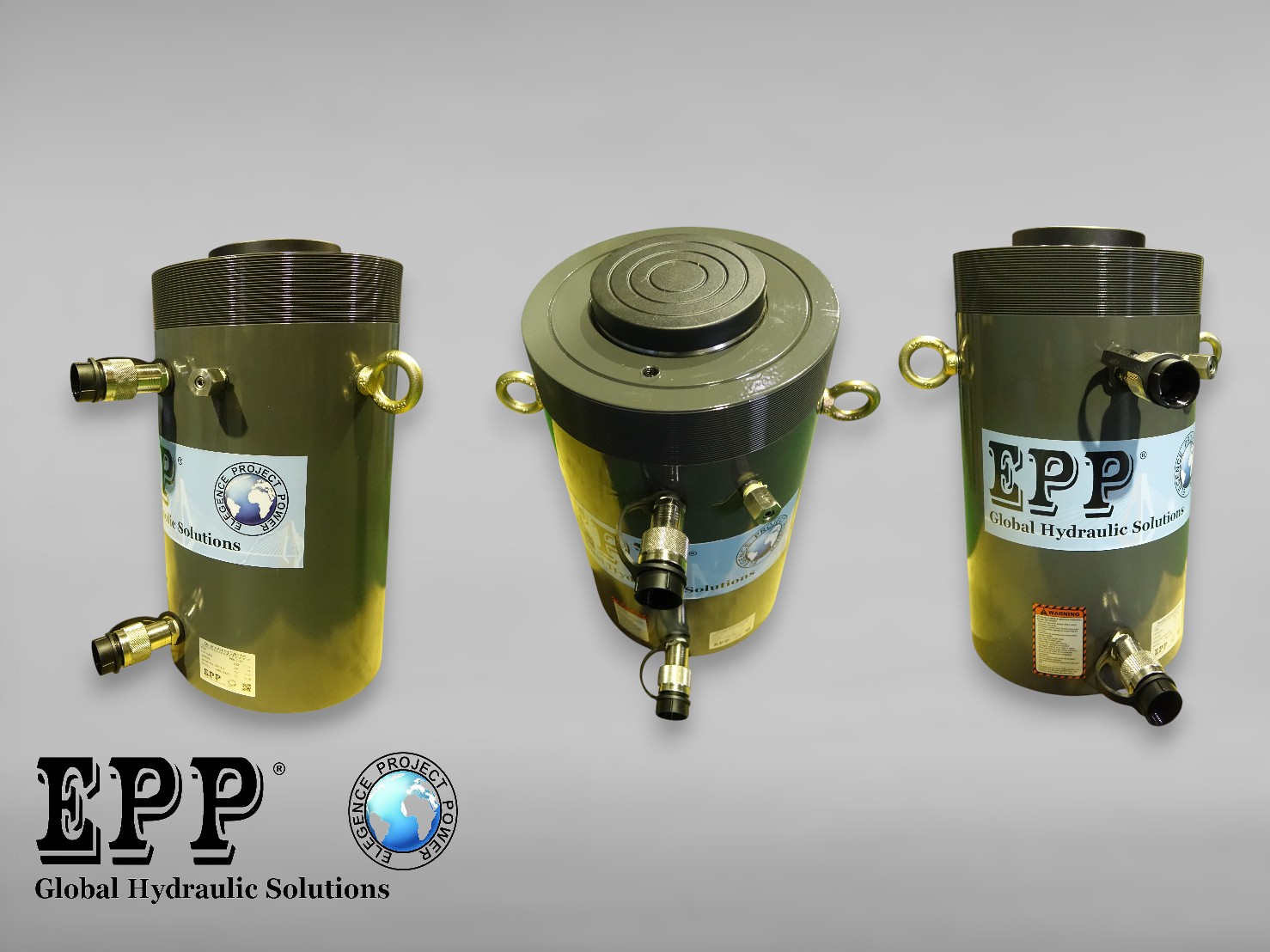

Double-Acting Solid Hydraulic Jack

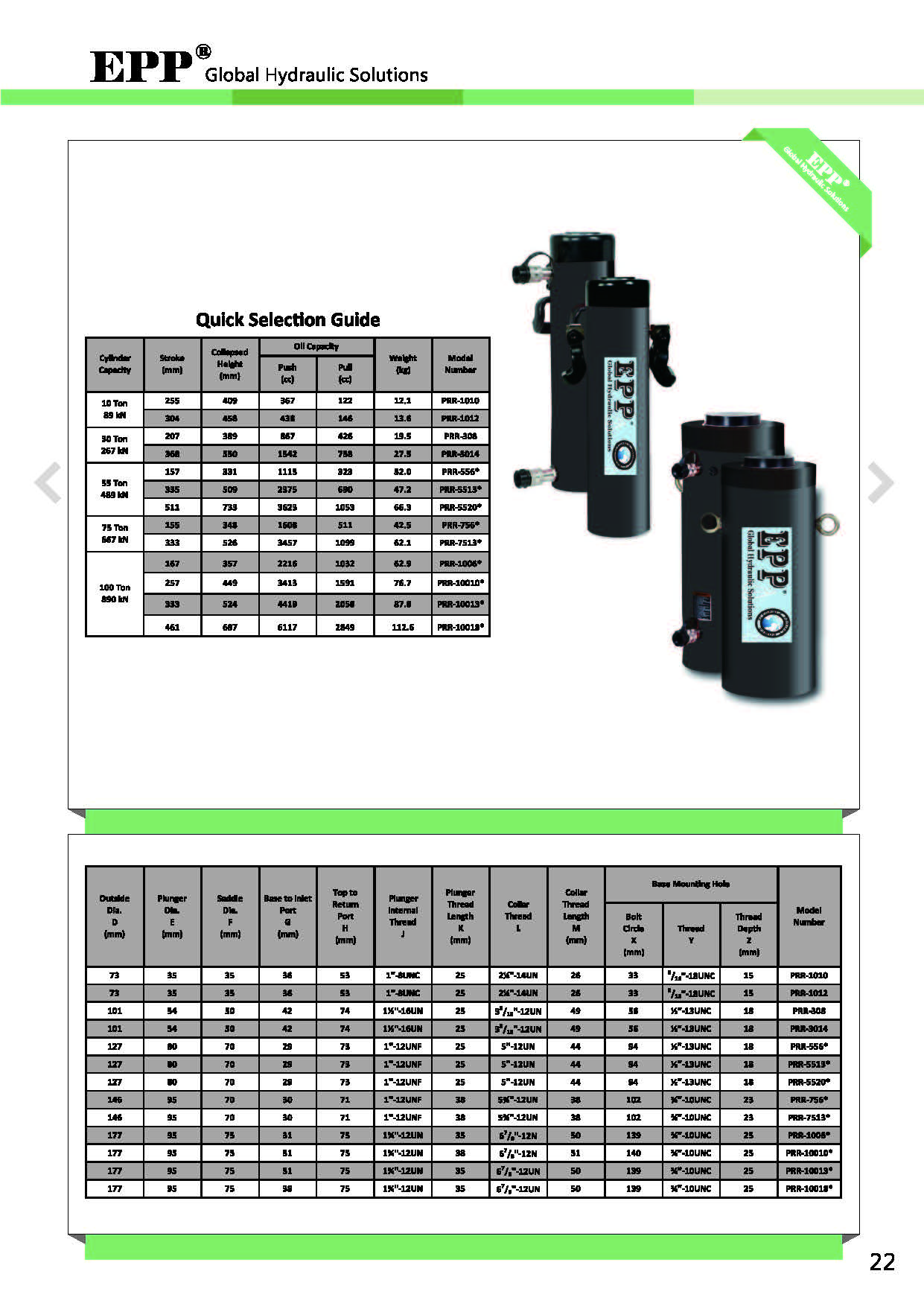

Model	Capacity (ton)	Stroke (mm)	Outside Dia (mm)	Collapsed Height(mm)	Working Pressure(kg/c㎡)	Piston Area (c㎡)	Plunger(mm)
PRR-1010	10	255	73	409	700	14.5	35
PRR-1012	10	304	73	458	700	14.5	35
PRR-308	30	207	101	389	700	41.9	54
PRR-3014	30	368	101	550	700	41.9	54
PRR-556	55	157	127	331	700	70.9	80
PRR-5513	55	335	127	509	700	70.9	80
PRR-5520	55	511	127	733	700	70.9	80
PRR-756	75	155	146	348	700	103.8	95
PRR-7513	75	333	146	526	700	103.8	95
PRR-1006	100	167	177	357	700	132.7	95
PRR-10010	100	257	177	449	700	132.7	95
PRR-10013	100	333	177	524	700	132.7	95
PRR-10018	100	461	177	687	700	132.7	95

PRR
