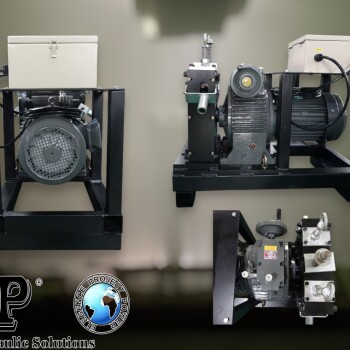

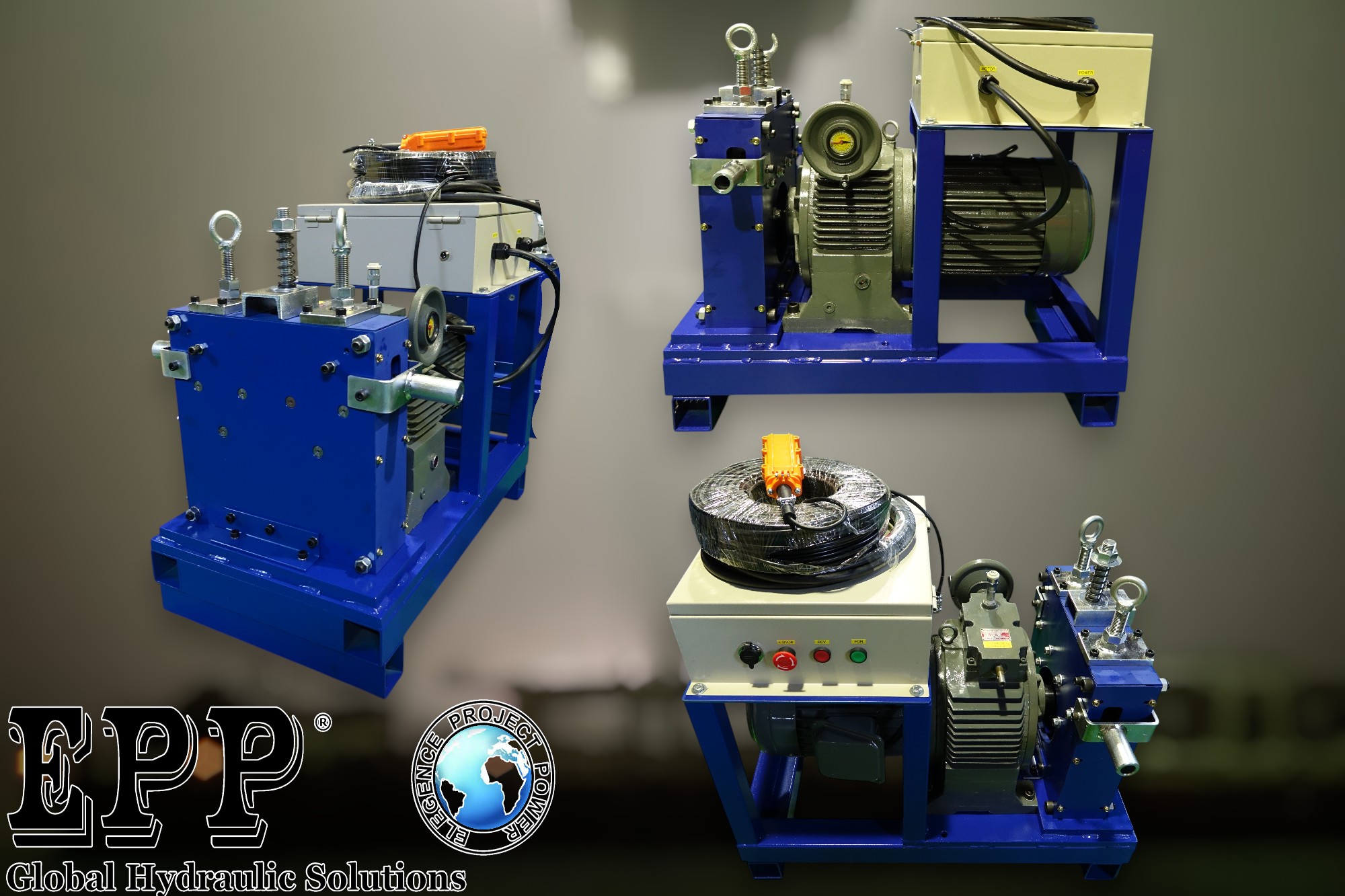

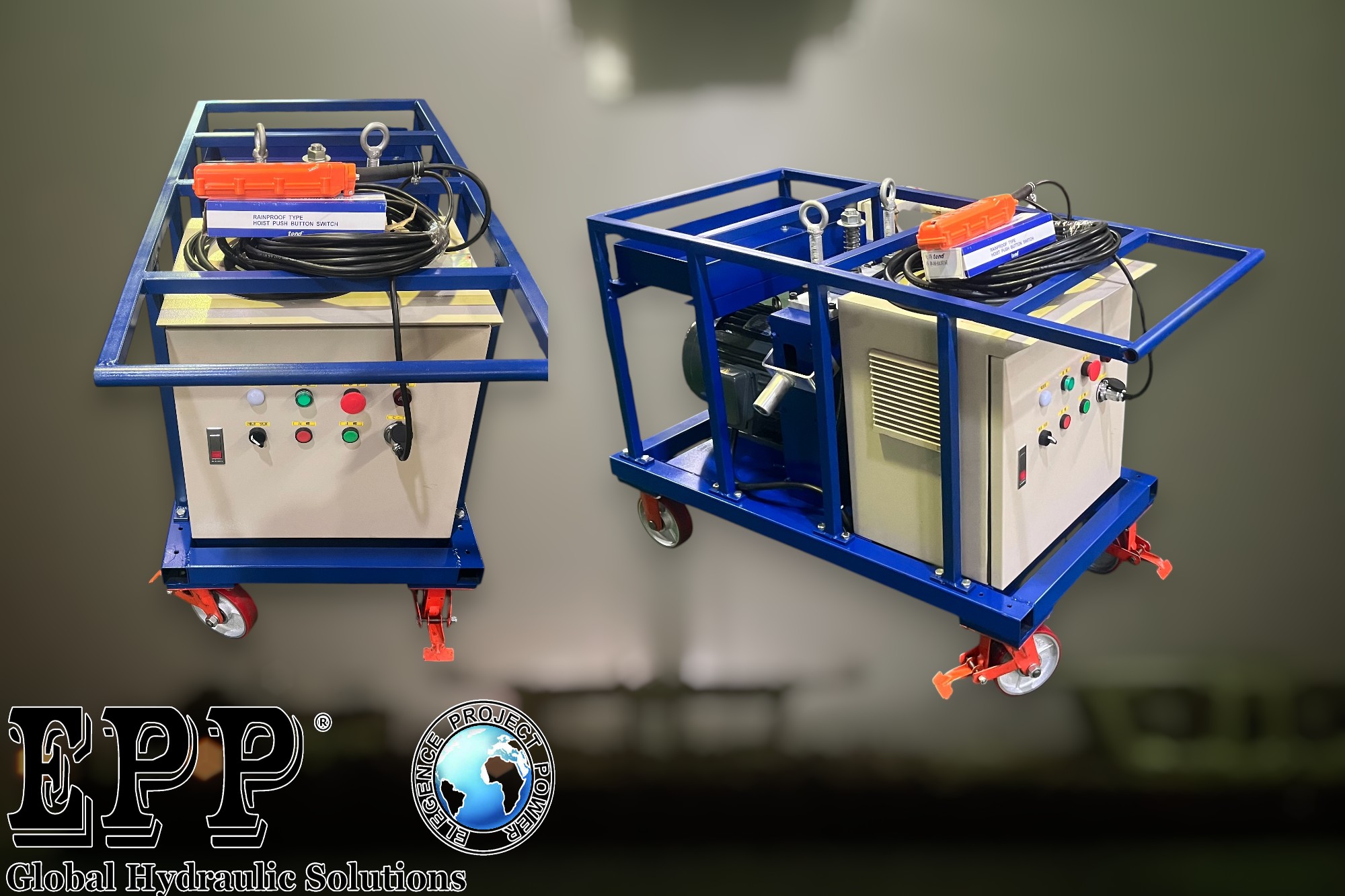

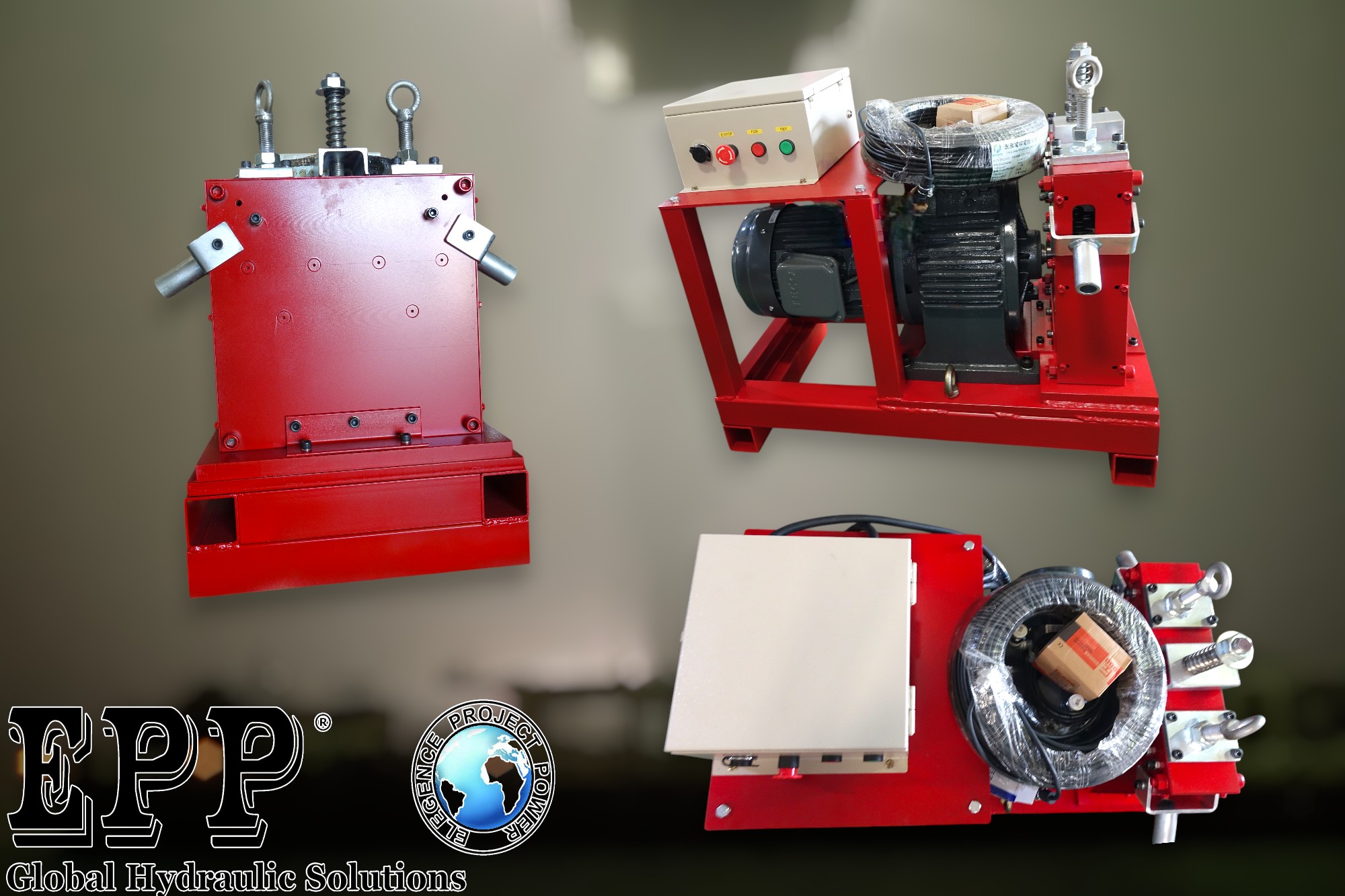

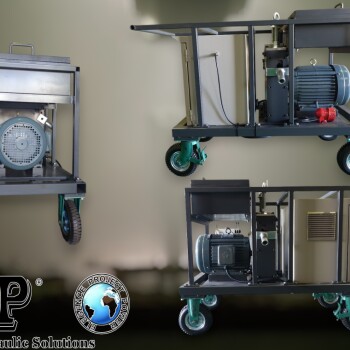

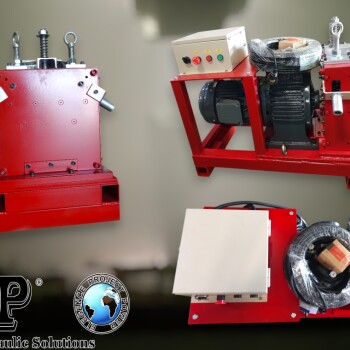

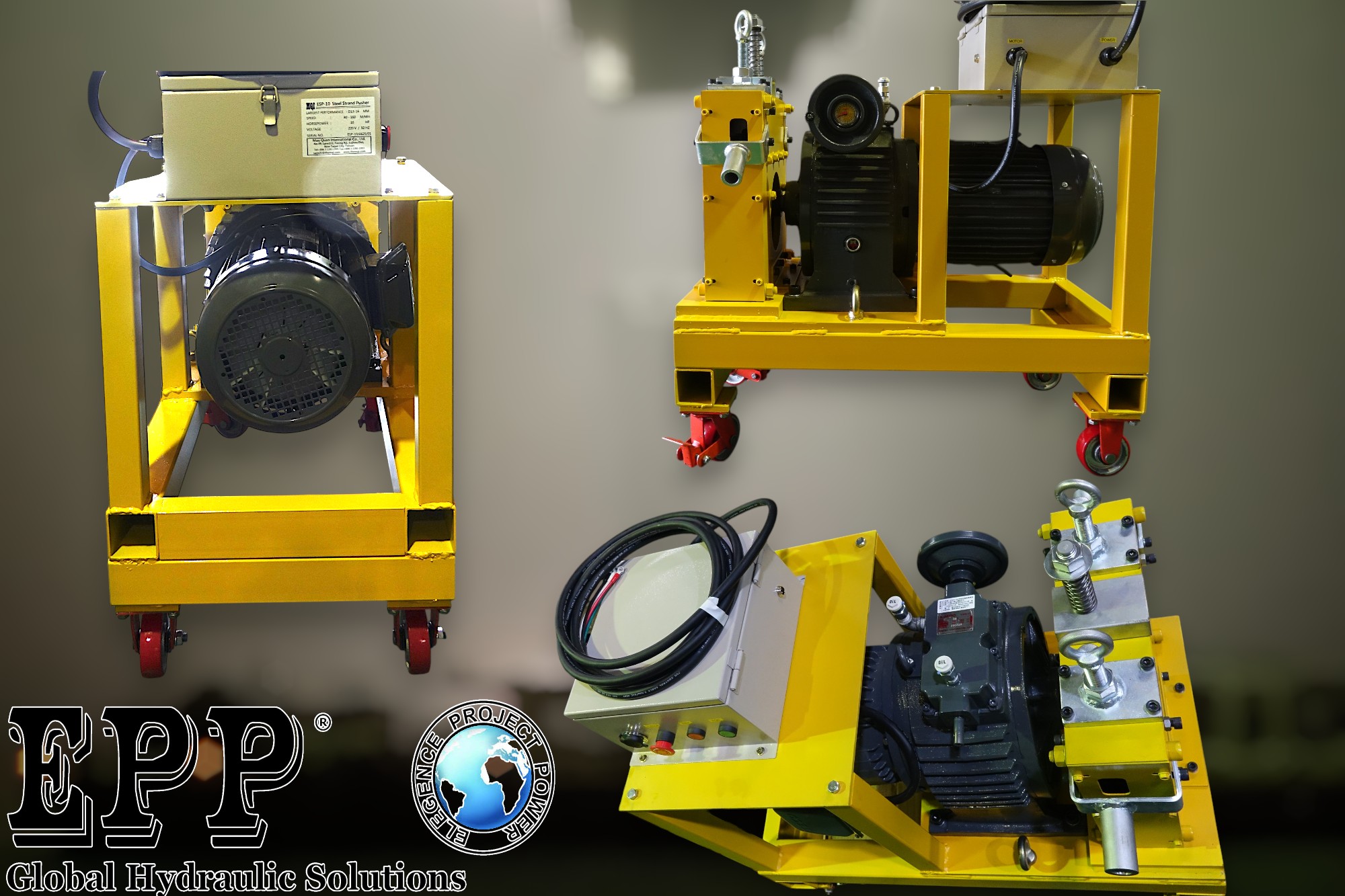

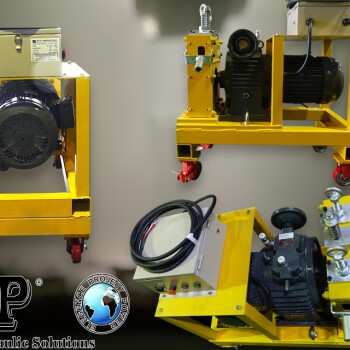

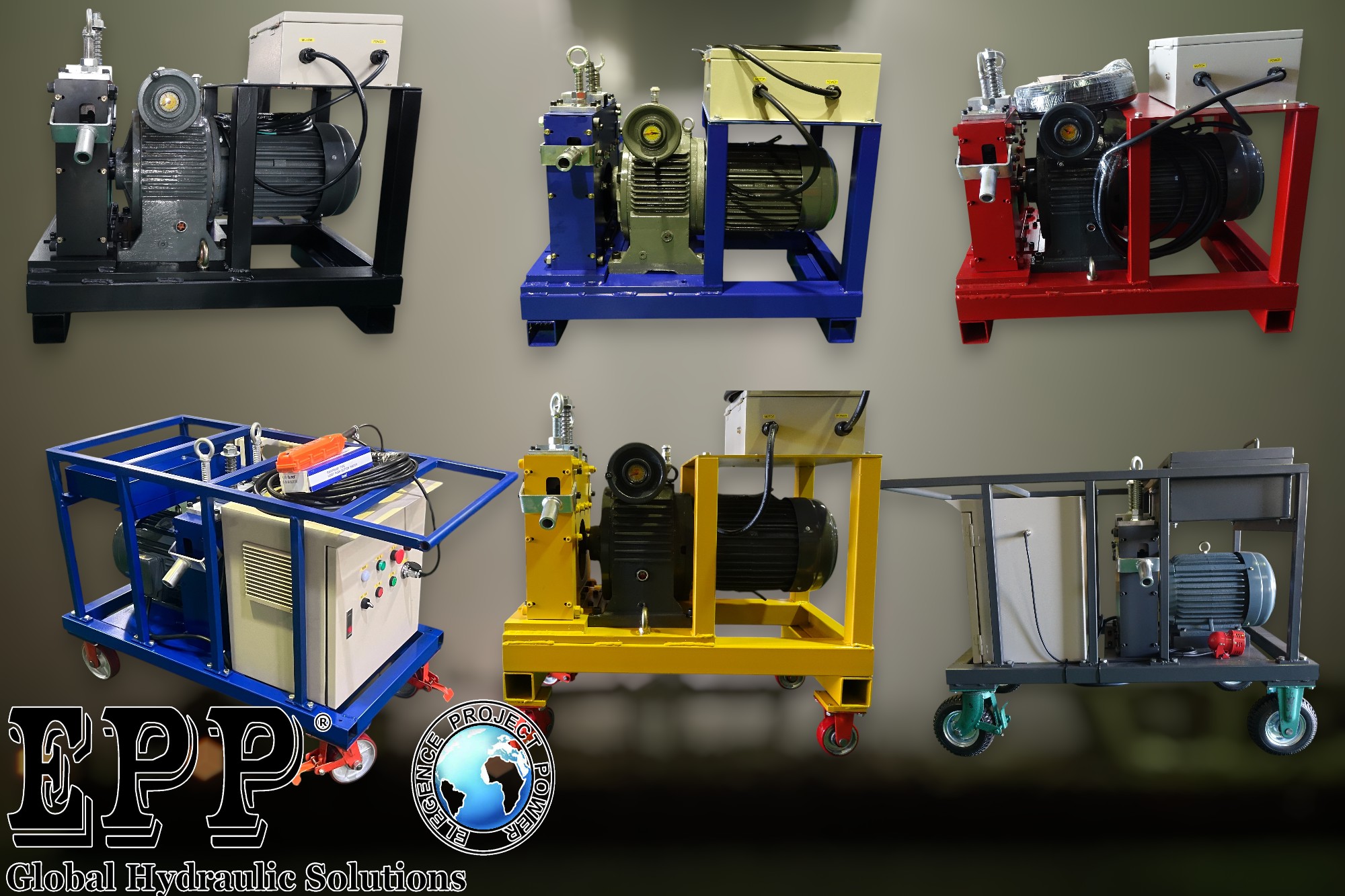

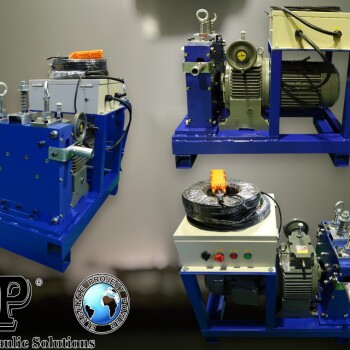

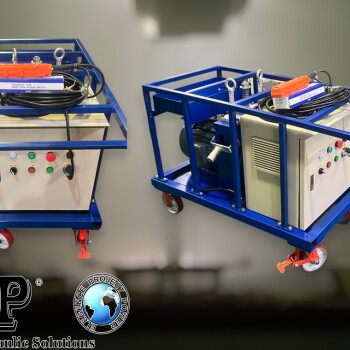

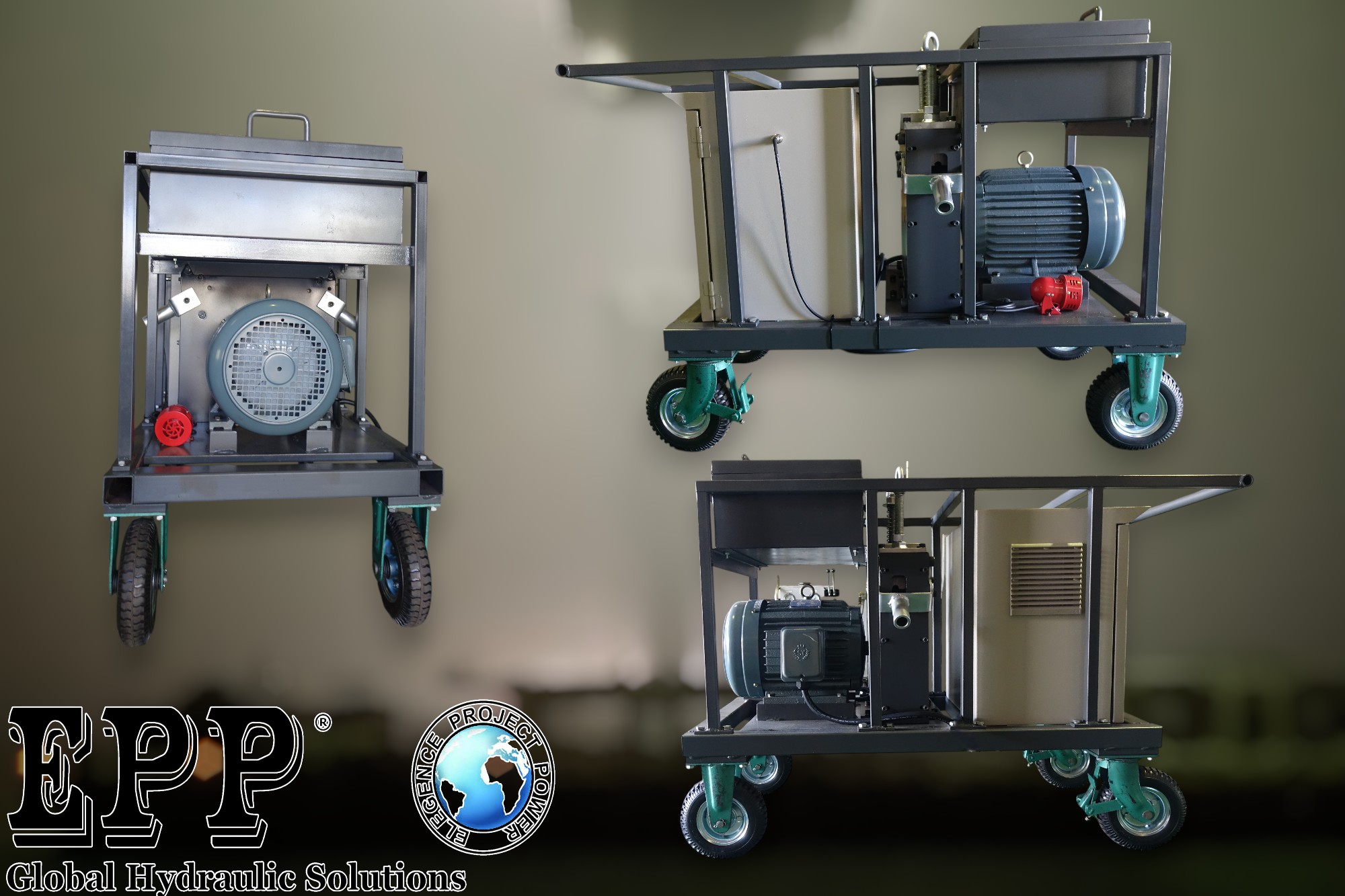

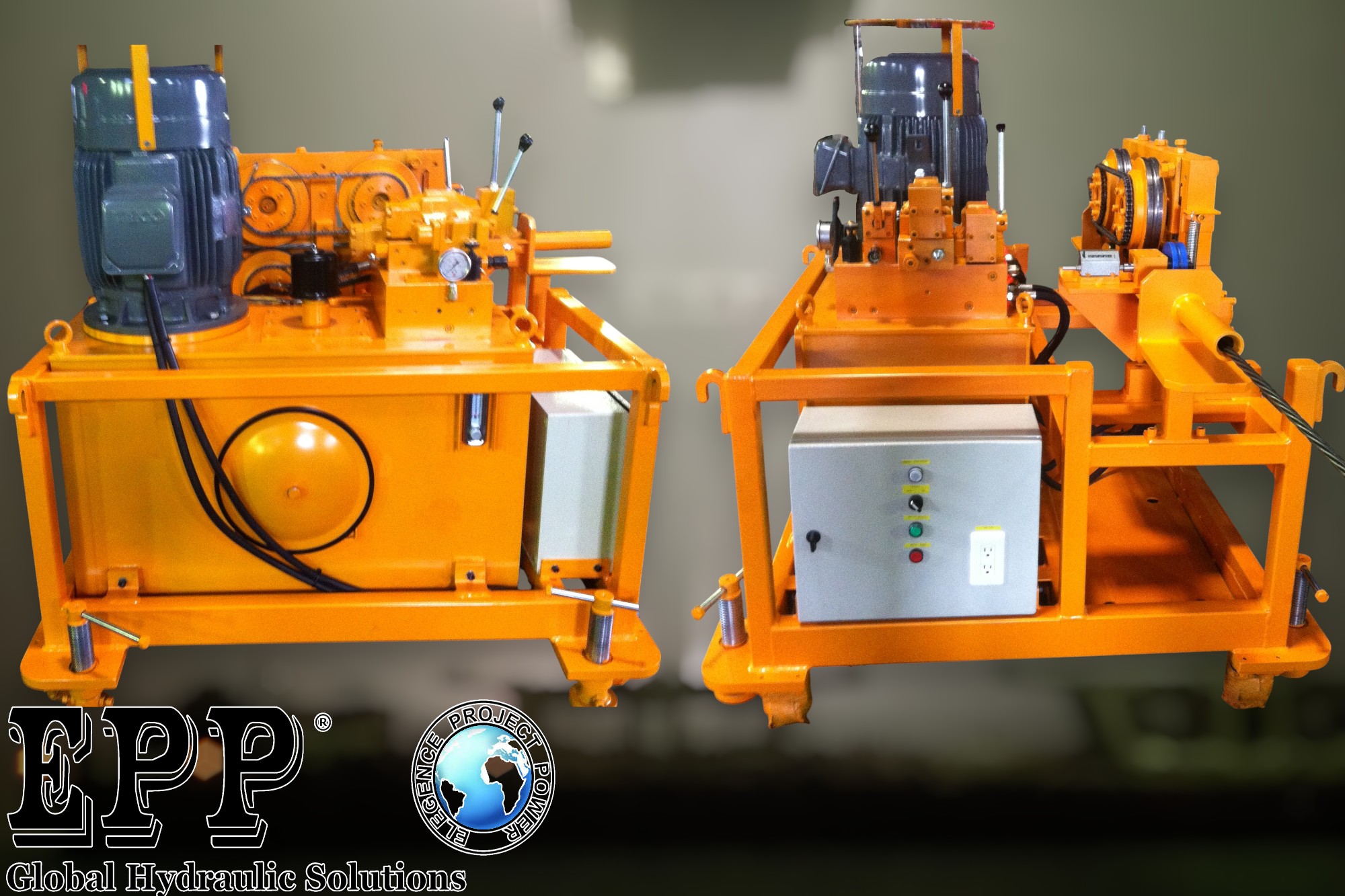

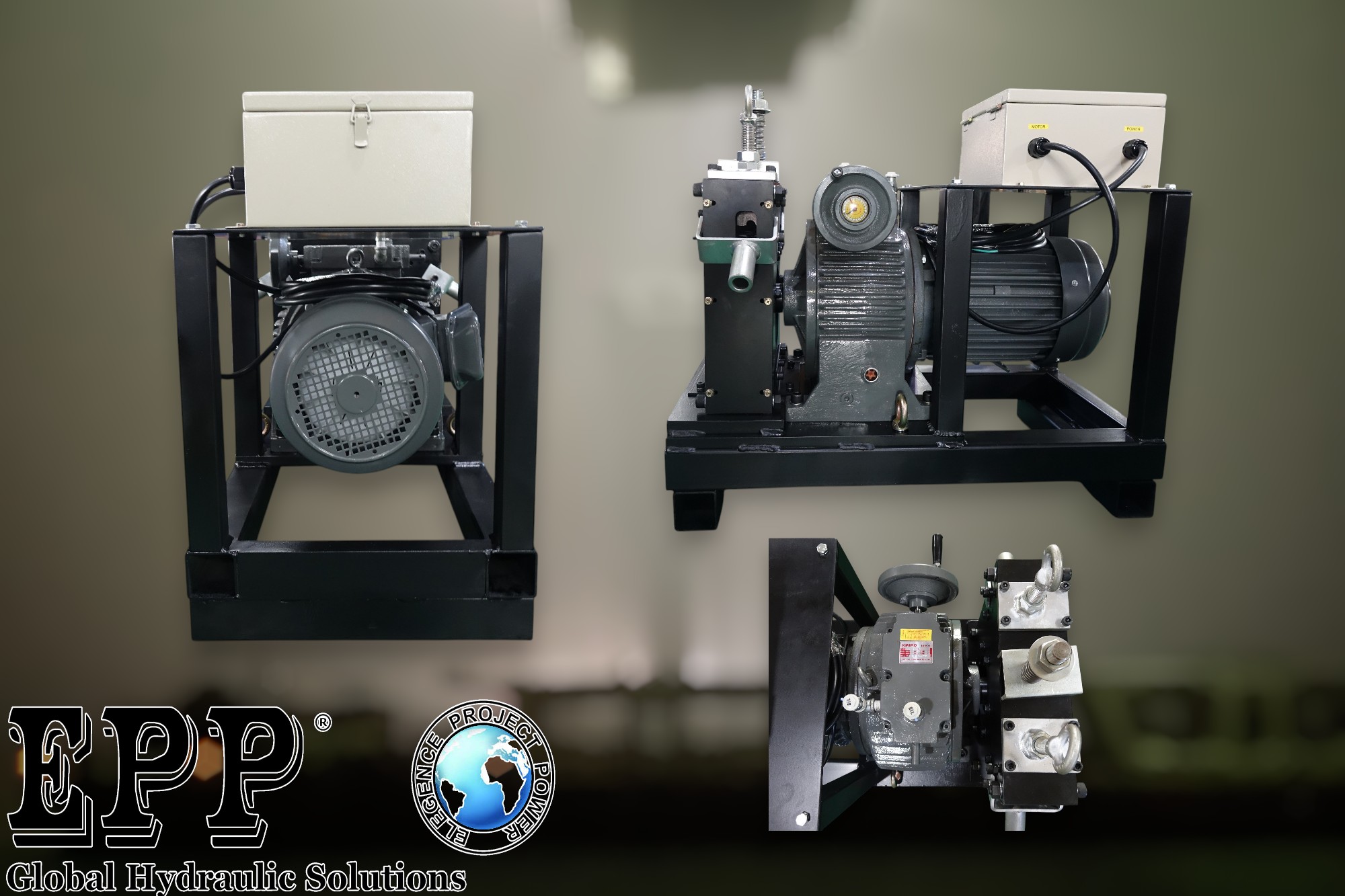

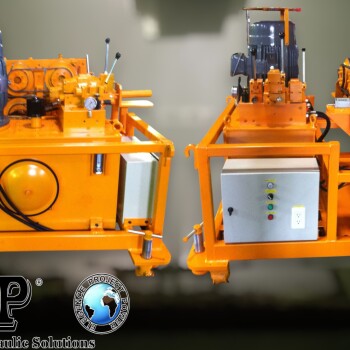

Hydraulic Steel Strand Pusher

  1. The pusher designed by idea of hydraulic system with low rotation rate and high torque features.
  2. The power was driven by motor which operate at a high pressure pump, then transmit through to hydraulic motors for the mechanical means.
  3. This device provides low and high speed.
  4. Operating speed maximum speed of 1100RPM
  5. The pusher is Capable of push over 100M at low speed and 160M in high speed.
  6. The fitting gauge showed pushing length obviously within operation.
  7. The machine is capability of adjusting and retracting the superabundant strand at low speed with ease.
  8. The strand frame produced by our company is made of most practical iron material.
  9. Assembling easily, operation without crane, practical to use, low budget and high work efficiency.

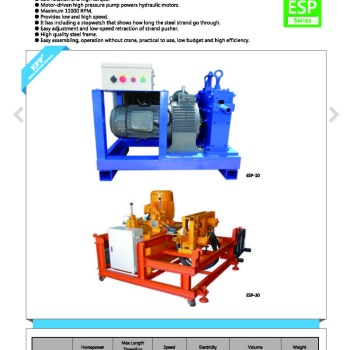

Model ESP-10 ESP-30
Max length threading capacity
Above 100M
Above 160M
Speed
80~160 M/min
80~160 M/min
Horsepower (HP)
10 HP
30 HP
Electricity
110V X 50/60HZ
220V X 50/60HZ
110V X 50/60HZ
220V X 50/60HZ
Volume
870 x 510 x 780 mm
1750 x 1450 x 1600 mm
Weight
390 kg
1160 kg
Certificate:
ESP
