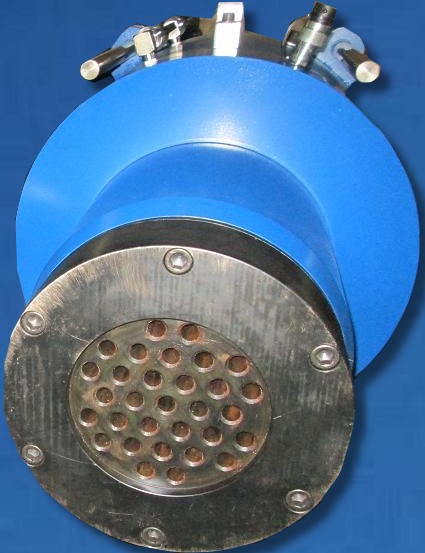

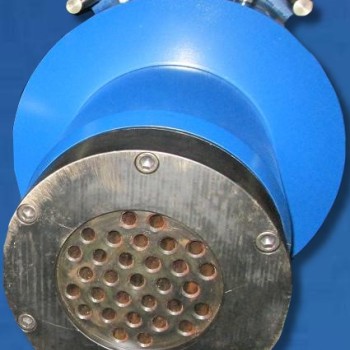

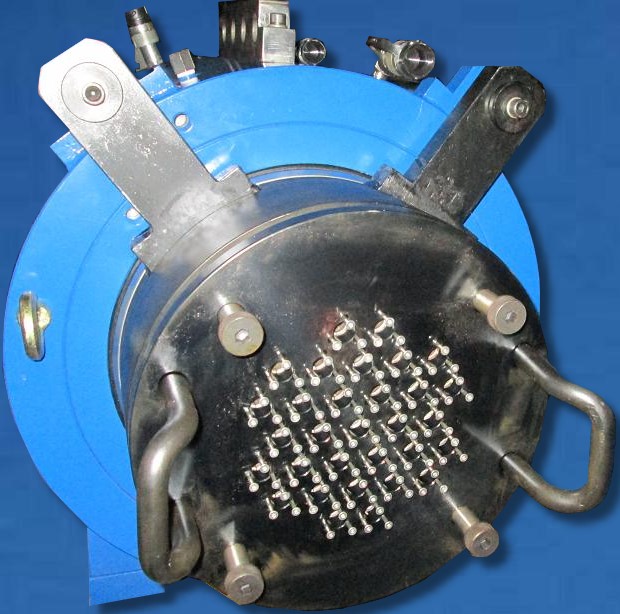

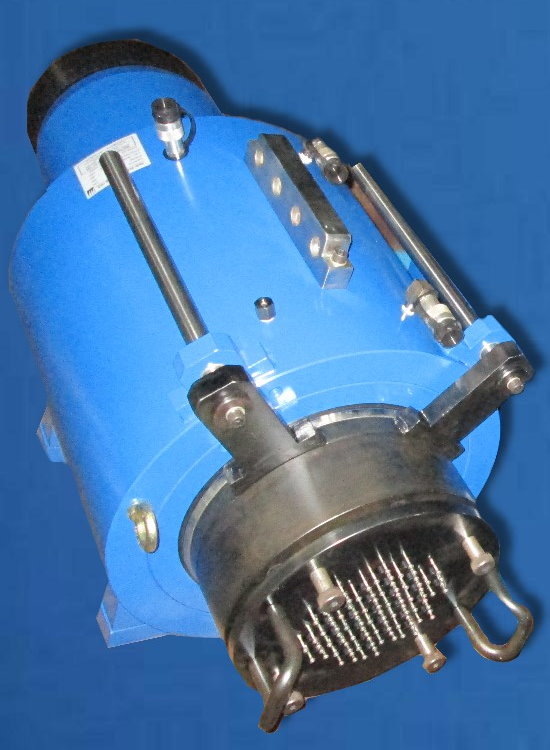

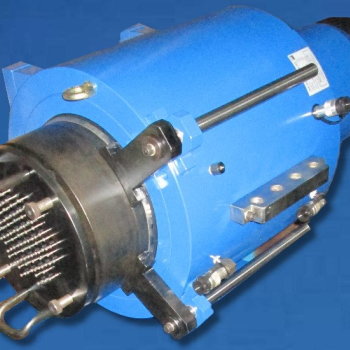

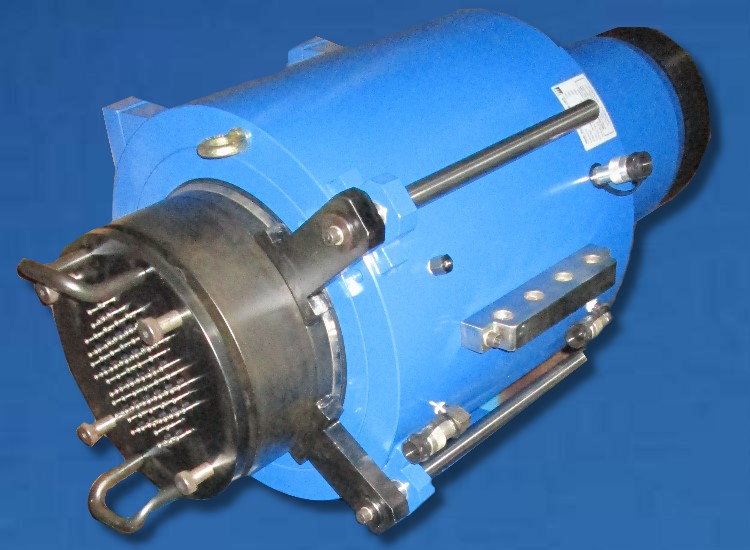

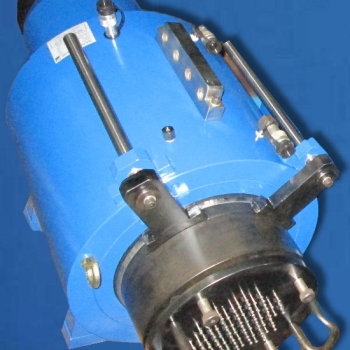

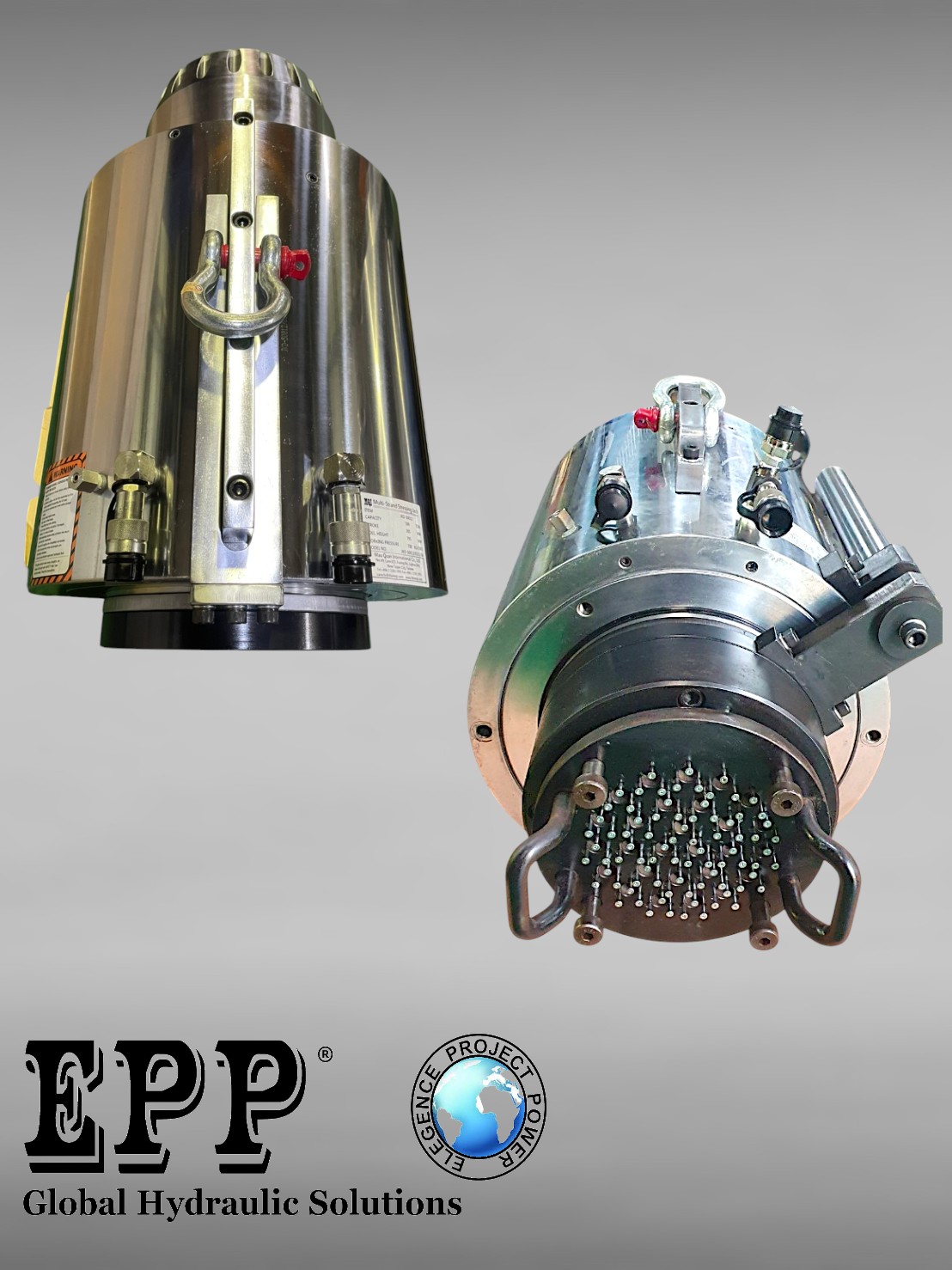

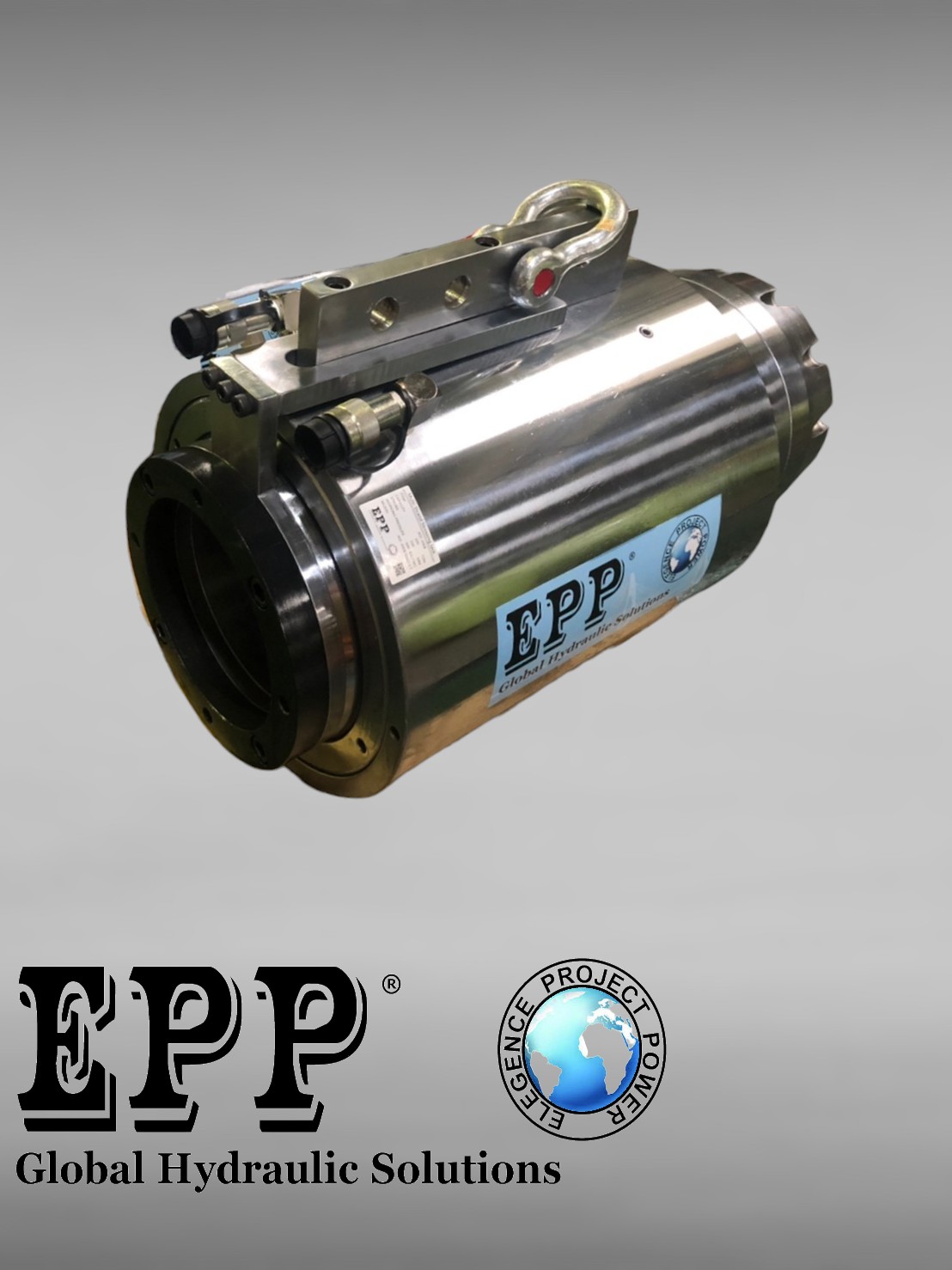

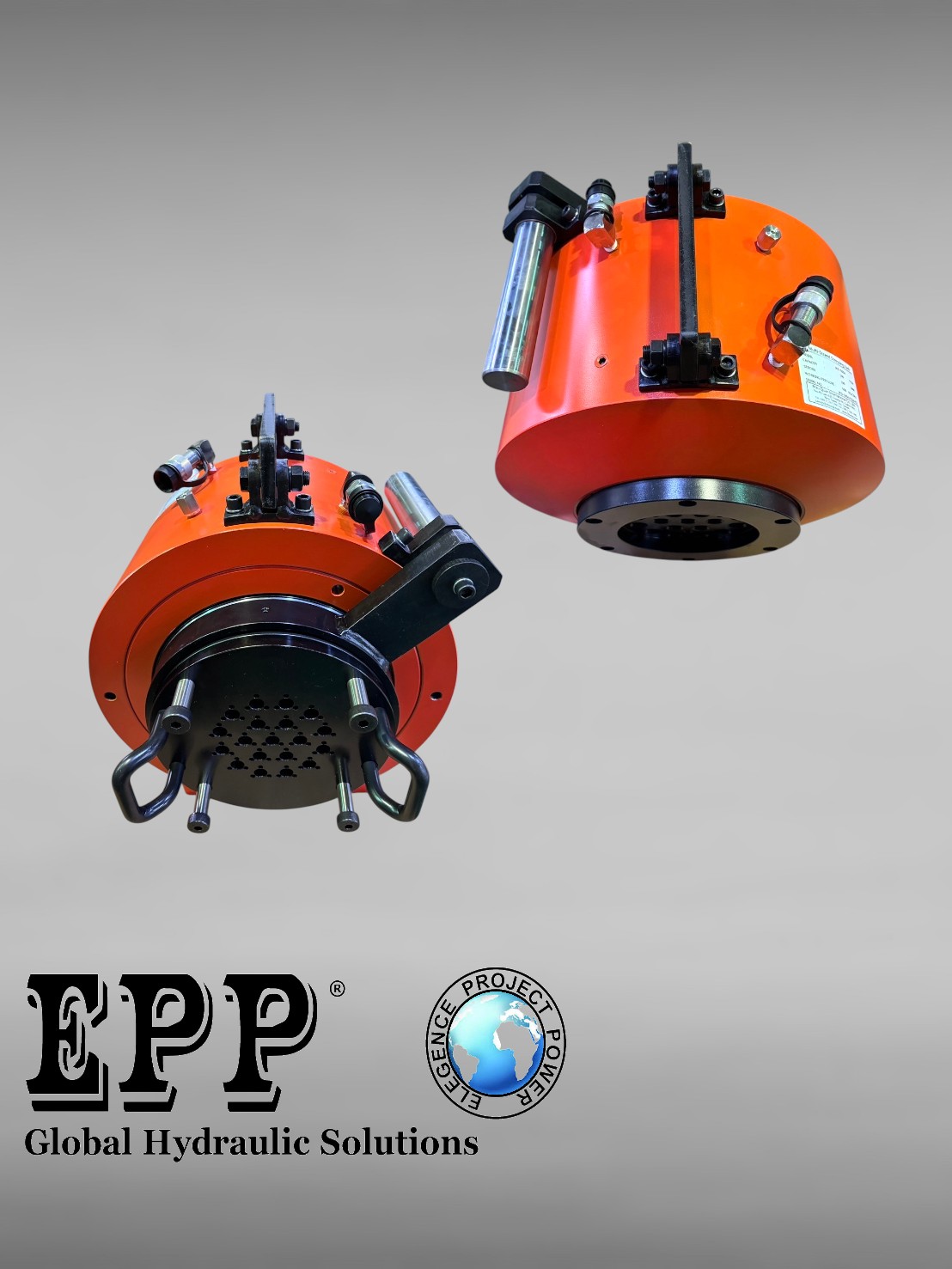

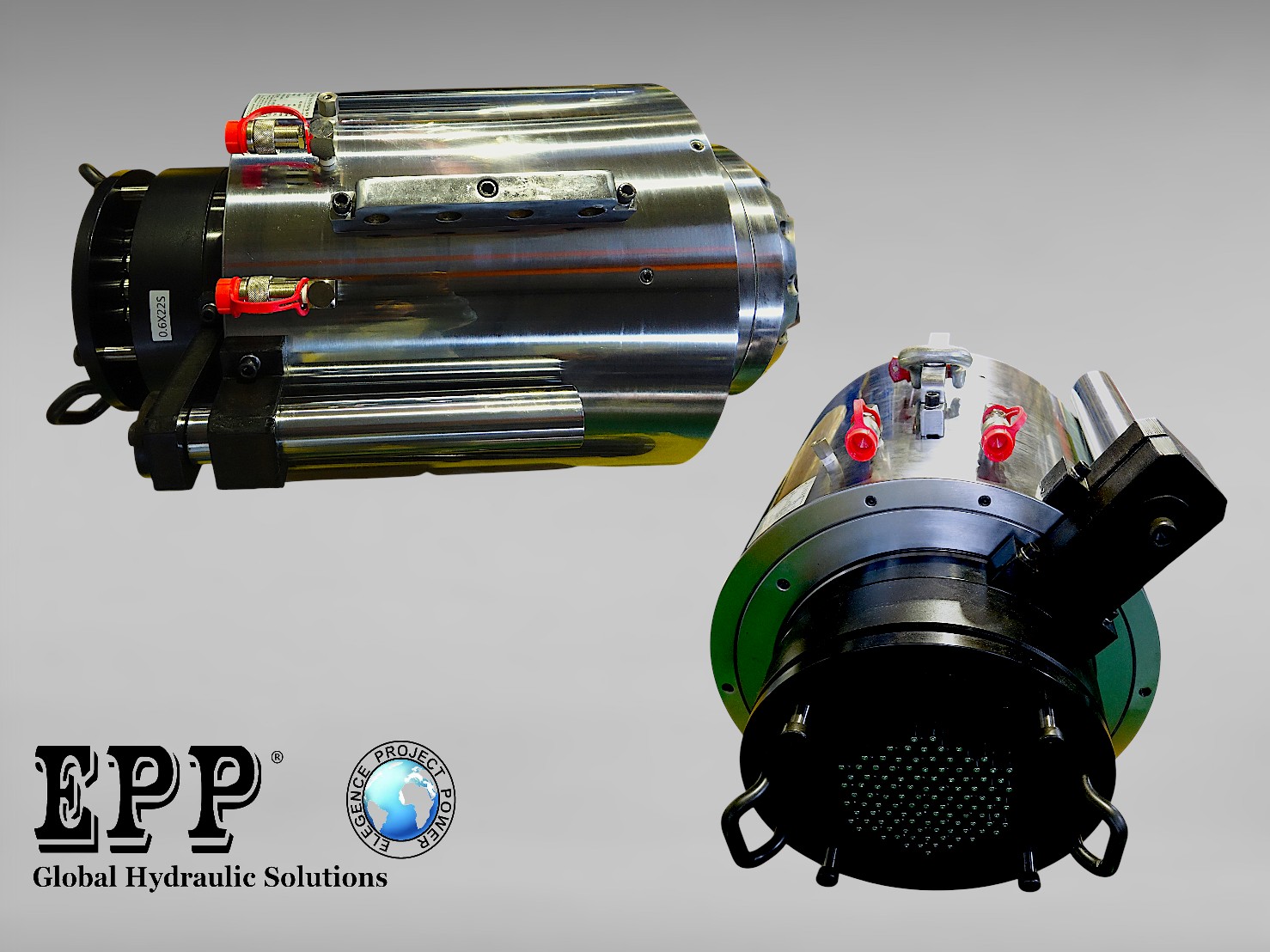

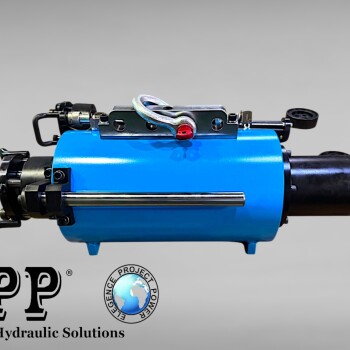

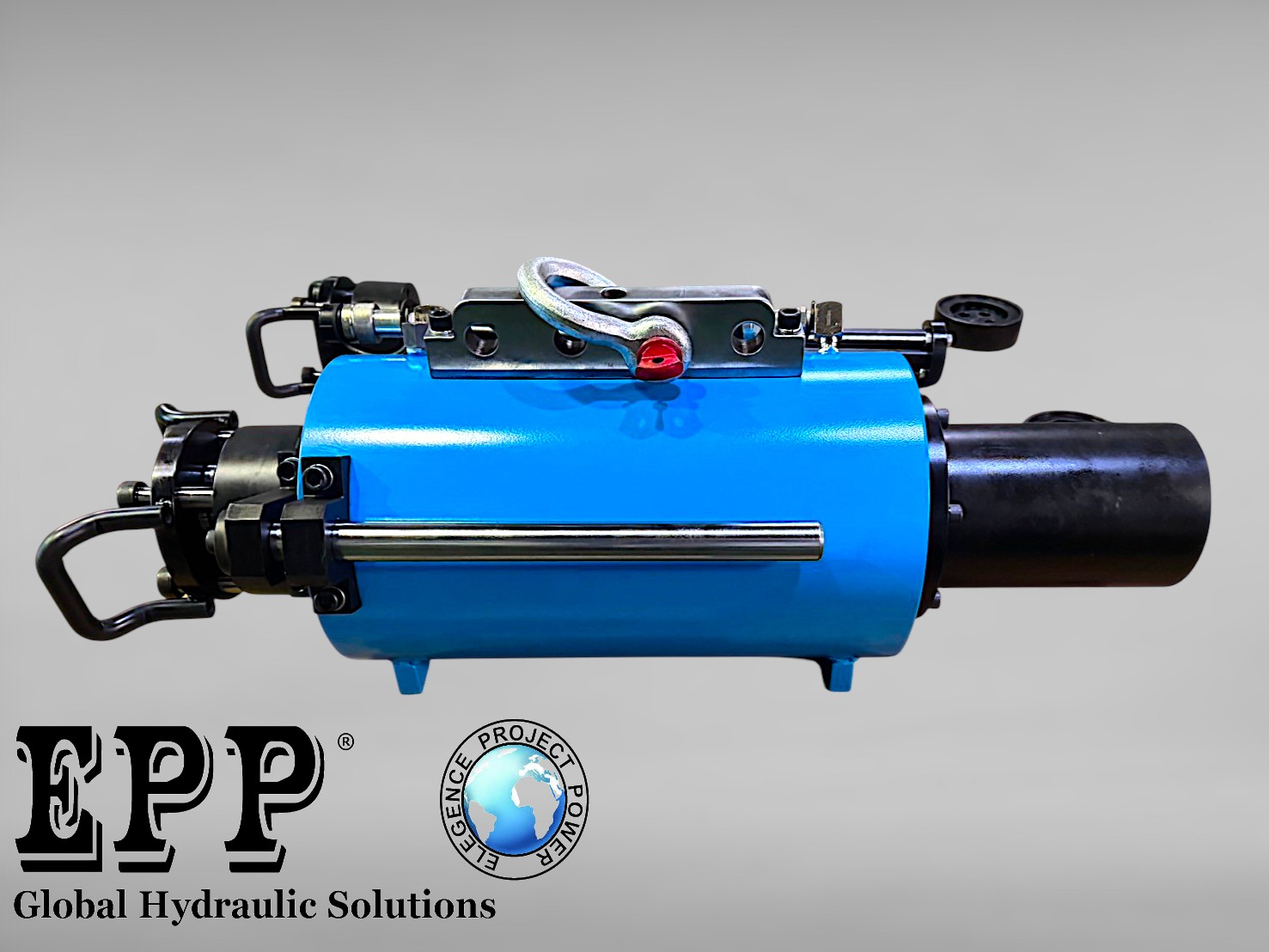

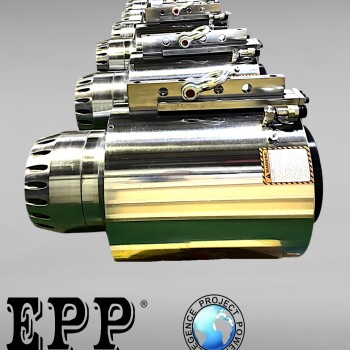

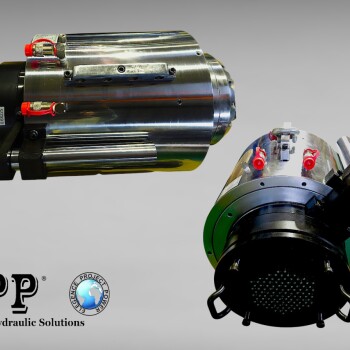

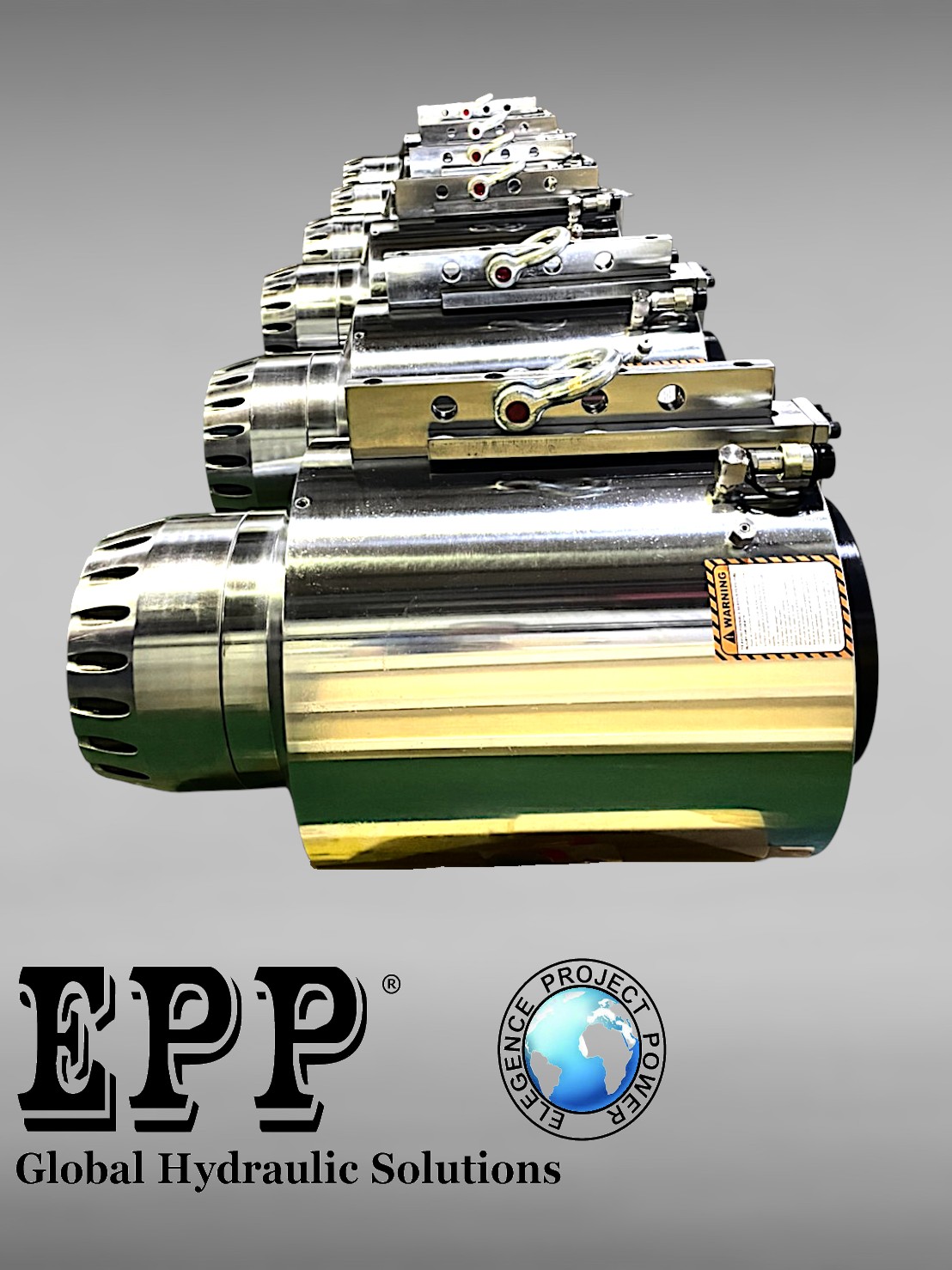

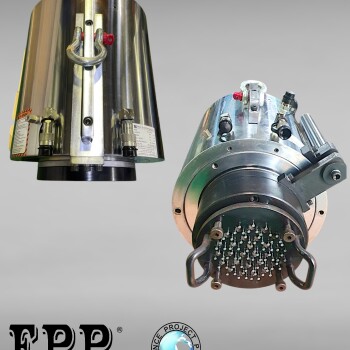

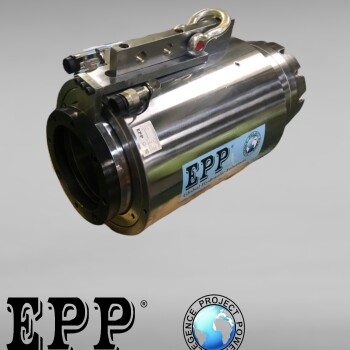

Multi-Strand Hydraulic Stressing Jacks

Manufactured by process :
  1. Based on a client’s requirements, we make an offer of a hydraulic product, giving its actual dimensions and loading capacity .The offer is discussed with the client to ensure that their requirements are satisfied (this is not necessary if the client provides drawings and specifications).
  2. Procurement of raw materials as per specifications of JIS G4105 SCM440.
  3. Boring the material (the raw material being solid).
  4. Rough machining to a +/- 2 ~ 4mm precision in dimensions, followed by heat treatment to re-adjust material characteristics.
  5. Heat treatment to machine workable range. The heat treatment increases the hardness and durability of the material, lengthening its service life.
  6. Welding the copper, which can be done in three ways :
    • oxy-acetylene welding of copper,
    • gas metal arc welding of copper (GMAW), and
    • CO2 welding. Our factory uses oxy-acetylene welding of copper, which is the most expensive method , but yields the best results.
  7. Fine machining (boring, threading, lathe processes)
  8. Filling up the holes, grinding
  9. Electroplating the piston and inside of the cylinder (to increase the hardness of contact surfaces).
  10. Verify the serial numbers, then assemble the various parts (including sealing rings)
  11. Testing

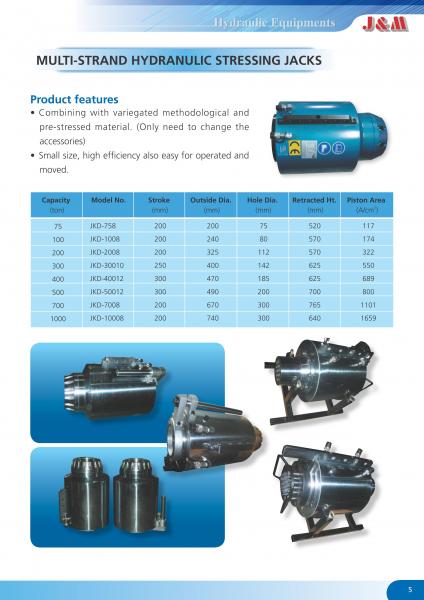

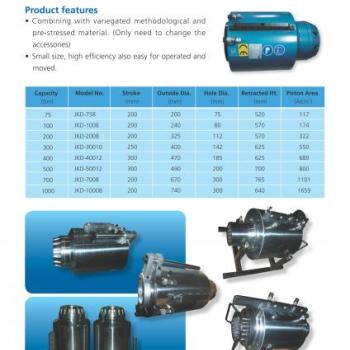

Product Features :

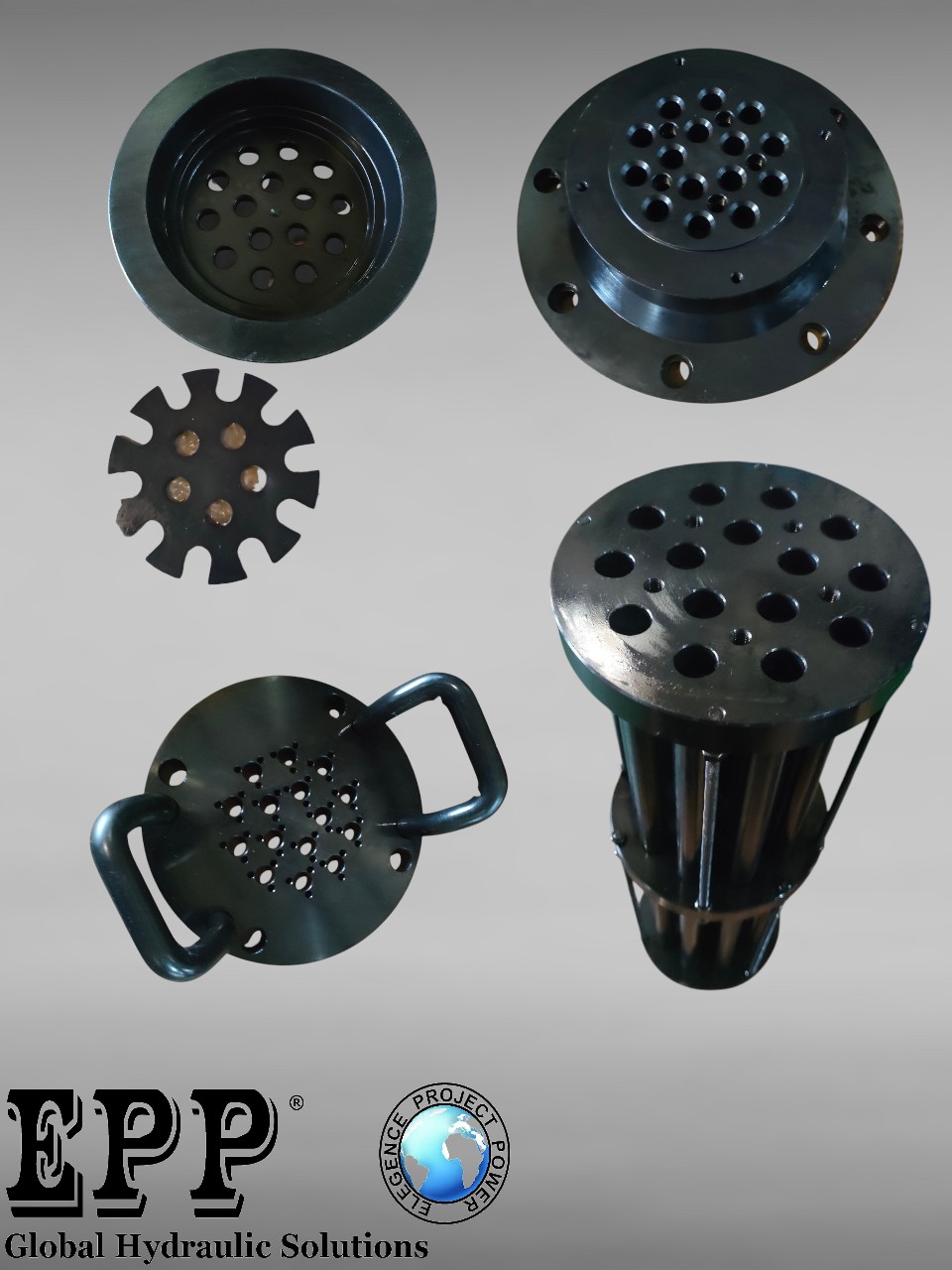

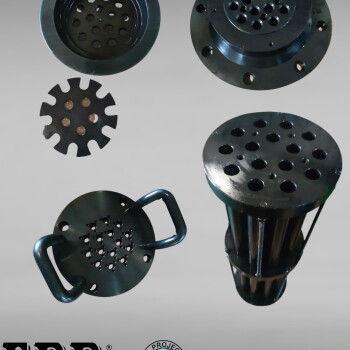

  • Combining with variegated methodological and pre-stressed material.
    (Only need to change the accessories)
  • Small size, high efficiency also easily for operated and moved.

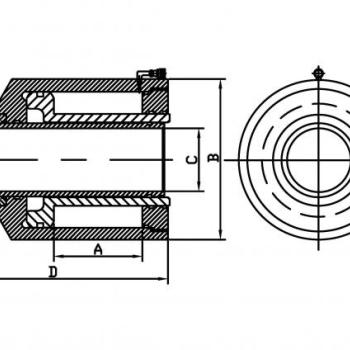

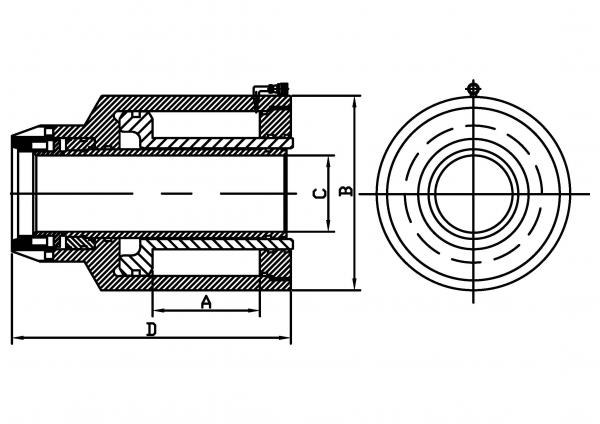

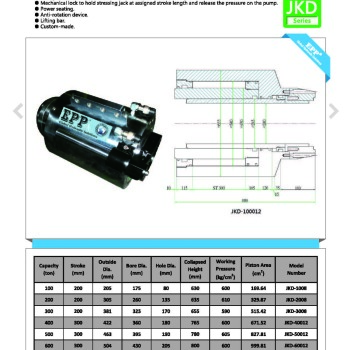

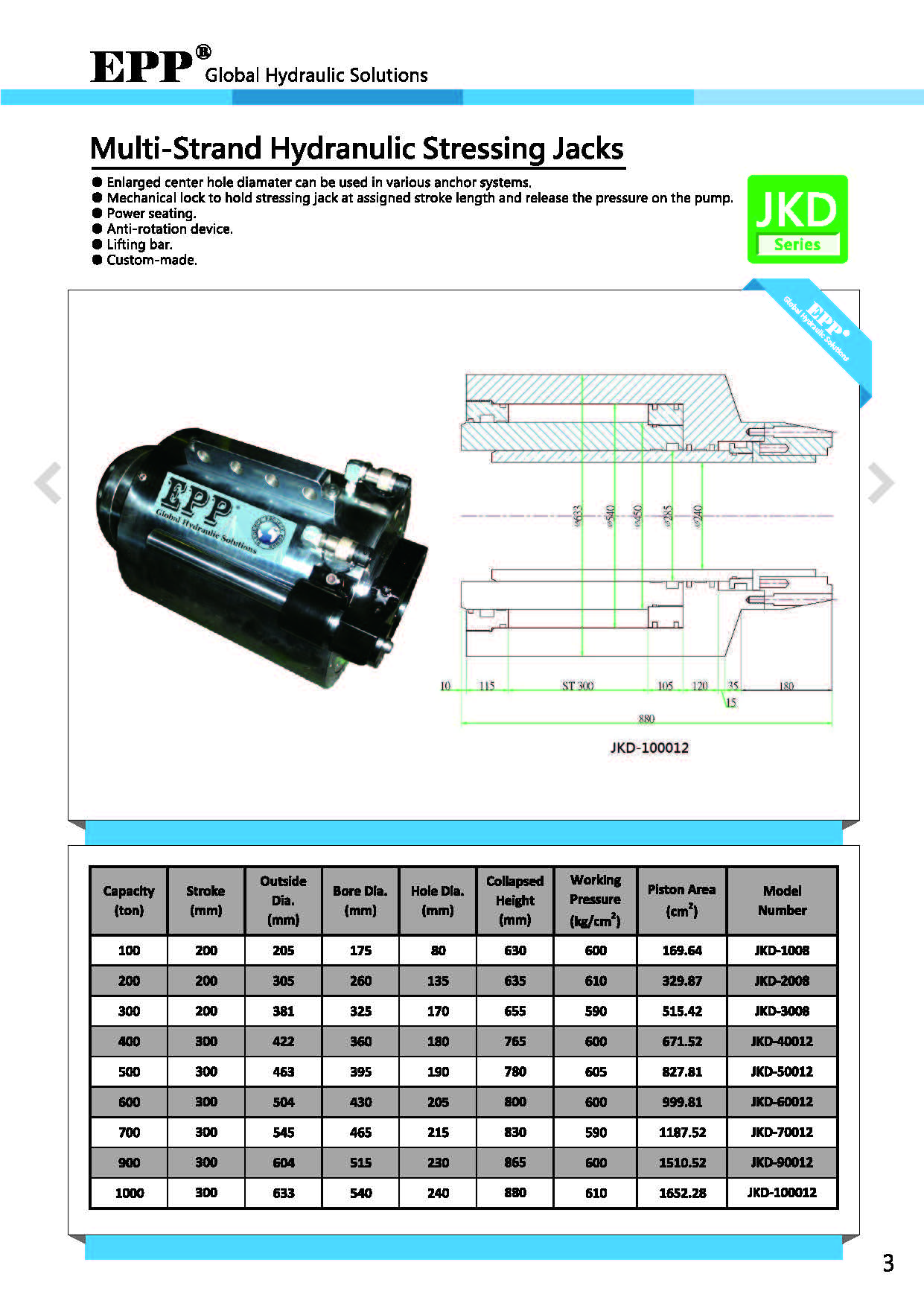

 Model   Stroke A
(mm)
 Outside Dia B
(mm)
 Hole C
(mm)
 Retracted Ht D
(mm)
 Piston Area
(A/c㎡)
JKD-758
          200
               200
         75
                520
              117
JKD-1008
          200
               240
         80
                570
              174
JKD-2008
          200
               325
        112
                570
              322
JKD-30010
          250
               400
        142
                625
              550
JKD-40012
          300
               470
        185
                625
              689
JKD-50012
          300
               490
        200
                700
              800
JKD-7008
          200
               670
        300
                765
             1101
JKD-10008        200       740       300             640           1659

 Note : Custom-made Jacks according to clients requirements for shape, size, capacity and loading.
