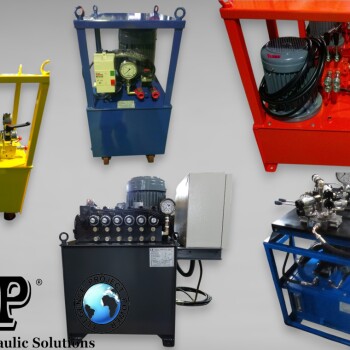

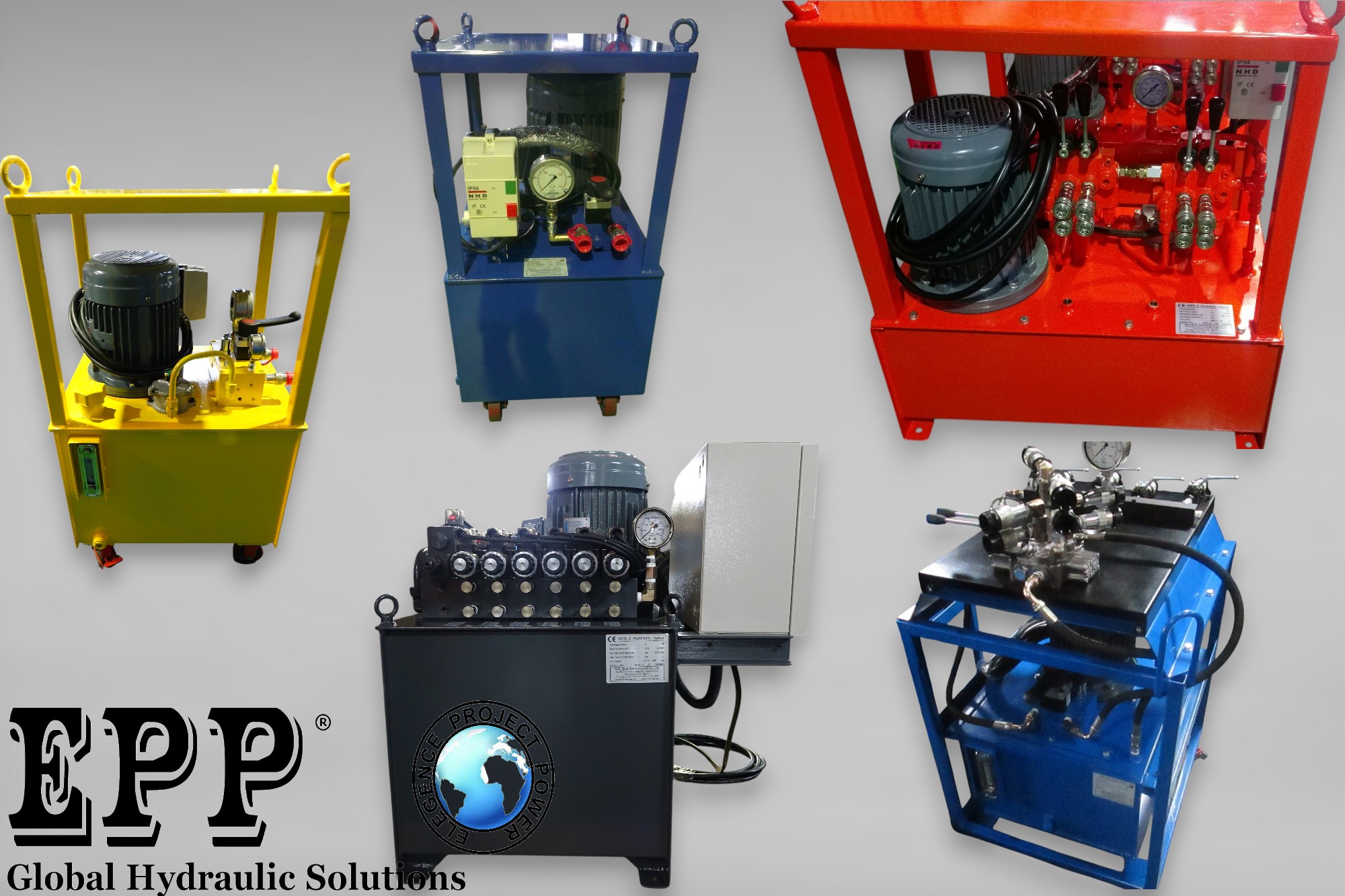

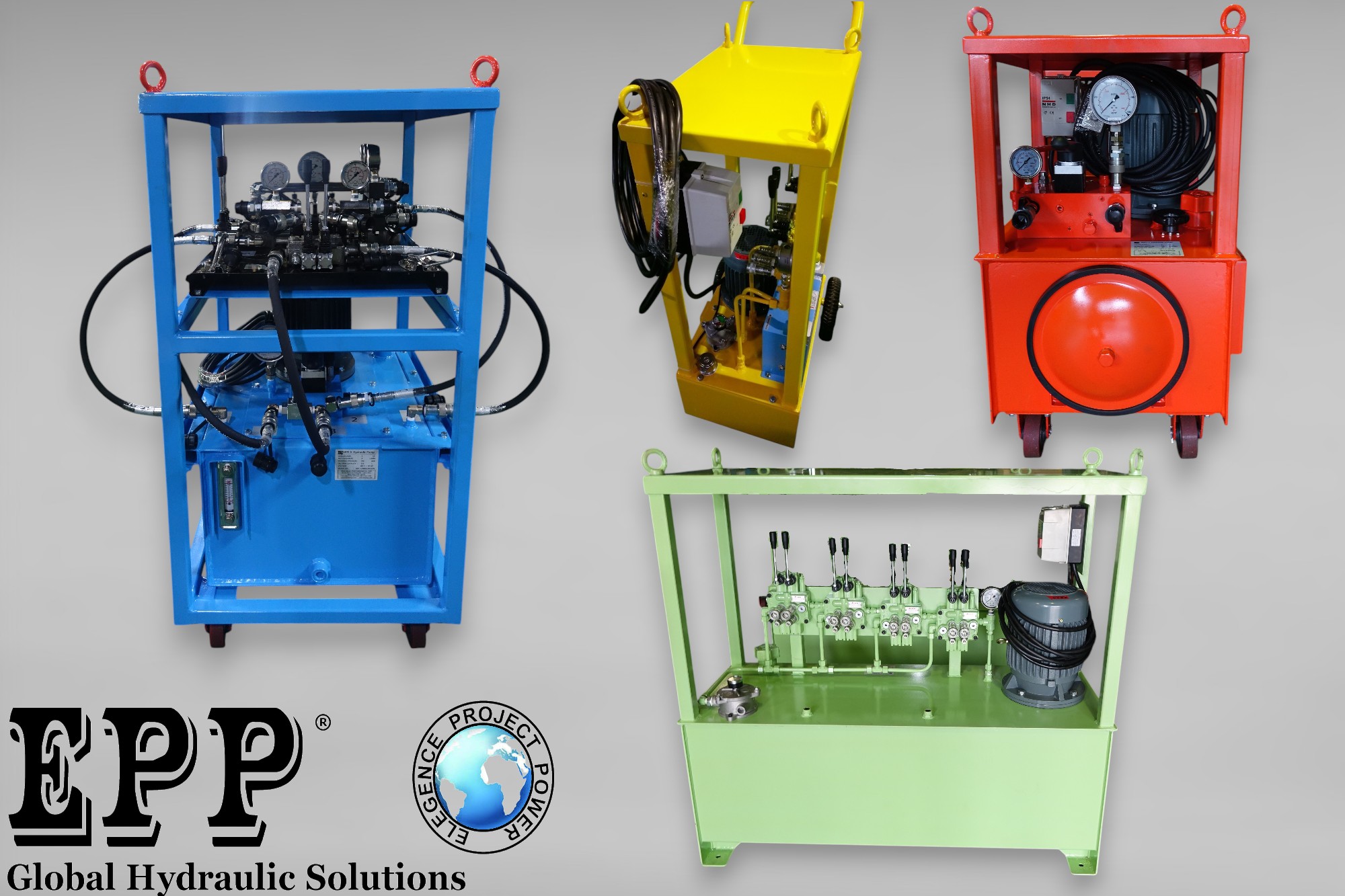

Power Units
Customizable Design
Flow rate, pressure range, and reservoir capacity can be tailored to different applications, providing flexible solutions for engineering and industrial needs.
Easy Operation
Equipped with a user-friendly interface and high-precision pressure gauges, allowing operators to quickly get started and monitor system performance with accuracy.
Durable Construction
Built with a robust steel base and high-strength housing to withstand long-term operation under high pressure, ensuring stability and extended service life.
Built-in Safety Valve
Prevents accidental overpressure, protecting both operators and equipment during use.
Standardized Configuration
All models come equipped with pressure gauges, reservoirs, and coupling components for easy installation and reduced maintenance effort.

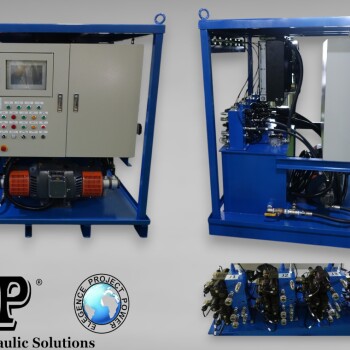

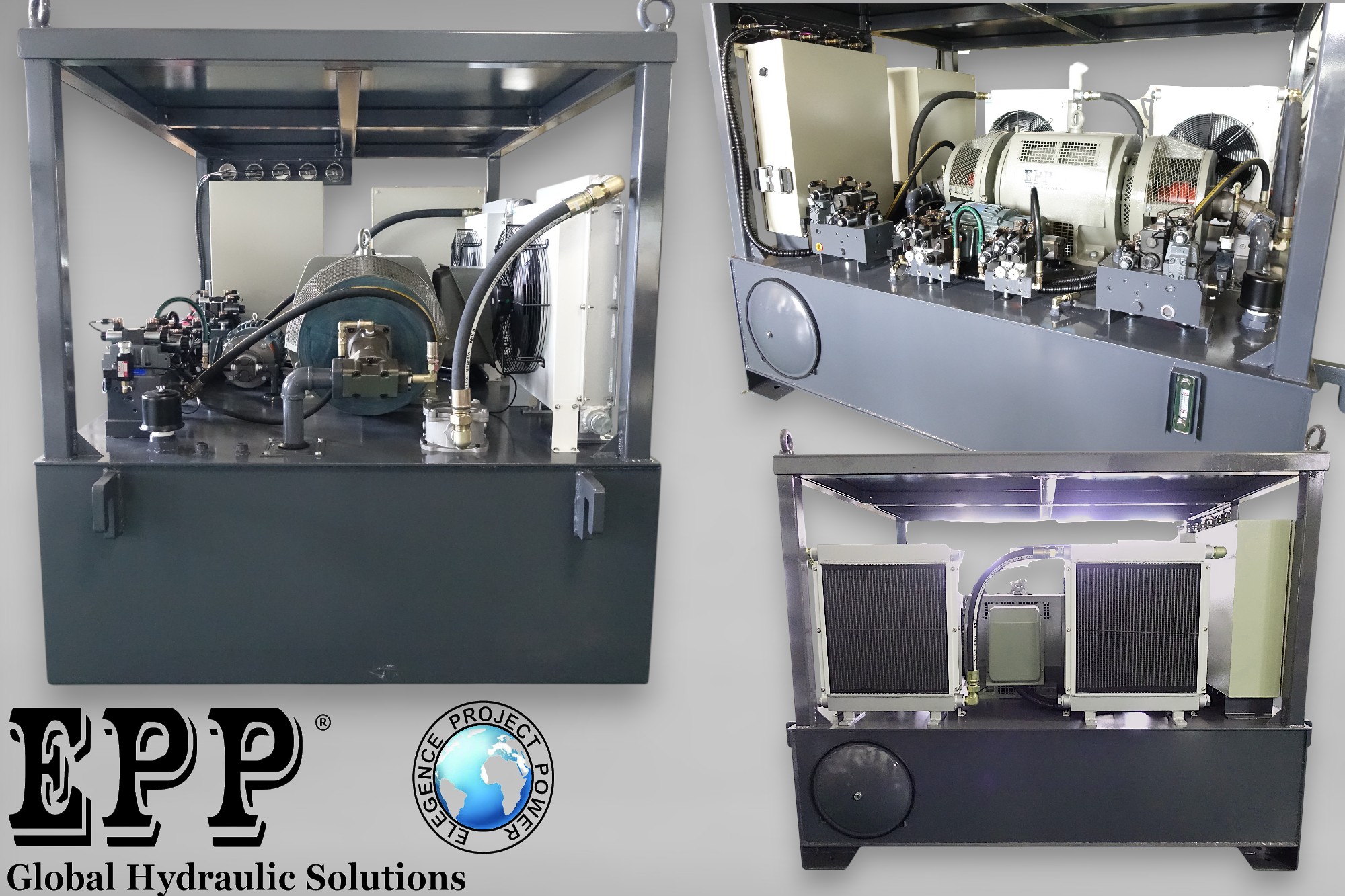

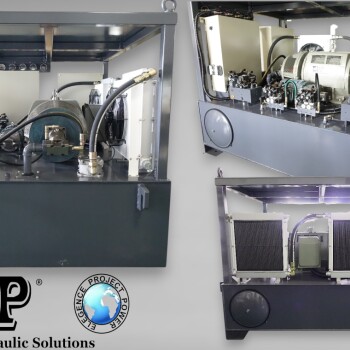

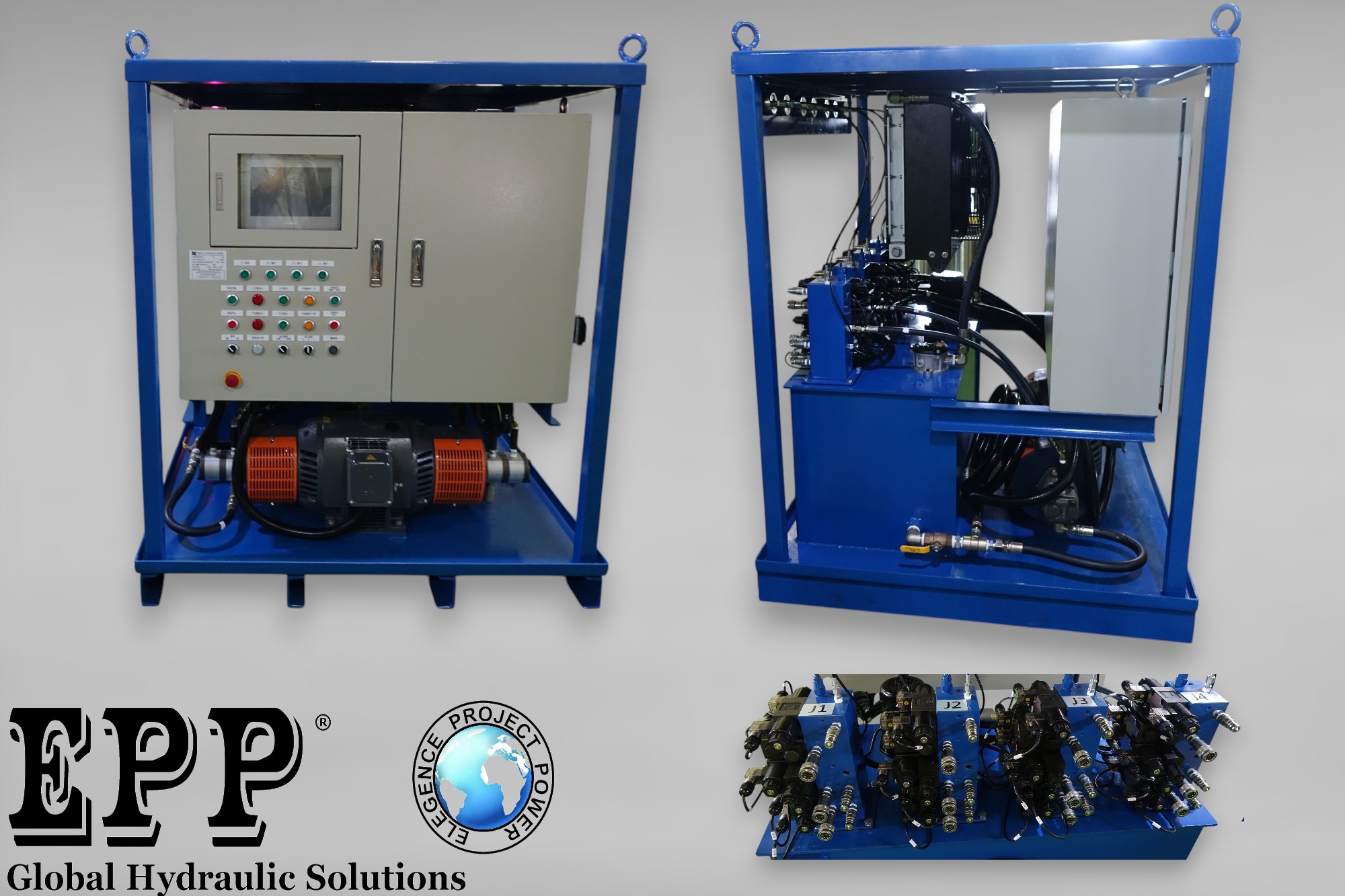

Modular Integration
Combines electric pump, reservoir, and control valves into a complete power unit, making it easy to transport, install, and maintain.
| Model | Horsepower(HP) | Out Flow Rate(L/Min) | Working Pressure(kg/c㎡) | Volume(mm) | Oil Capacity(L) | Voltage | Pressure Gauge |
|---|---|---|---|---|---|---|---|
| MPE-5 | 5 | 4.3 | 700 | 600x500x1000 | 120 | 220Vx60Hz | 4" x 700(kg/c㎡) 2.5" x 400(kg/c㎡) |
| MPE-7 | 7.5 | 4.8 | 700 | 650x550x1200 | 150 | 220Vx60Hz | 4" x 700(kg/c㎡) 2.5" x 400(kg/c㎡) |
| MPE-10 | 10 | 6.18 | 700 | 650x550x1300 | 180 | 220Vx60Hz | 4" x 700(kg/c㎡) 2.5" x 400(kg/c㎡) |
| MPE-15 | 15 | 10.5 | 700 | 700x600x1500 | 230 | 220Vx60Hz | 4" x 700(kg/c㎡) 2.5" x 400(kg/c㎡) |
