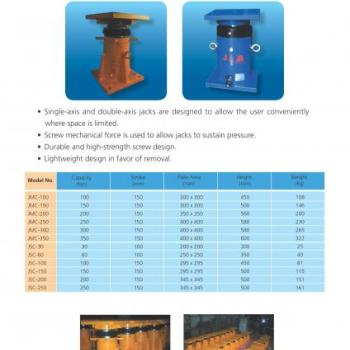

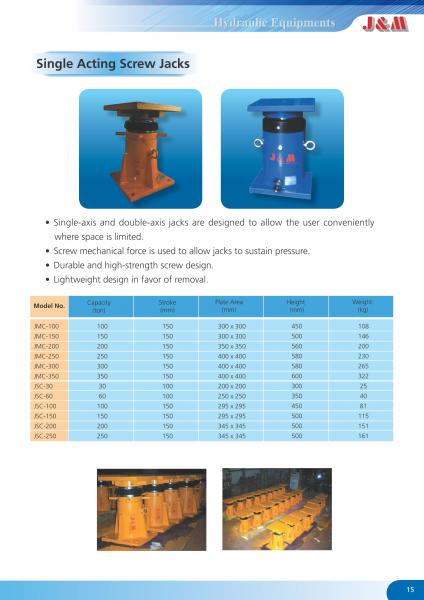

Single Acting Hydraulic Screw Jacks
- Single-axis and double-axis jacks are designed to allow the user conveniently where space is limited.
- Screw mechanical force is used to allow jacks to sustain pressure.
- Durable and high-strength screw design.
- Lightweight design in favor of removal.
| Model | Capacity (ton) | Stroke (mm) | Plate Area (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
|
JMC-100
|
100
|
150
|
300*300
|
450
|
118
|
|
JMC-150
|
150
|
150
|
300*300
|
500
|
146
|
|
JMC-200
|
200
|
150
|
350*350
|
560
|
200
|
|
JMC-250
|
250
|
150
|
400*400
|
580
|
230
|
|
JMC-300
|
300
|
150
|
400*400
|
580
|
265
|
|
JMC-350
|
350
|
150
|
400*400
|
600
|
322
|
Capacity: 100~500 TON
| Model | Capacity (ton) | Stroke (mm) | Plate Area (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
|
JSC-30
|
30
|
100
|
200*200
|
300
|
25
|
|
JSC-60
|
60
|
100
|
250*250
|
350
|
40
|
|
JSC-100
|
100
|
150
|
295*295
|
450
|
81
|
|
JSC-150
|
150
|
150
|
295*295
|
500
|
115
|
|
JSC-200
|
200
|
150
|
345*345
|
500
|
151
|
|
JSC-250
|
250
|
150
|
345*345
|
500
|
161
|
