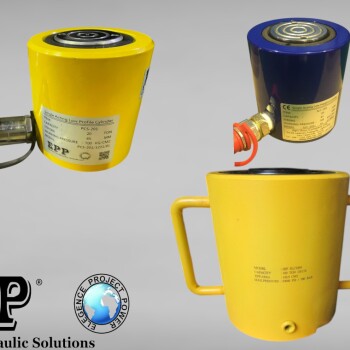

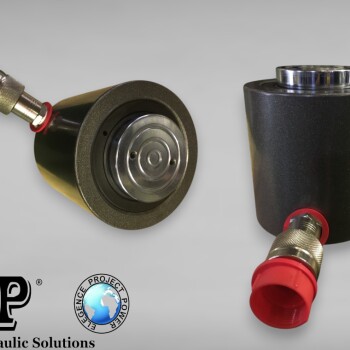

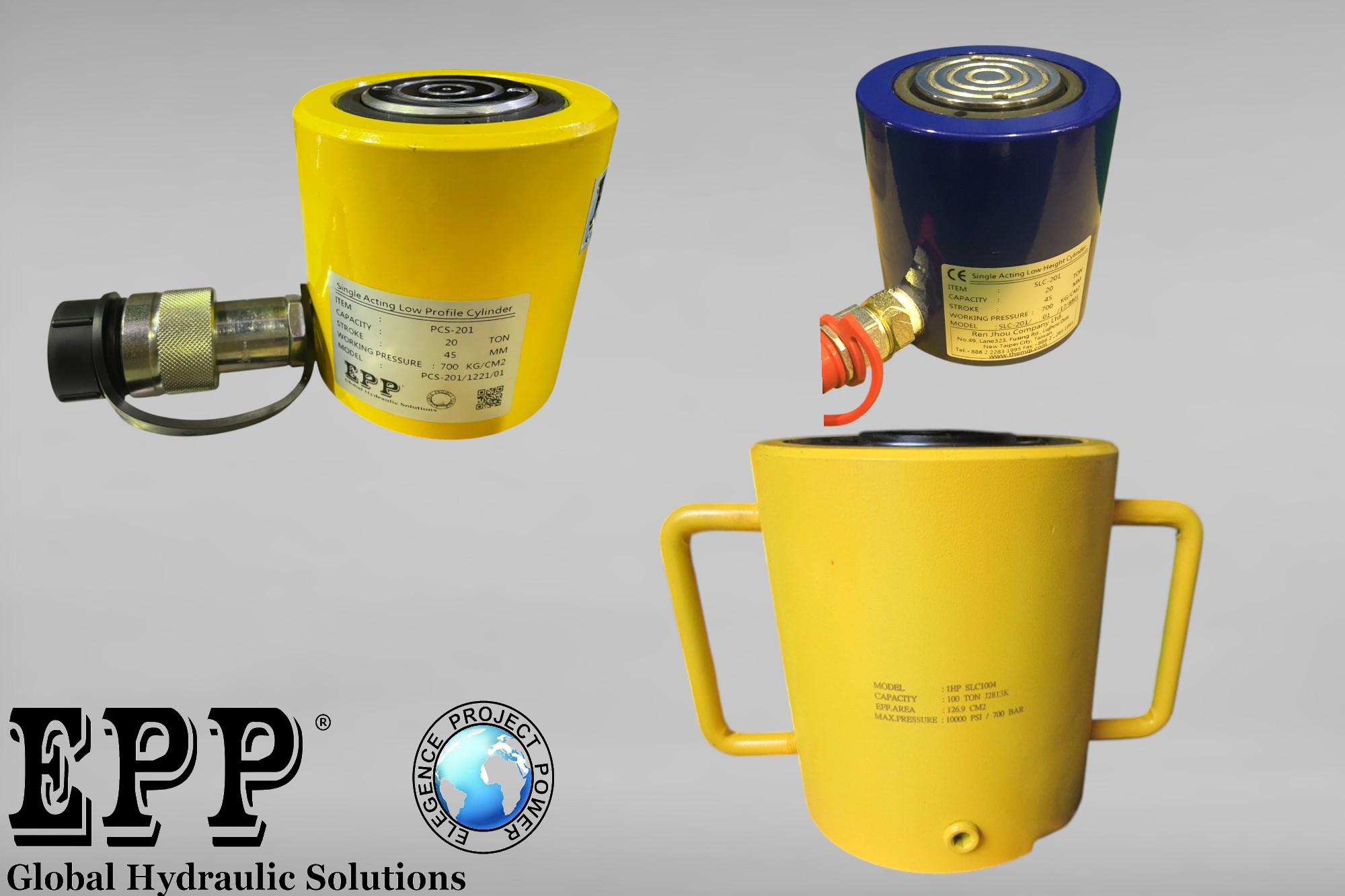

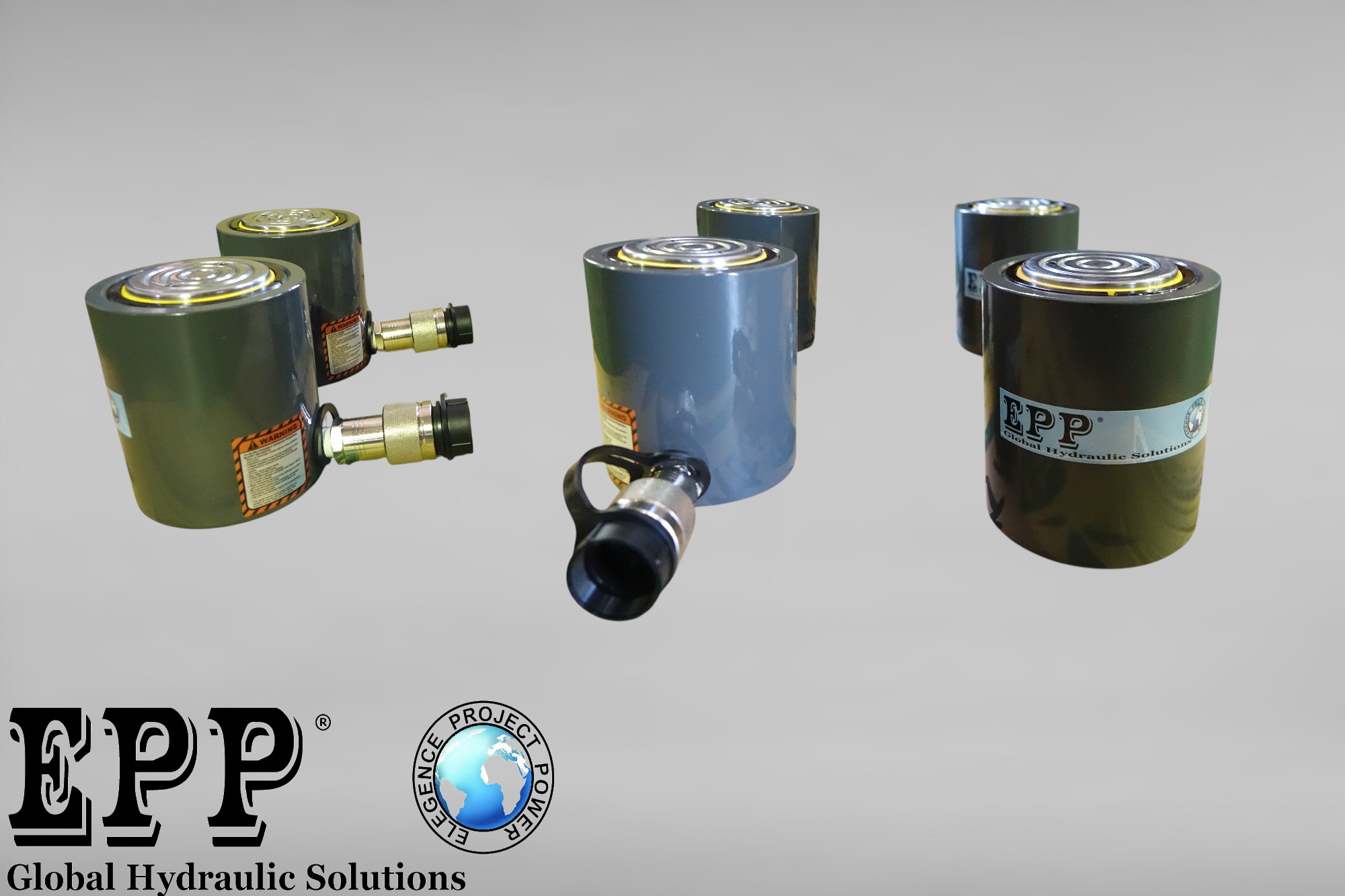

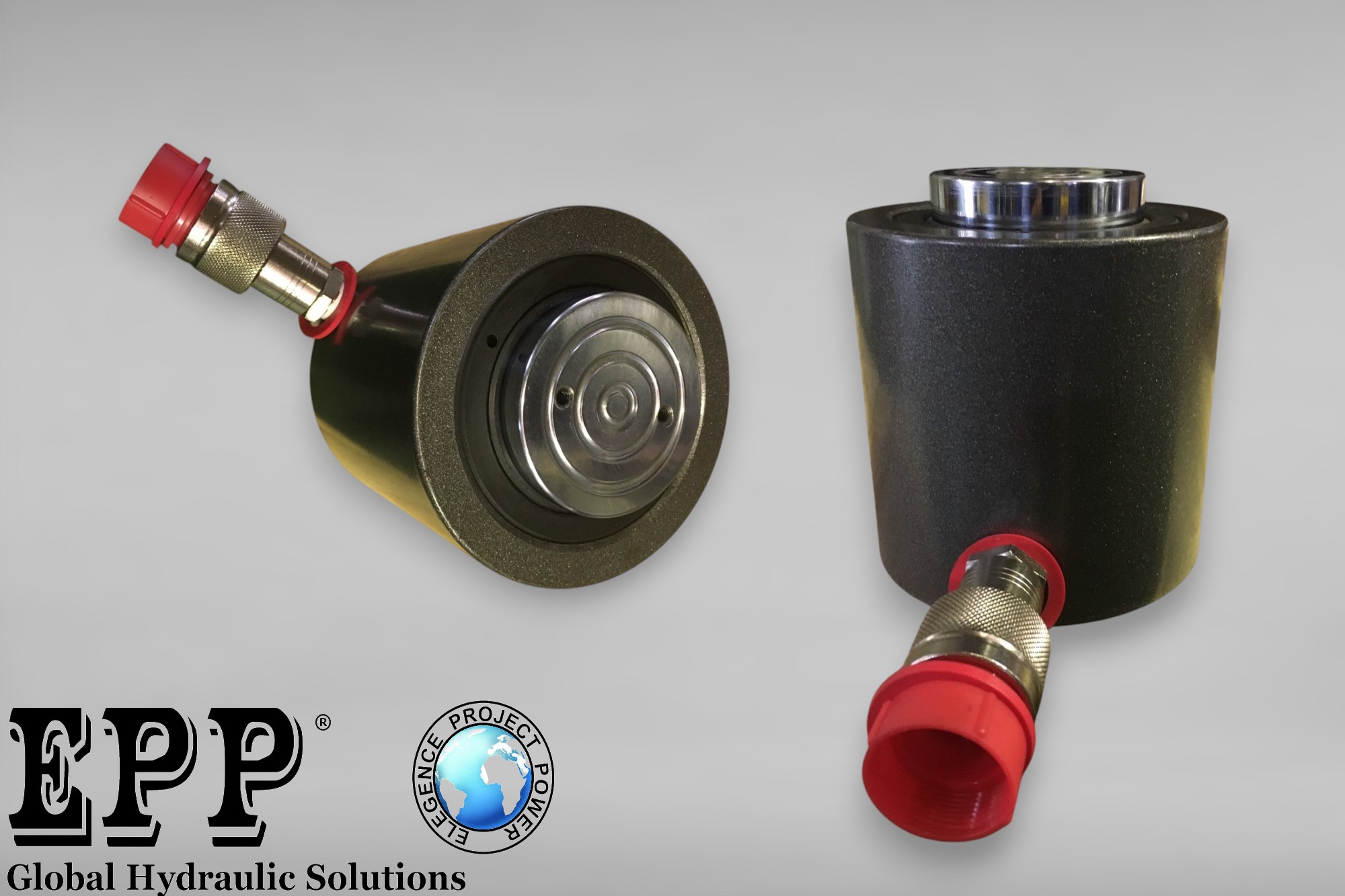

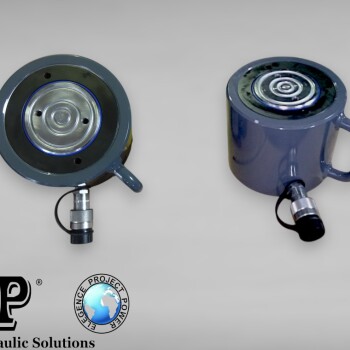

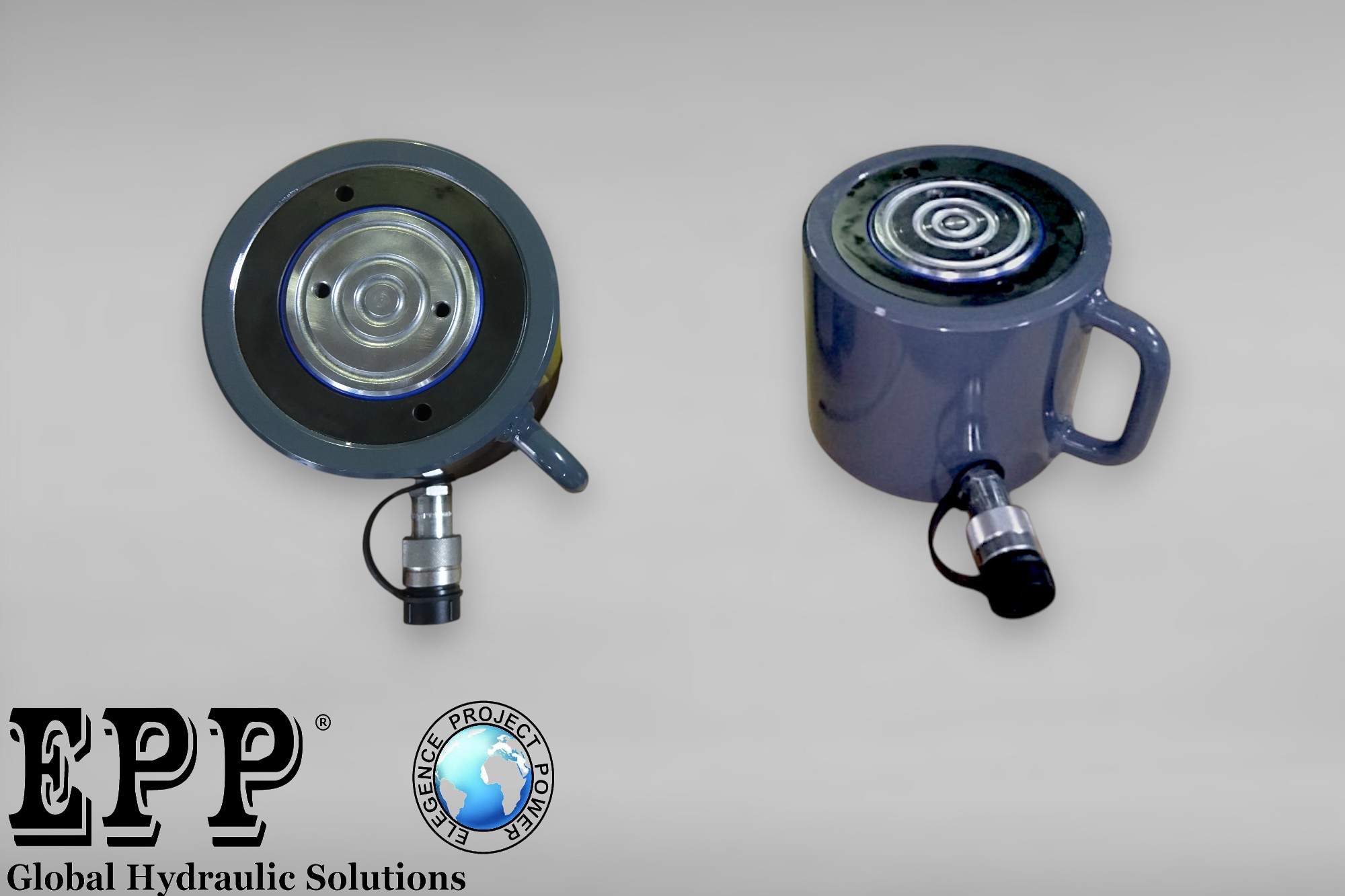

Single Acting Low Height Cylinder
|
Model
|
Cylinder
Capacity
(ton)
|
Stroke
(mm)
|
Effective Area(cm2) |
Collap.
Height
(mm)
|
Outside
Dia.
(mm)
|
Cylinder
Bore Dia.
(mm)
|
Weight(kg)
|
| SLC-101 |
10
|
38
|
14.5 | 88 | 69 |
42.9
|
4.1
|
| SLC-201 |
20
|
45 | 28.7 | 98 | 92 |
60.5
|
5.0
|
| SLC-302 |
30
|
62
|
42.1 | 117 | 101 |
73.2
|
6.8
|
| SLC-502 | 50 | 60 | 62.1 | 122 | 124 | 8.9 | 10.9 |
| SLC-1002 | 100 | 57 | 126.7 | 141 | 165 | 127.0 | 22.7 |
