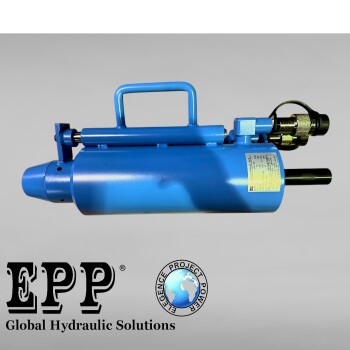

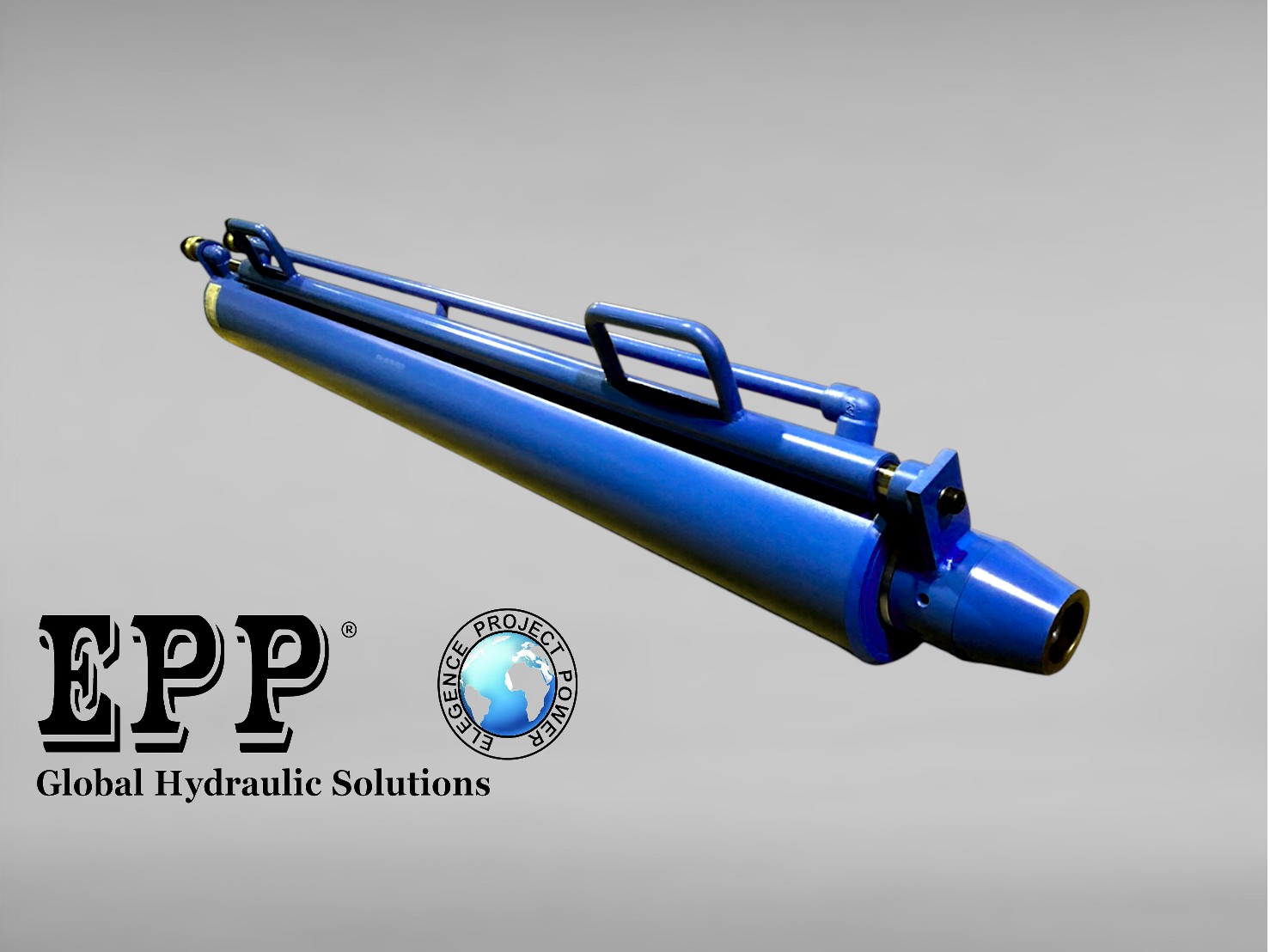

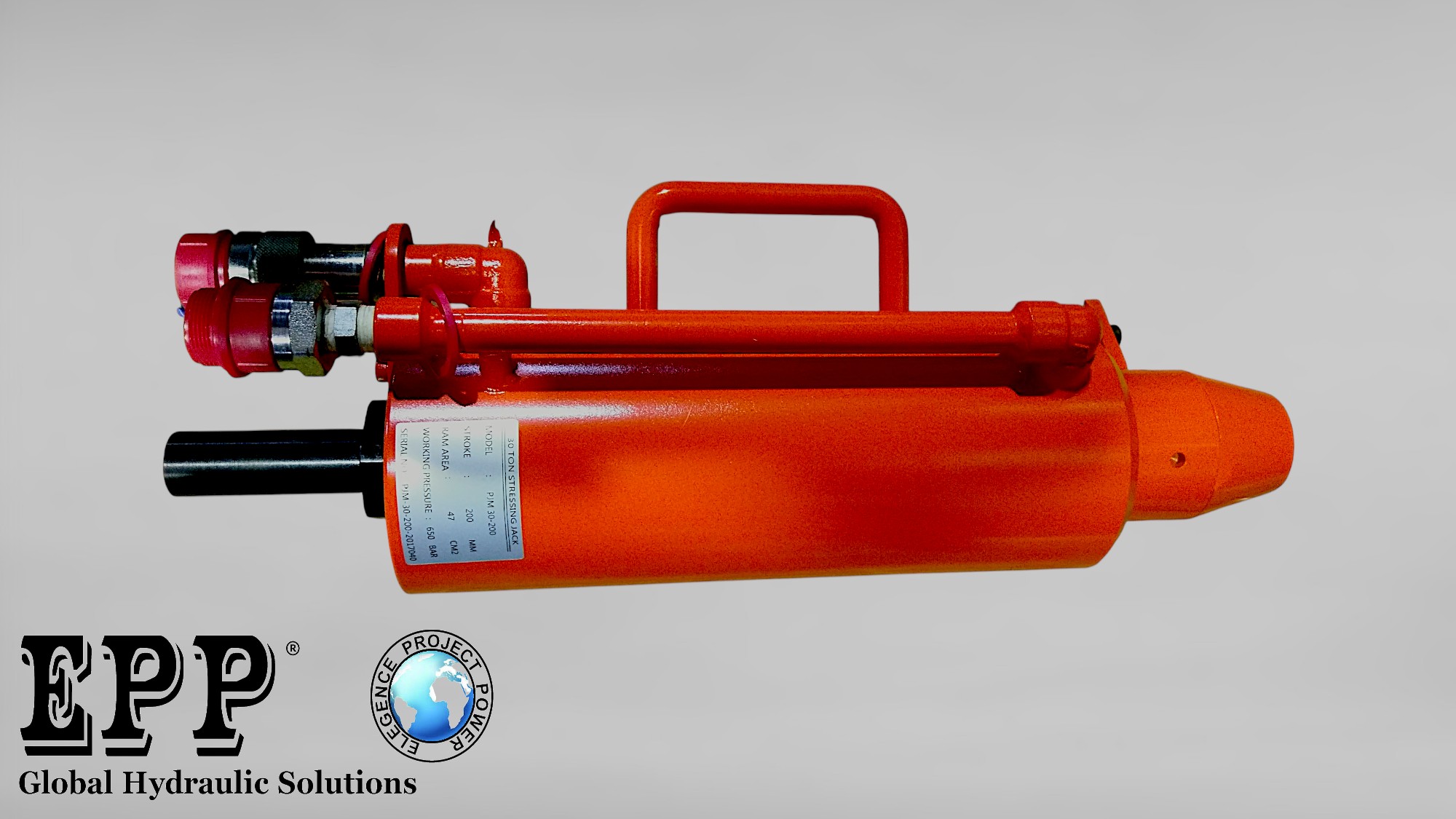

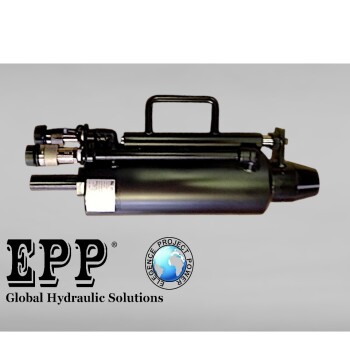

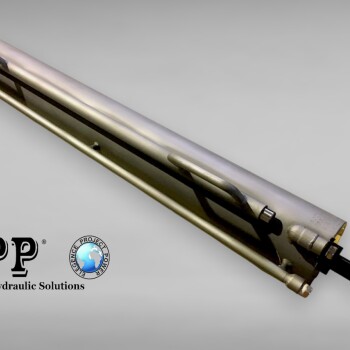

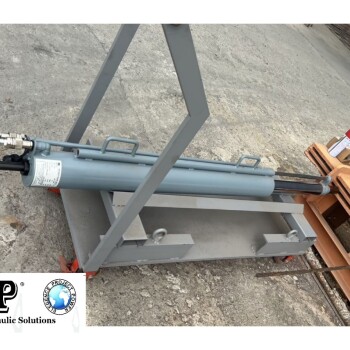

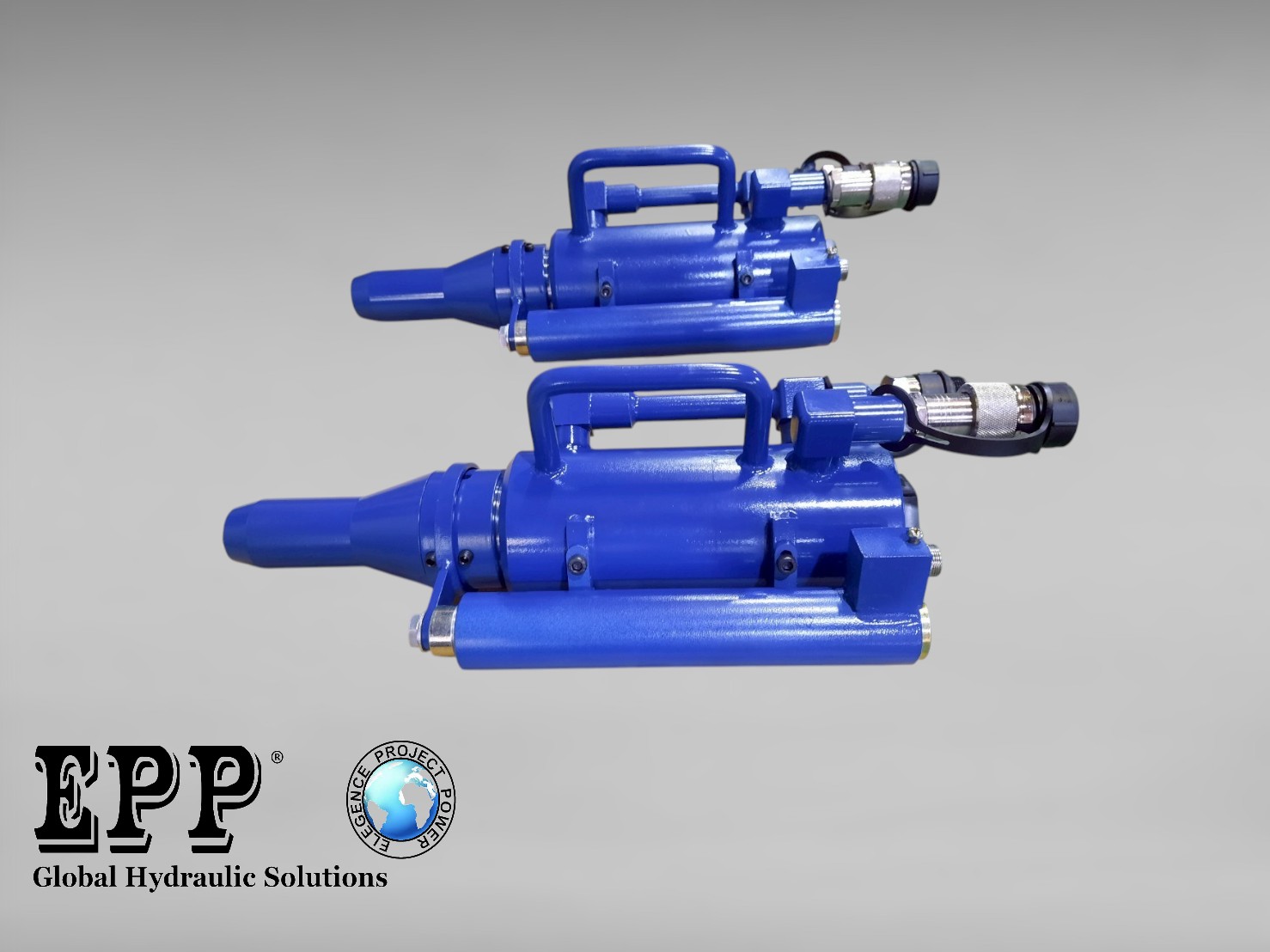

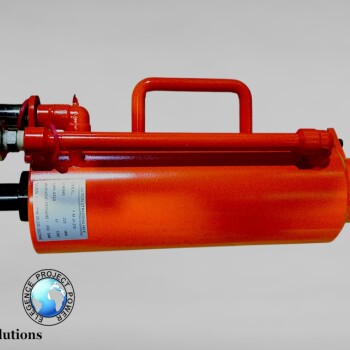

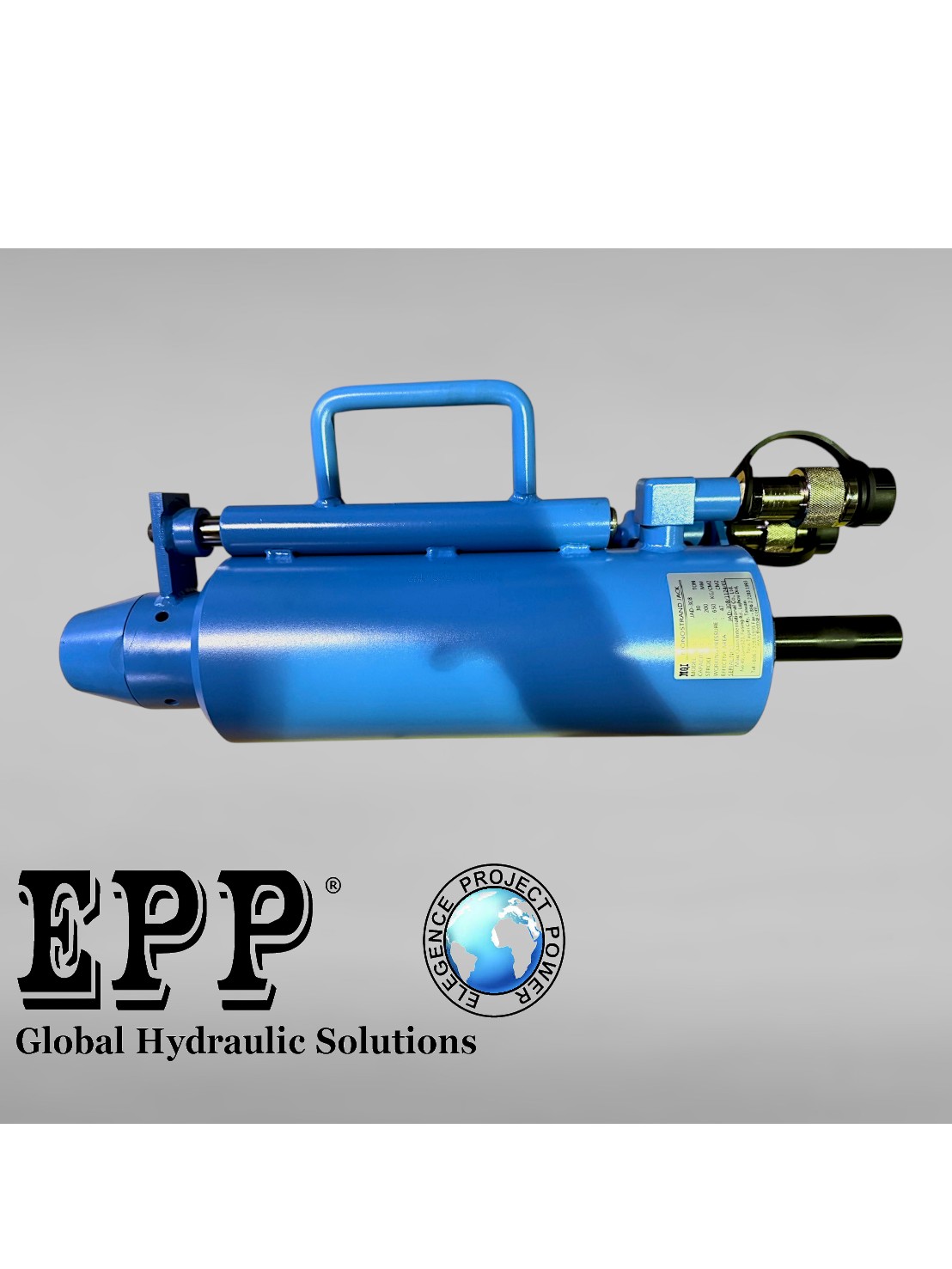

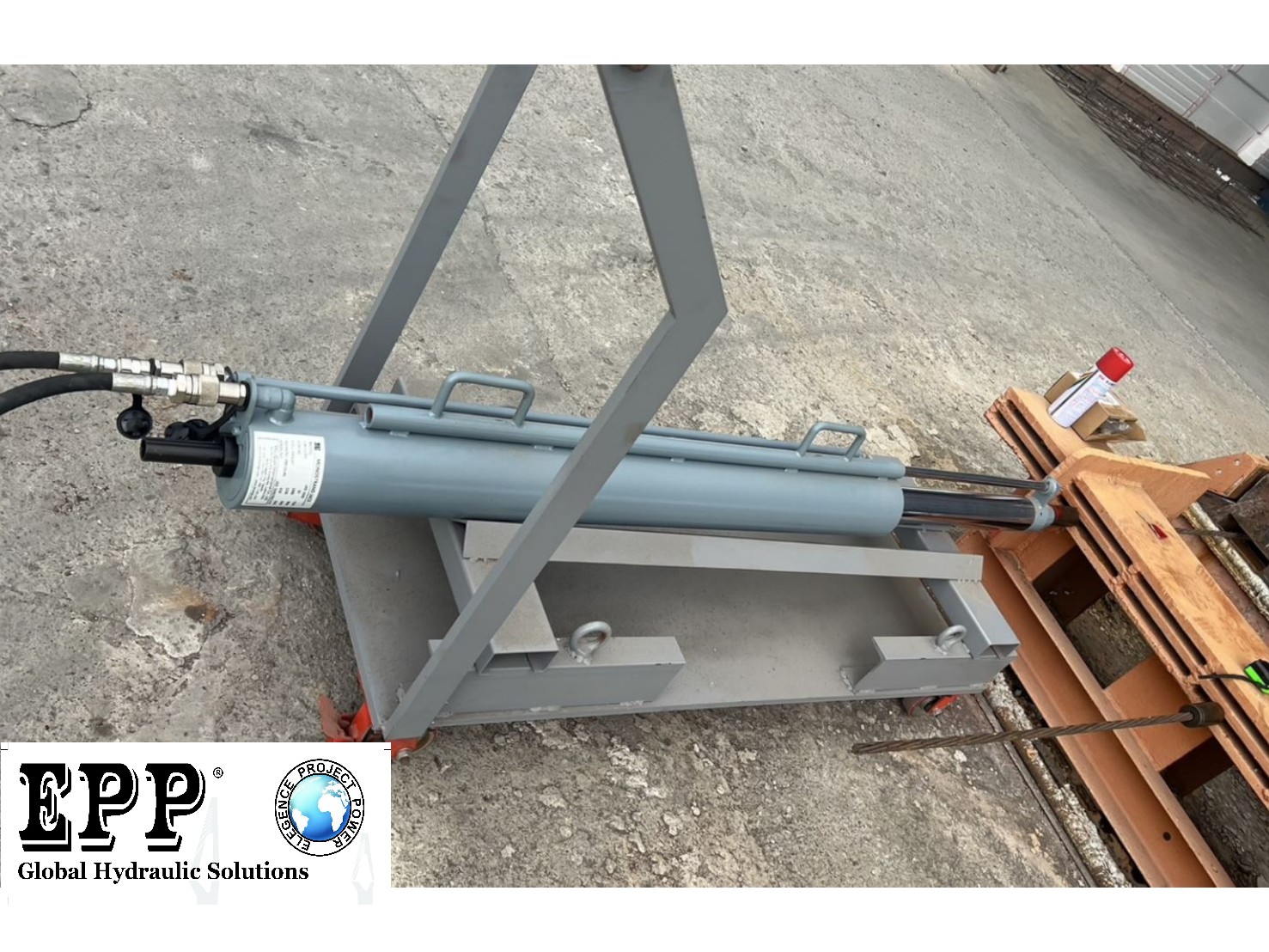

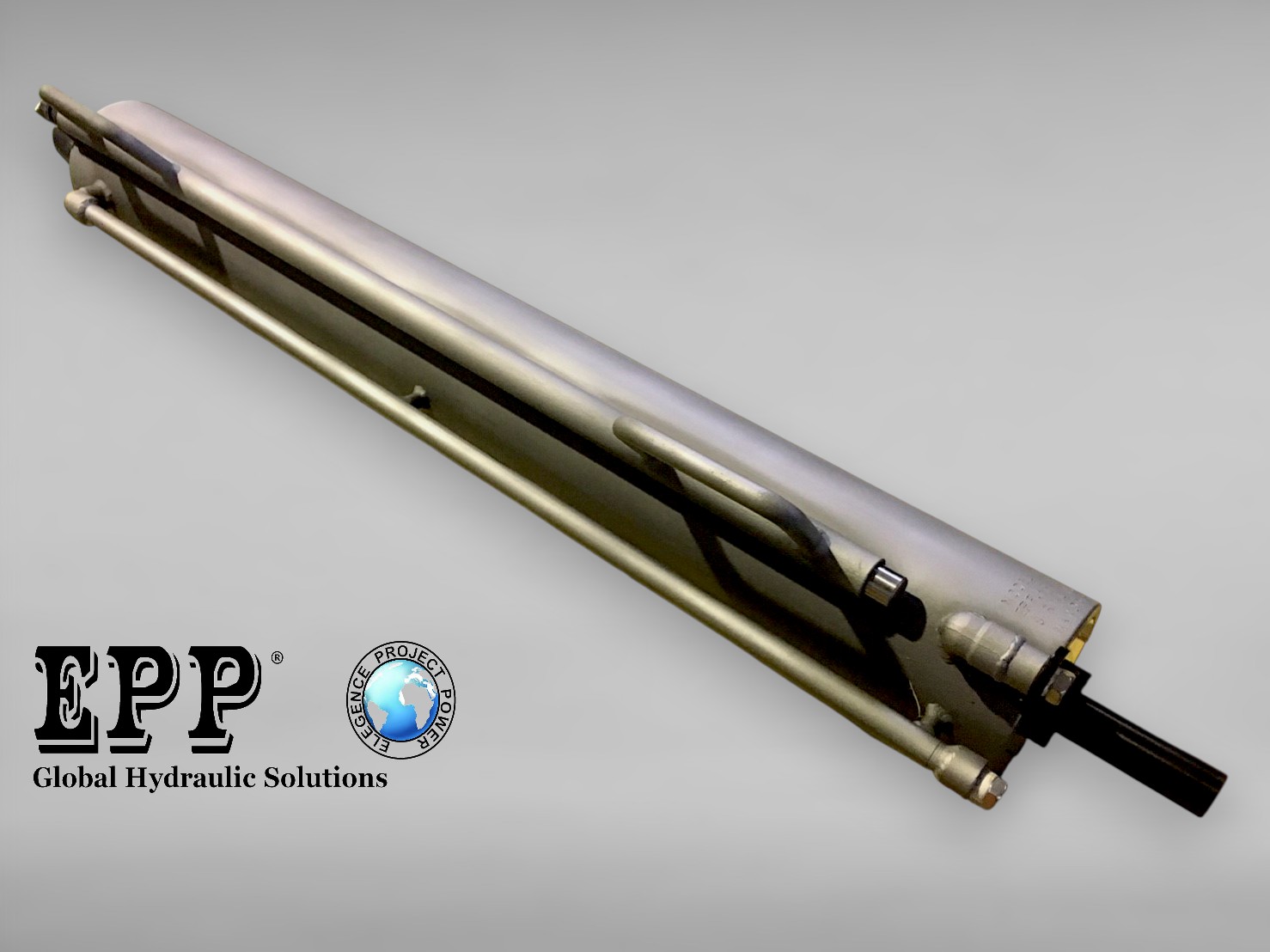

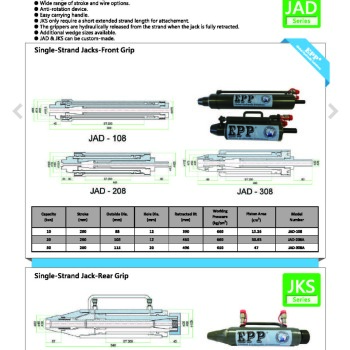

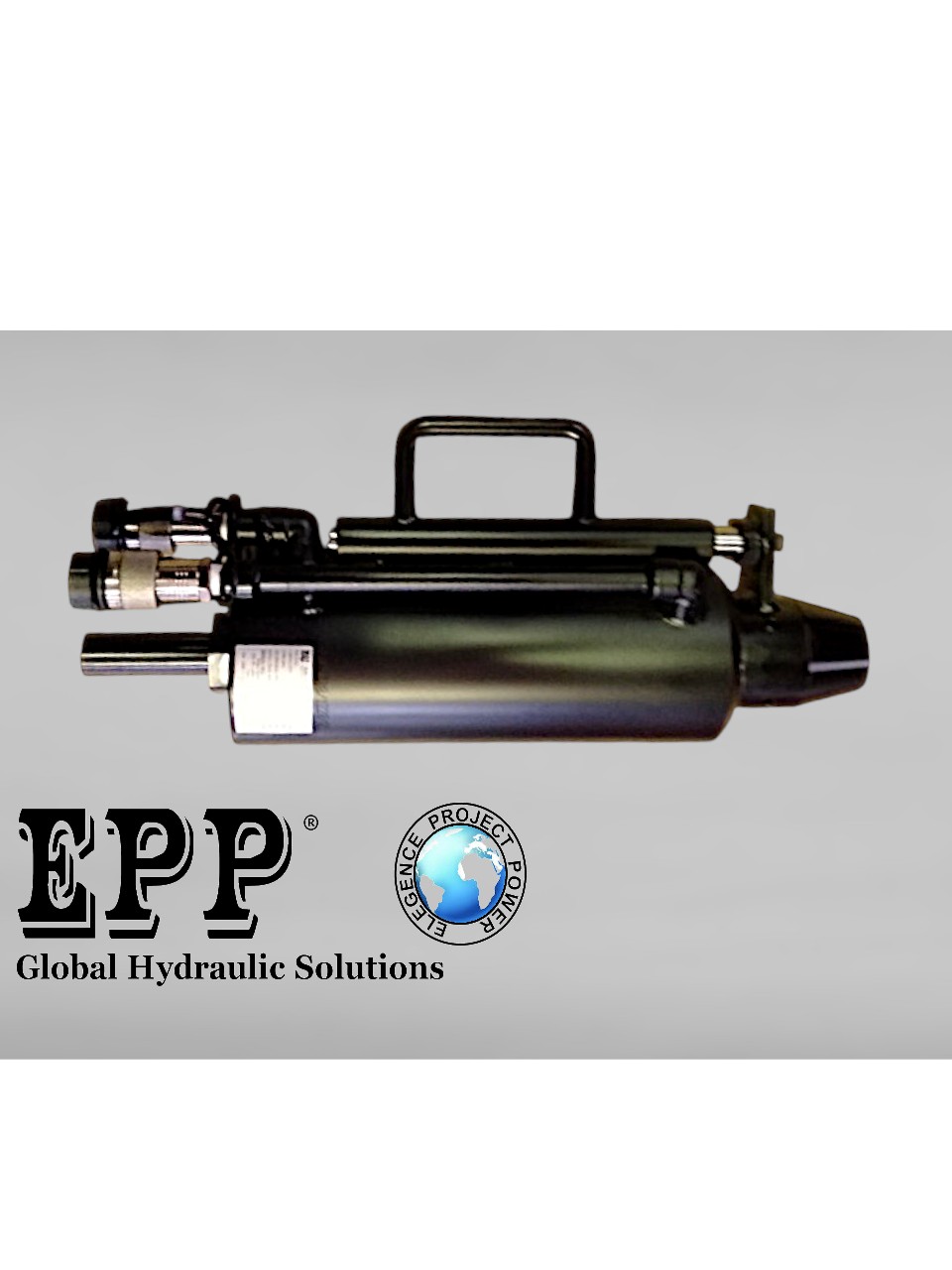

Single-Strand Pulling Jack (Front-Pulling Type)

Lightweight and compact design

Wide range of stroke and strand options

Equipped with anti-rotation device

Easy to carry and operate

JKS requires only a short extended strand length for attachment

Grippers are hydraulically released from the strand when the jack is fully retracted

JAD & JKS models can be customised upon request

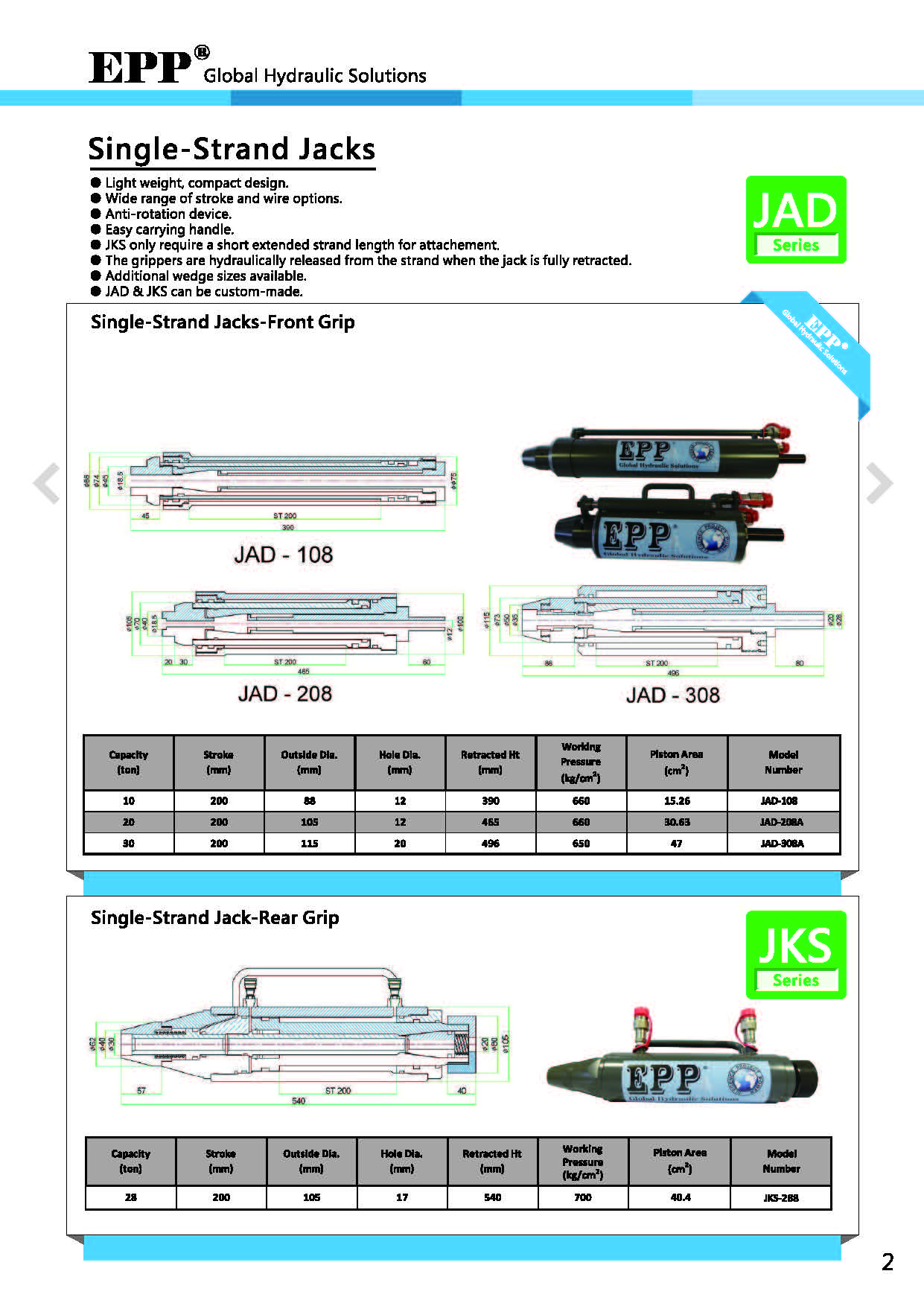

Model	Capacity(ton)	Stroke(mm)	Outside Dia(mm)	Hold Dia(mm)	Closed Height(mm)	Working Pressure(kg/c㎡)	Piston Area A(c㎡)
JAD-108	10	200	88	12	390	660	15.26
JAD-208	20	200	105	12	465	660	30.63
JAD-308	30	200	115	20	496	650	47

JAD
