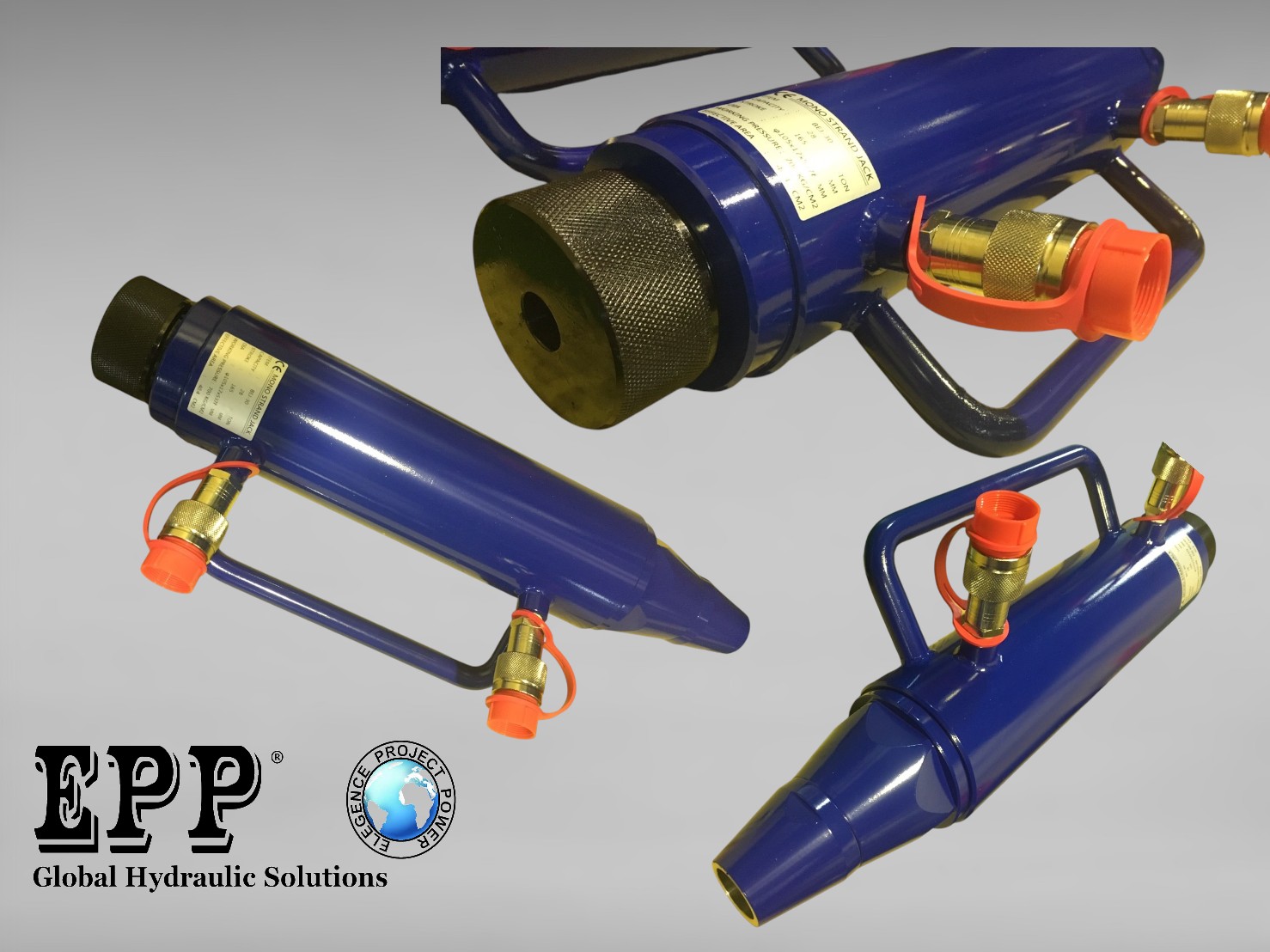

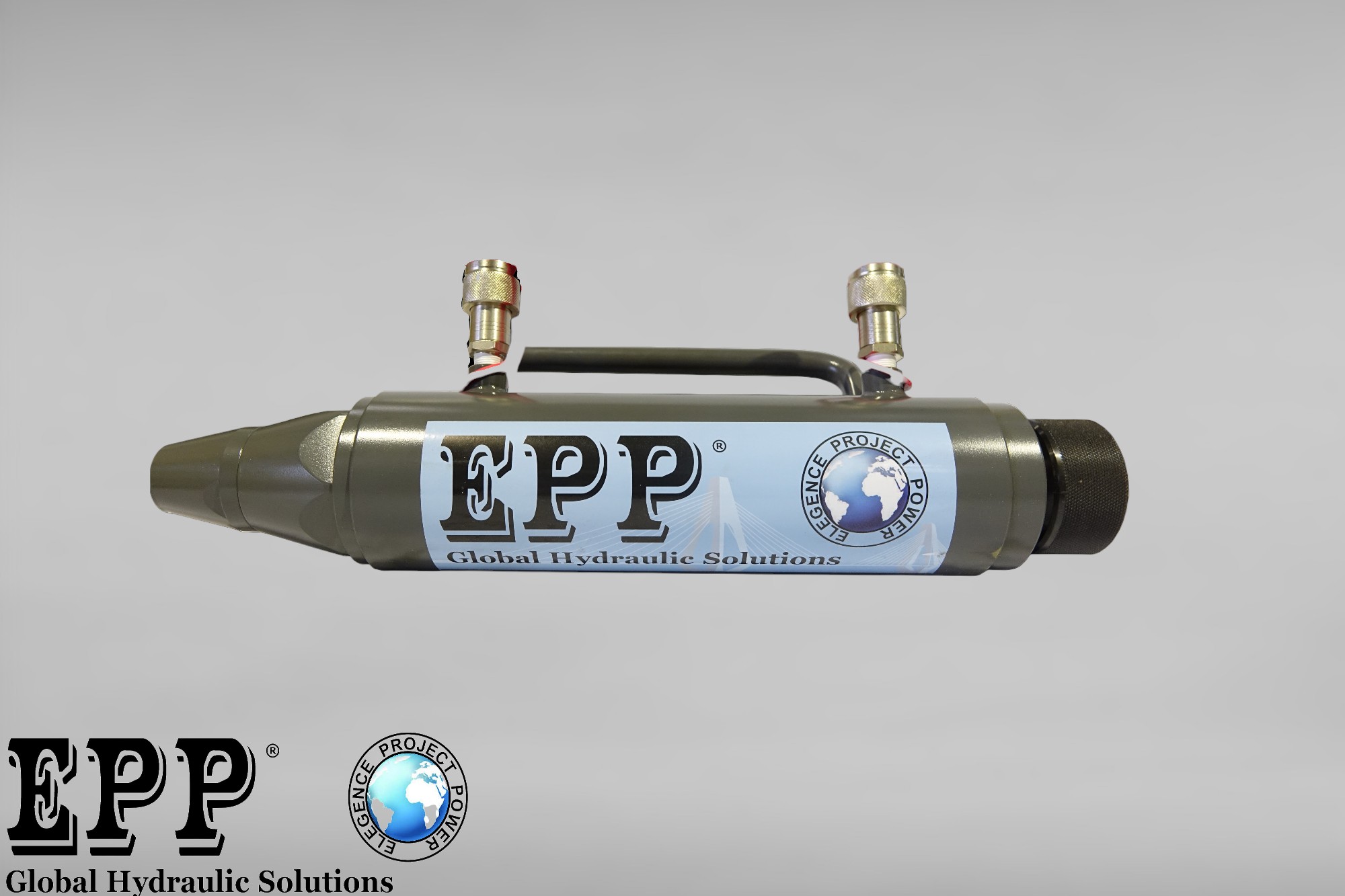

Single-Strand Pulling Jack (Rear-Pulling Type)

Lightweight and compact design

Wide range of stroke and strand options

Equipped with anti-rotation device

Easy to carry and operate

JKS requires only a short extended strand length for attachment

Grippers are hydraulically released from the strand when the jack is fully retracted

JAD & JKS models can be customised upon request

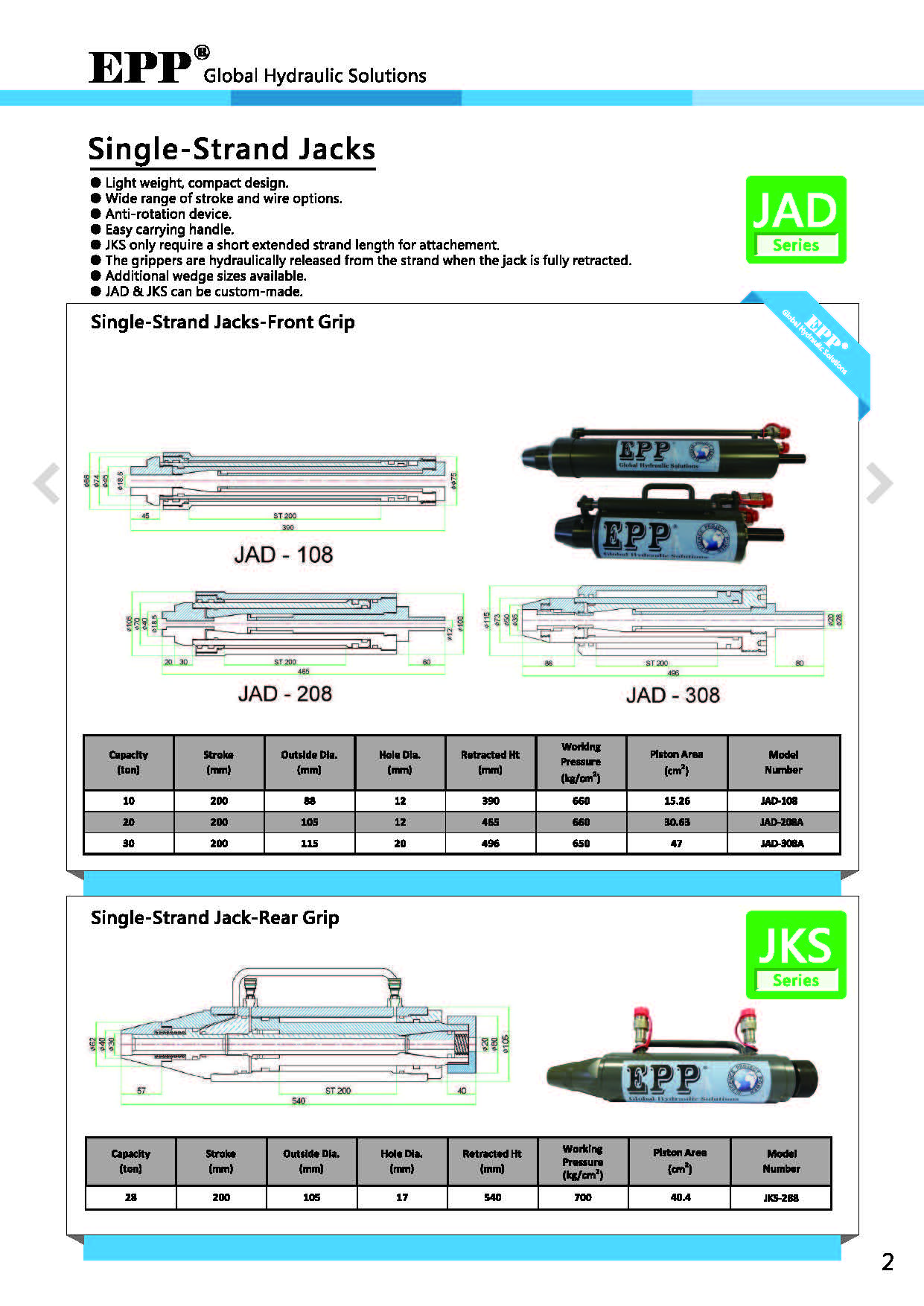

Model	Capacity (ton)	Stroke (mm)	Outside Dia (mm)	Hole Dia (mm)	Closed Height(mm)	Working Pressure(kg/c㎡)	Piston Area (c㎡)
JKS-288	28	200	105	17	540	700	40.4

JKS
