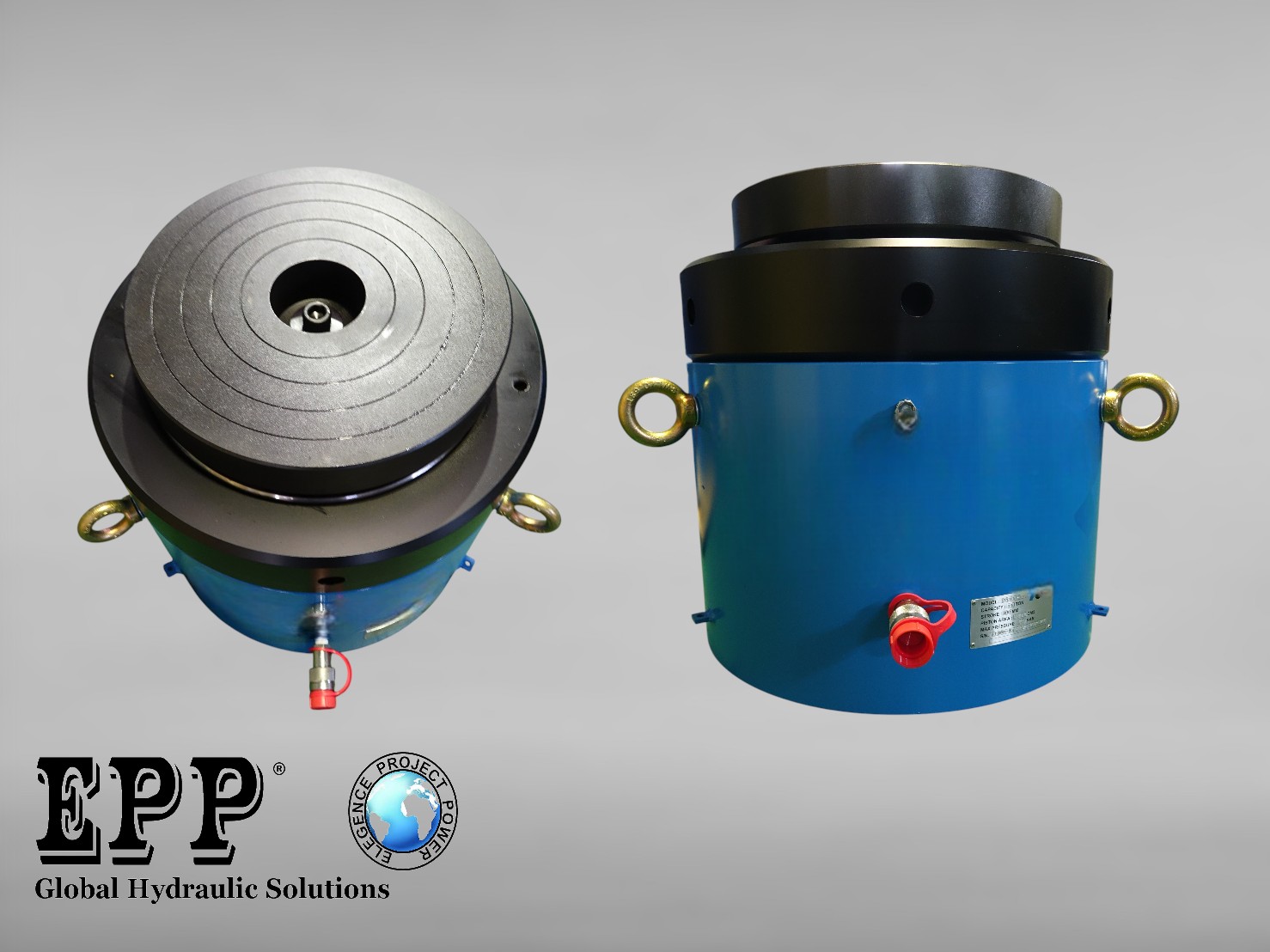

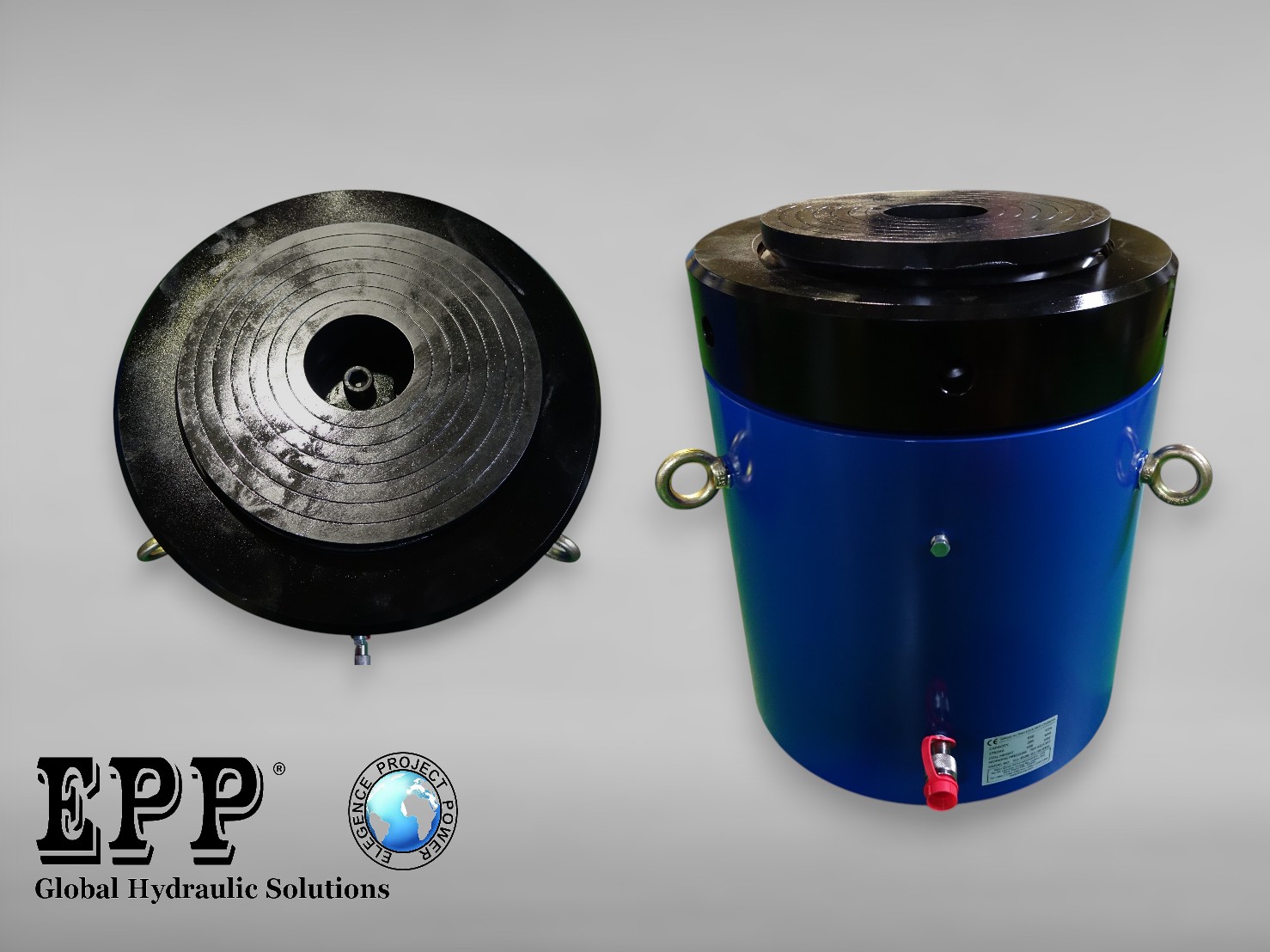

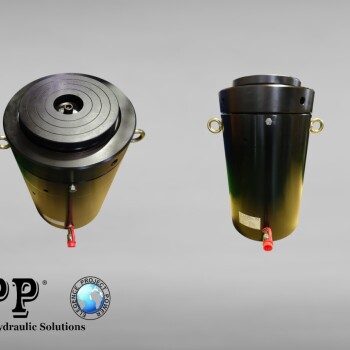

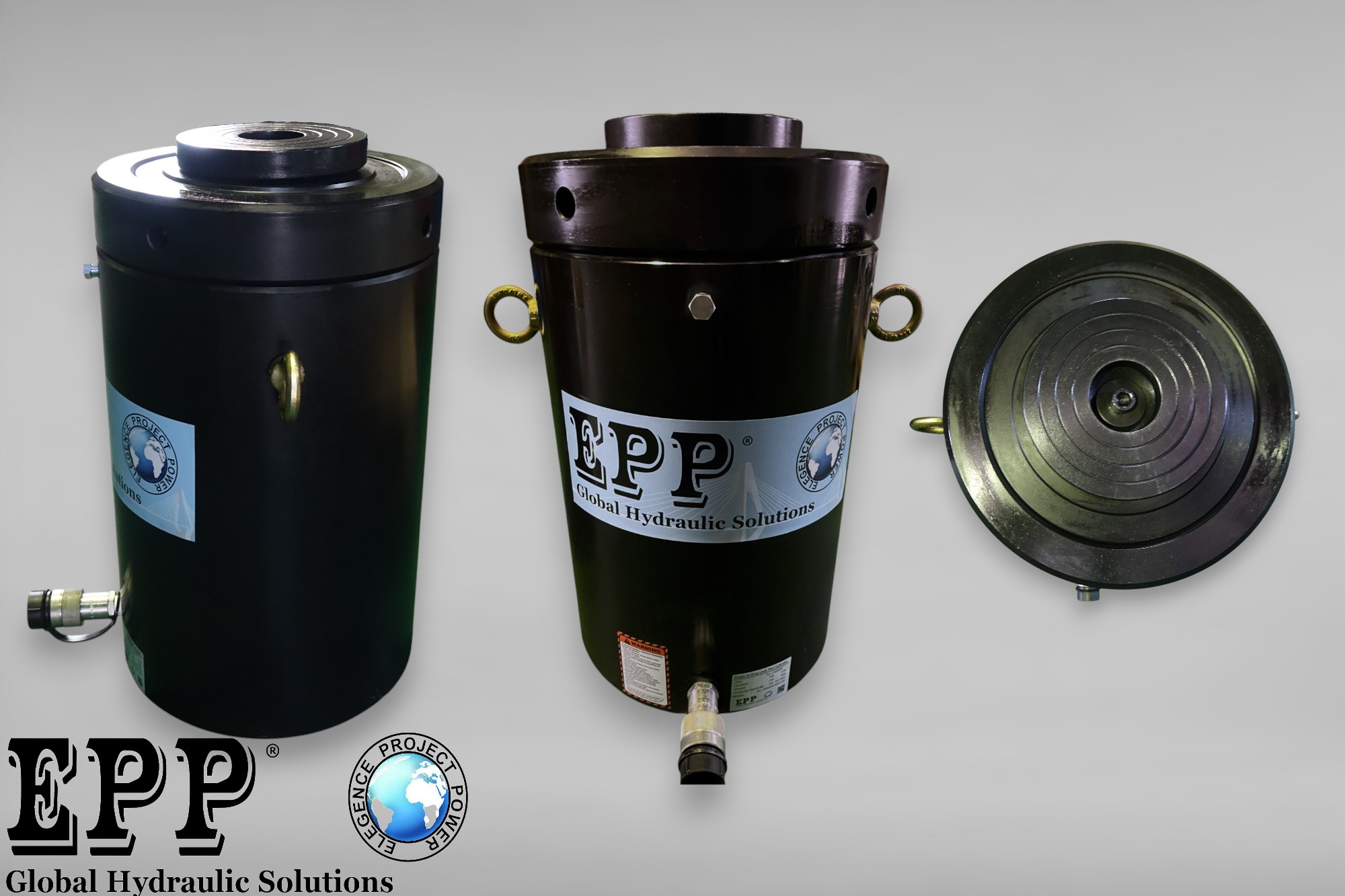

Single-acting Lock Nut Hydraulic Jack

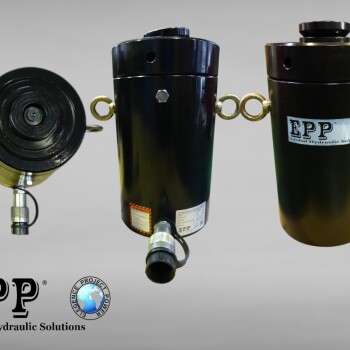

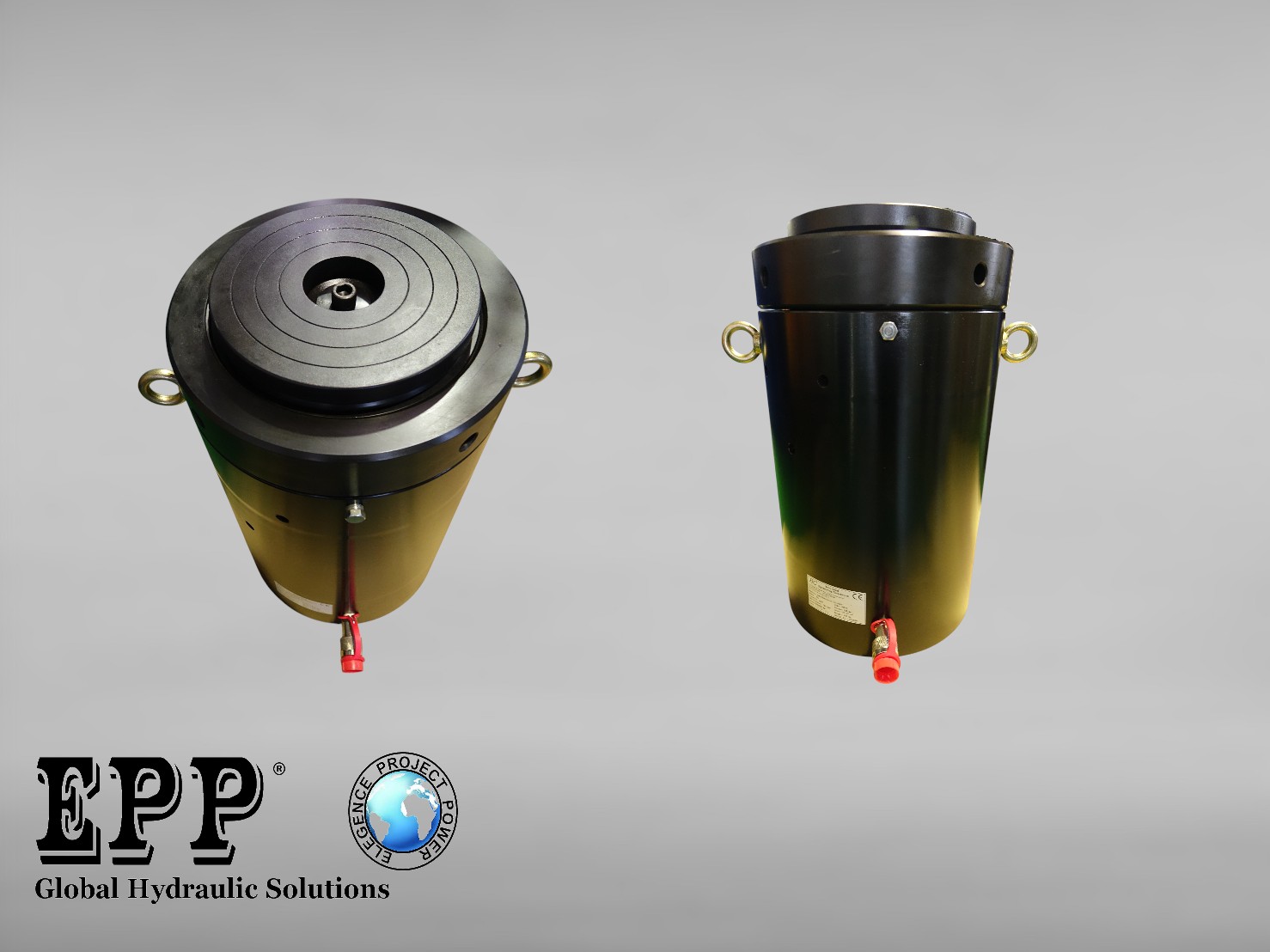

Single-Acting Lock Nut Hydraulic Jack

  • Single-acting operation with mechanical lock nut for load holding.

  • Compact and robust design for push-only applications.

  • Overflow port serves as a stroke limiter.

  • ECR-400 coupler and dust cap included with all models.

  • Plunger wiper reduces contamination, extending cylinder life.

  • Hardened grooved saddles provide secure load contact.

  • Special coating improves corrosion resistance and reduces friction.

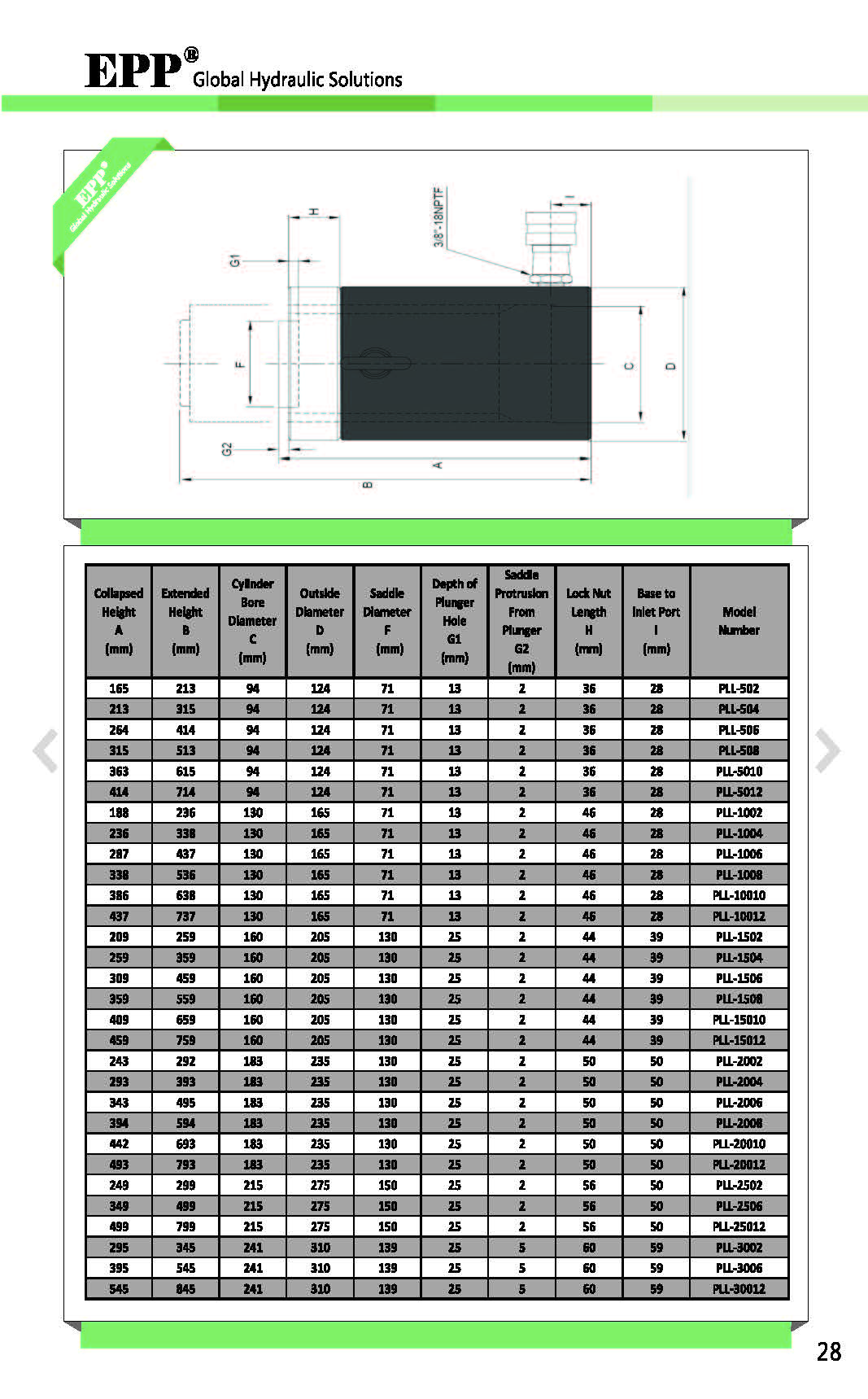

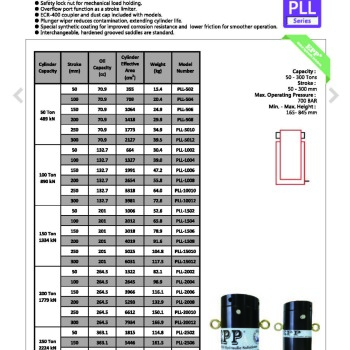

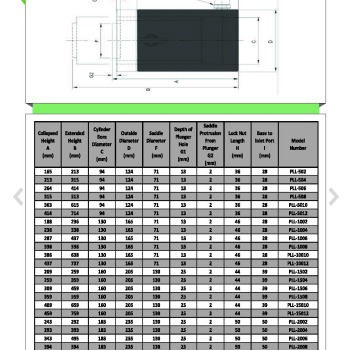

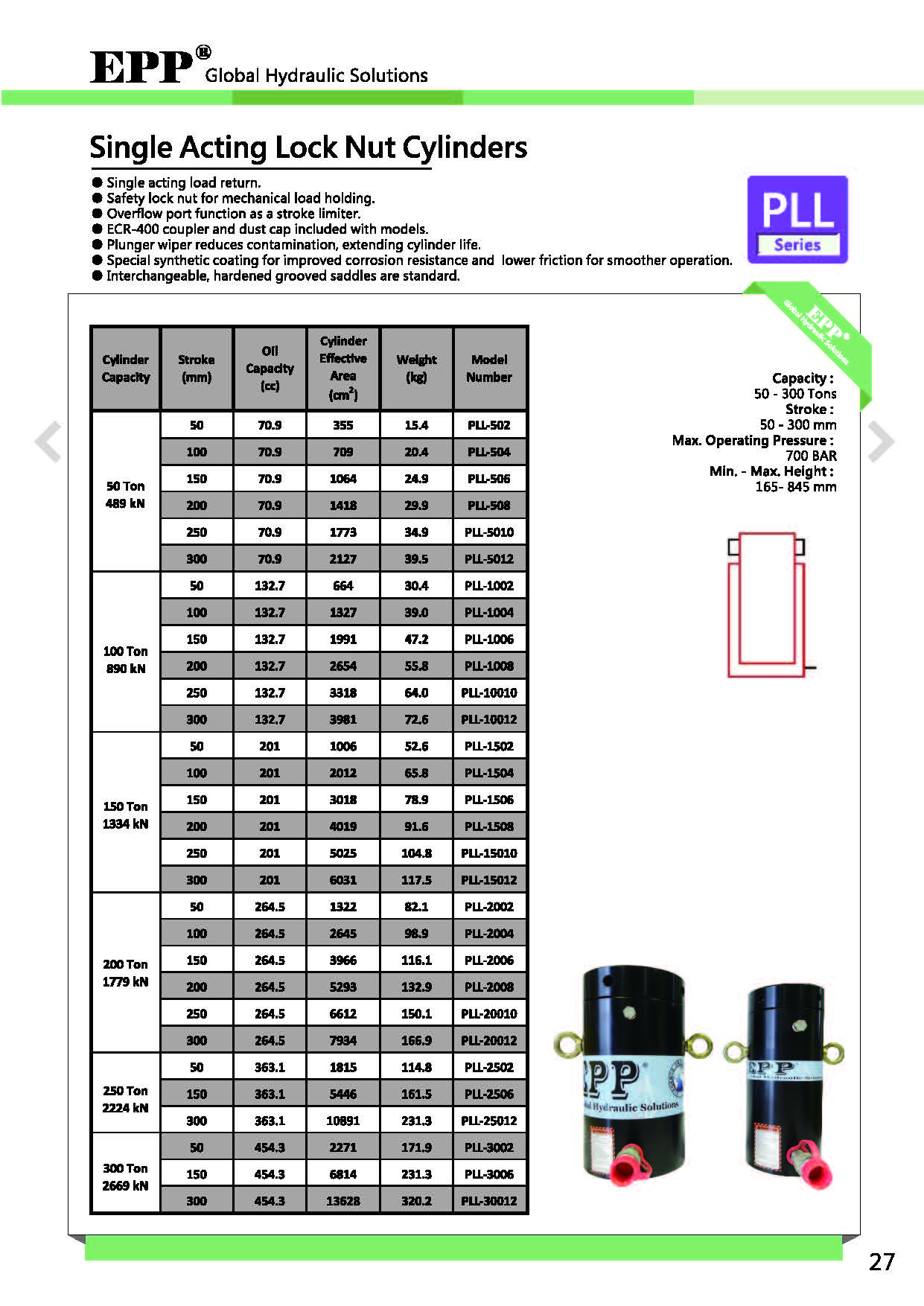

Model Capacity(ton) Stroke(mm) Outside Dia(mm) Cylinder Effective Area(c㎡) Collapsed Height (mm) Working Pressure(kg/c㎡) Lock Nut Length(mm)
PLL-502 50 50 124 355 165 700 36
PLL-504 50 100 124 709 213 700 36
PLL-506 50 150 124 1064 264 700 36
PLL-508 50 200 124 1418 315 700 36
PLL-5010 50 250 124 1773 363 700 36
PLL-5012 50 300 124 2127 414 700 36
PLL-1002 100 50 165 664 200 700 46
PLL-10012 100 300 165 3918 437 700 46
PLL-1502 150 50 205 1006 209 700 44
PLL-15012 150 300 205 6031 459 700 44
PLL-2002 200 50 235 1322 243 700 50
PLL-20012 200 300 235 7934 493 700 50
PLL-2502 250 50 275 1815 249 700 56
PLL-25012 250 300 275 10891 499 700 56
PLL-3002 300 50 310 2271 295 700 60
PLL-30012 300 300 310 13628 545 700 60
