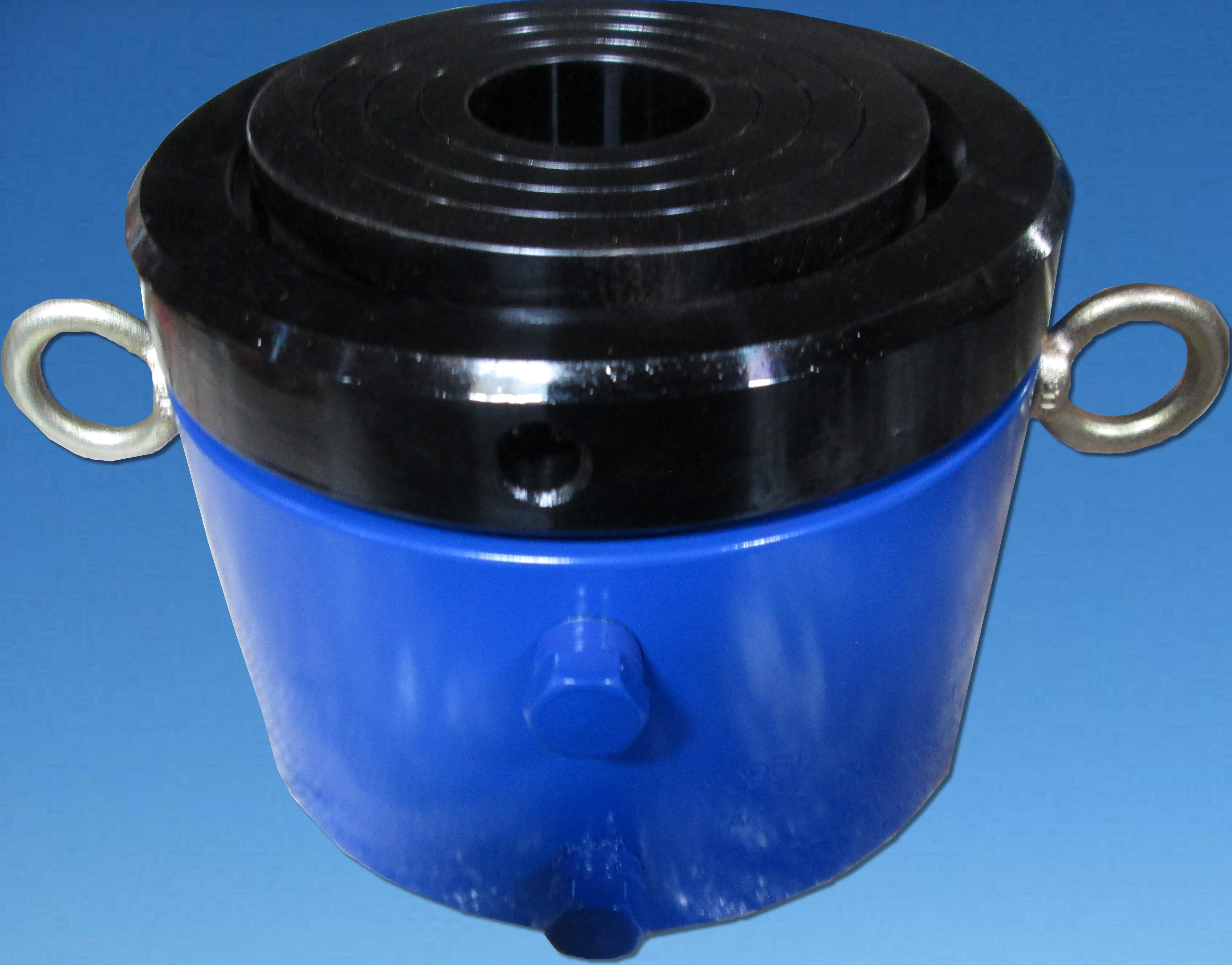

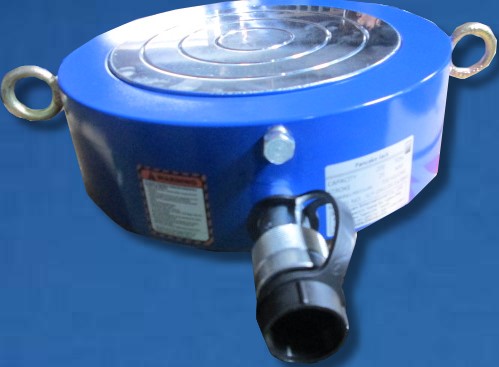

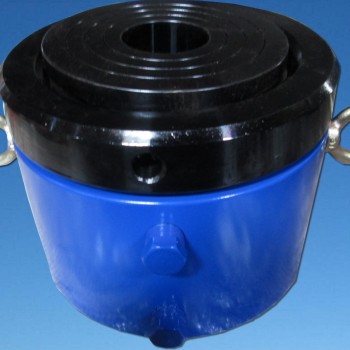

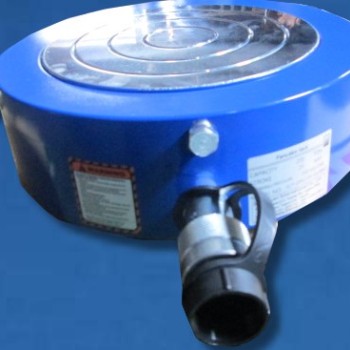

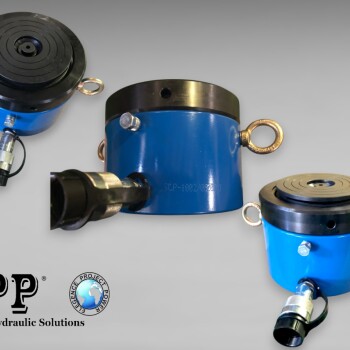

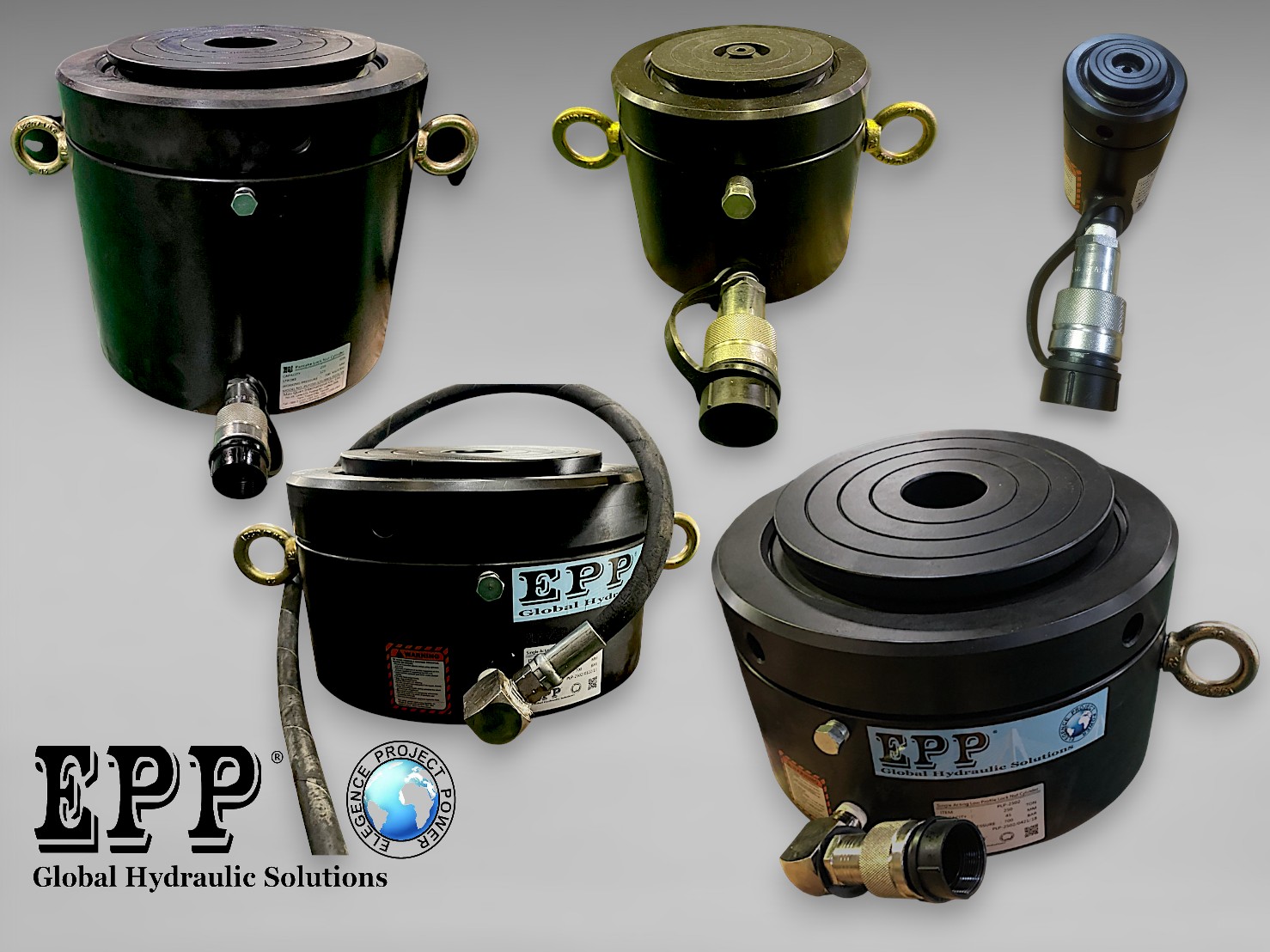

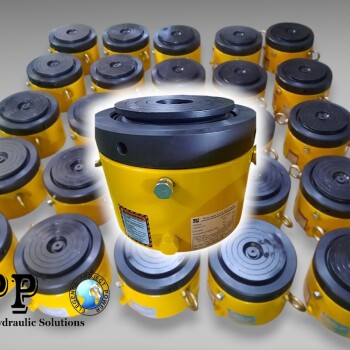

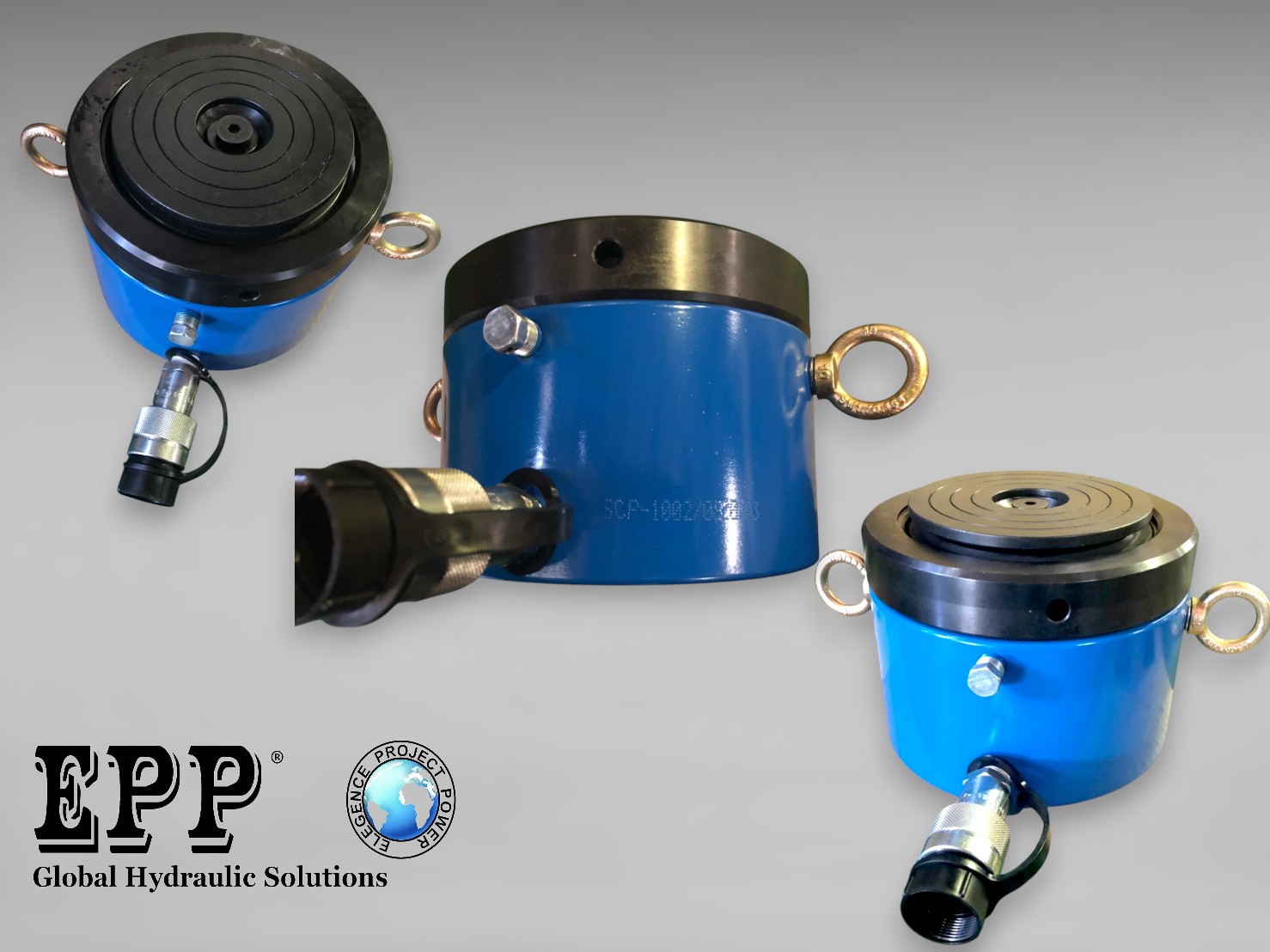

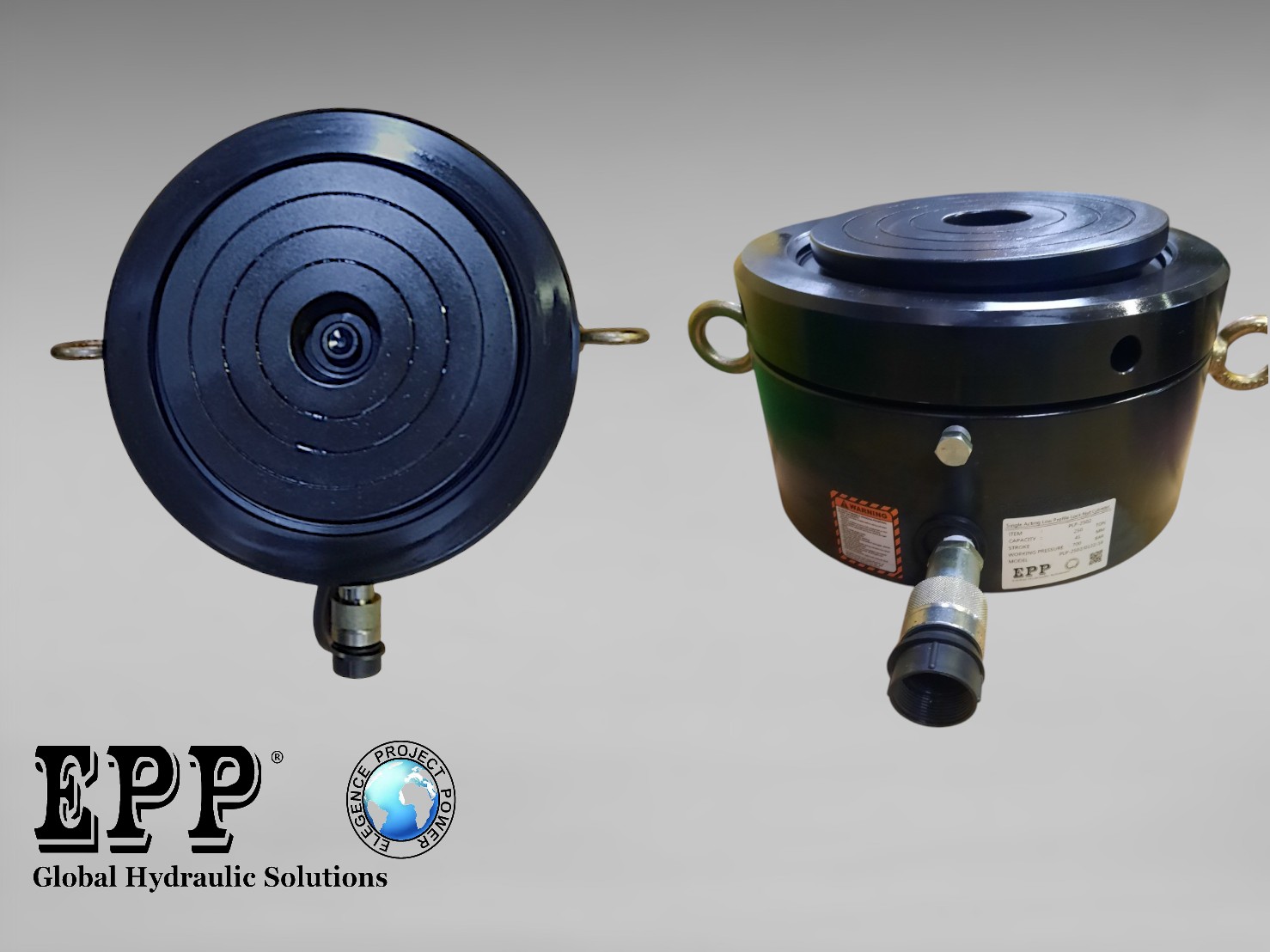

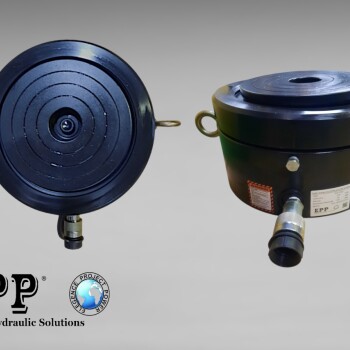

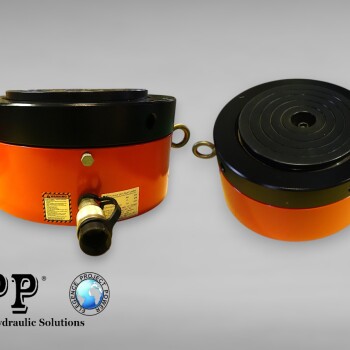

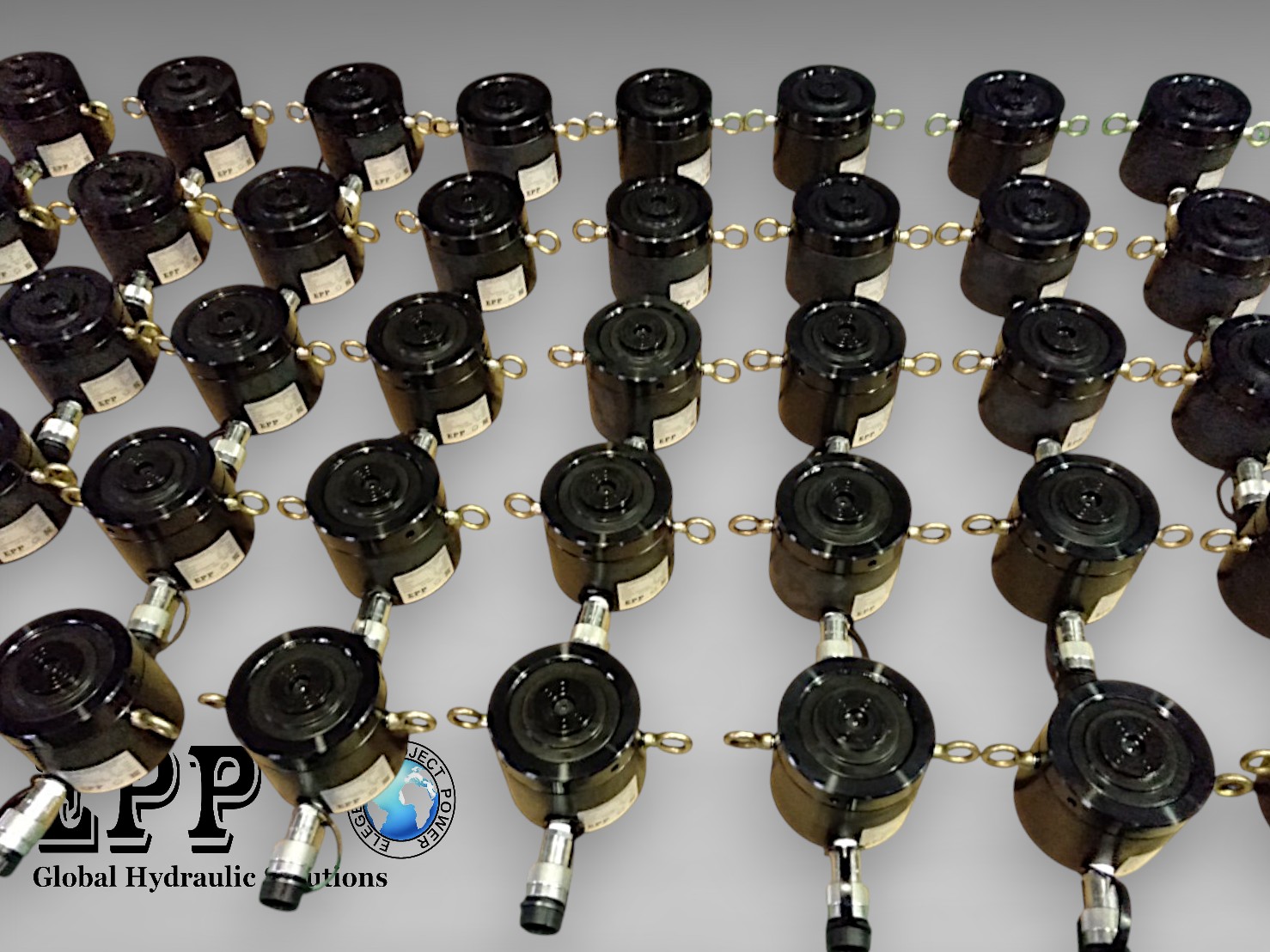

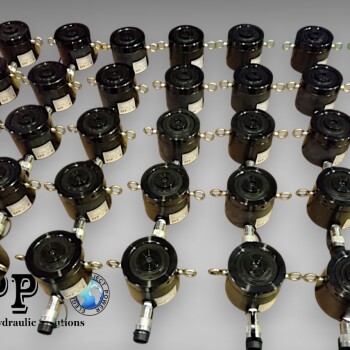

Extra-Thin Threaded Jack
Manufactured by process :
- Use only area where limited space
- Mechanical Safety Lock Ring with thread to sustain the loading
- 5% Swivel design to withstand side loading
- High Strength metal alloy provides high durability
- Red visible marking to ensure within Piston Range

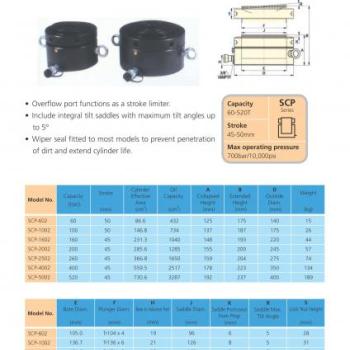

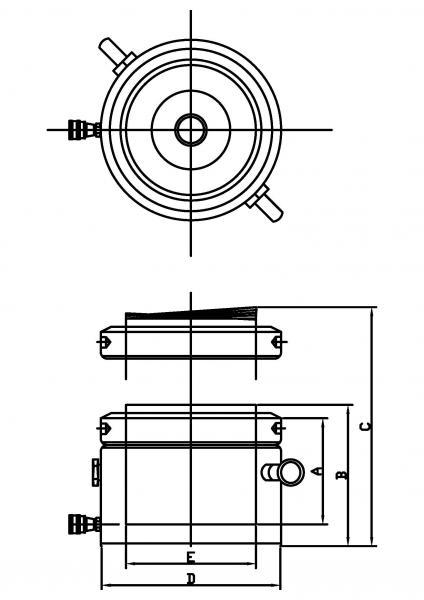

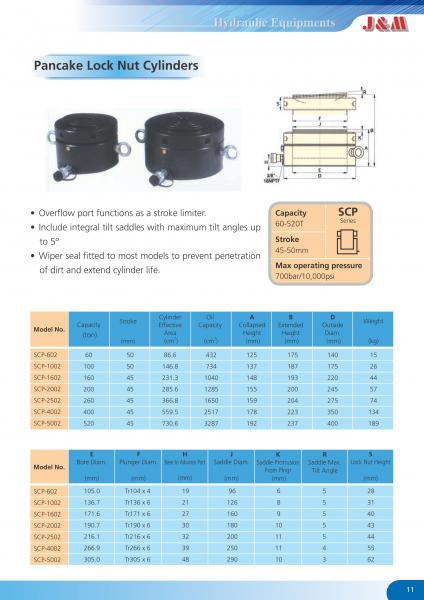

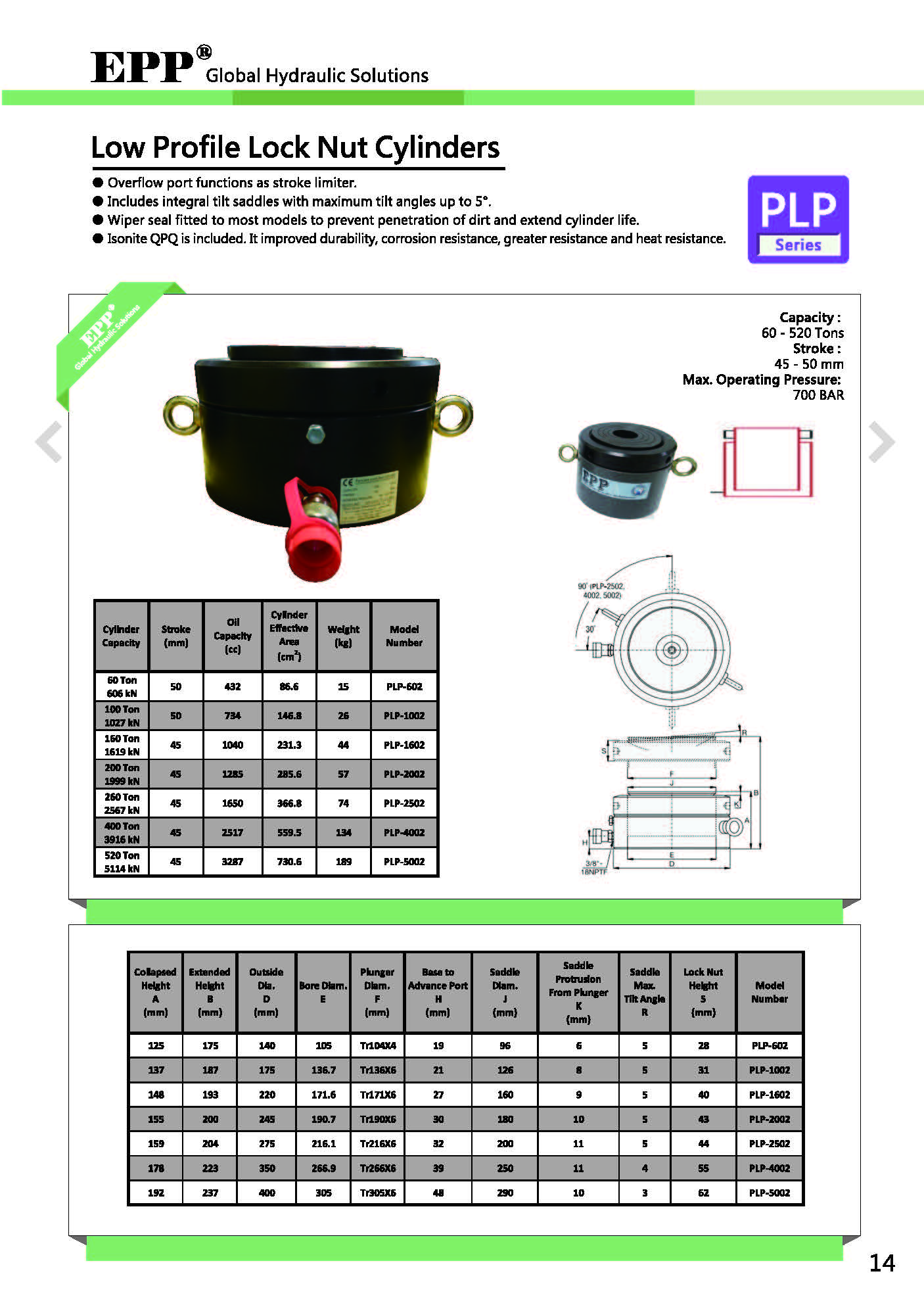

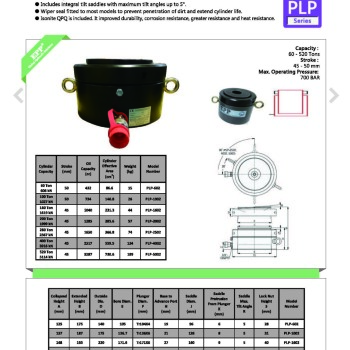

| Model | Capacity (ton) | Stroke A mm |
Coll Height B mm |
Ext Height C mm |
Outs. Dia D mm |
Cyl. Bore Dia E mm |
Weight kg |
|---|---|---|---|---|---|---|---|
| SCP-602 | 60 | 50 | 125 | 175 | 140 | 105.0 | 15 |
| SCP-1002 | 100 |
50
|
137
|
187
|
140
|
136.7
|
26
|
| SCP-1602 | 160 |
45
|
148
|
193
|
175
|
171.6
|
44
|
| SCP-2002 | 200 |
45
|
155
|
200
|
220
|
190.7
|
57
|
| SCP-2502 | 250 |
45
|
159
|
204
|
245
|
216.1
|
74
|
| SCP-4002 | 400 |
45
|
178
|
223
|
275
|
266.9
|
134
|
| SCP-5002 | 520 |
45
|
192
|
237
|
400
|
305.0
|
189
|
Note : Custom-made Jacks according to clients requirements for shape, size, capacity and loading.
