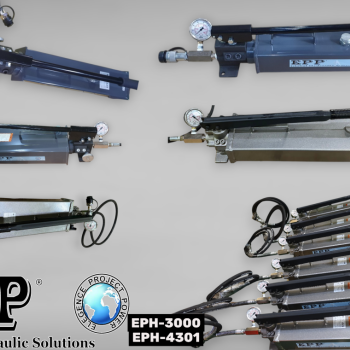

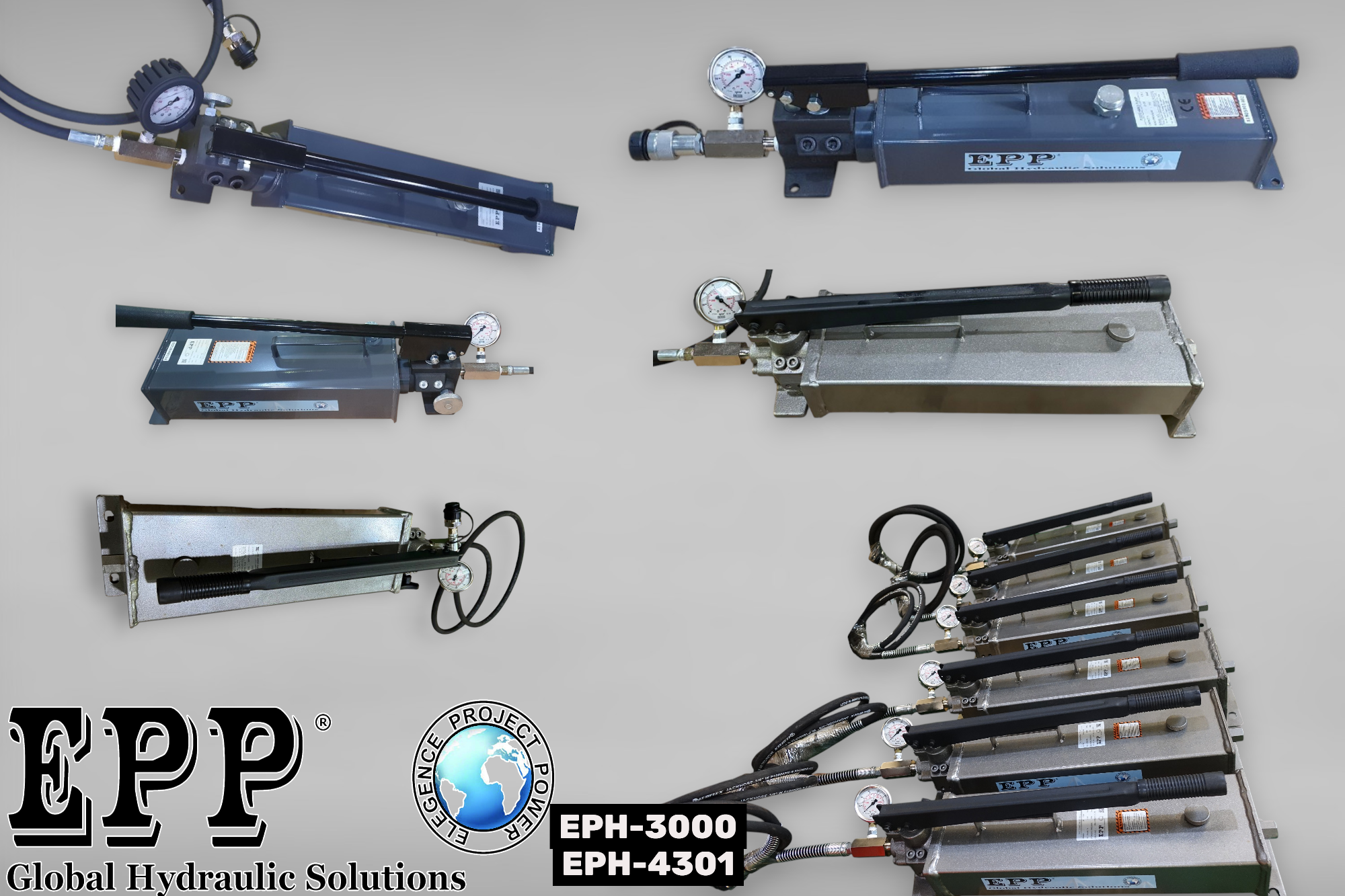

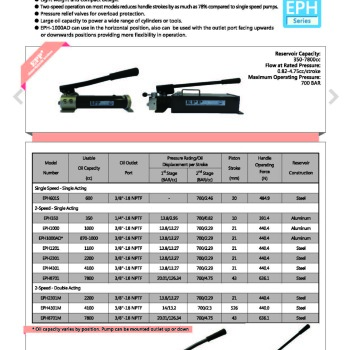

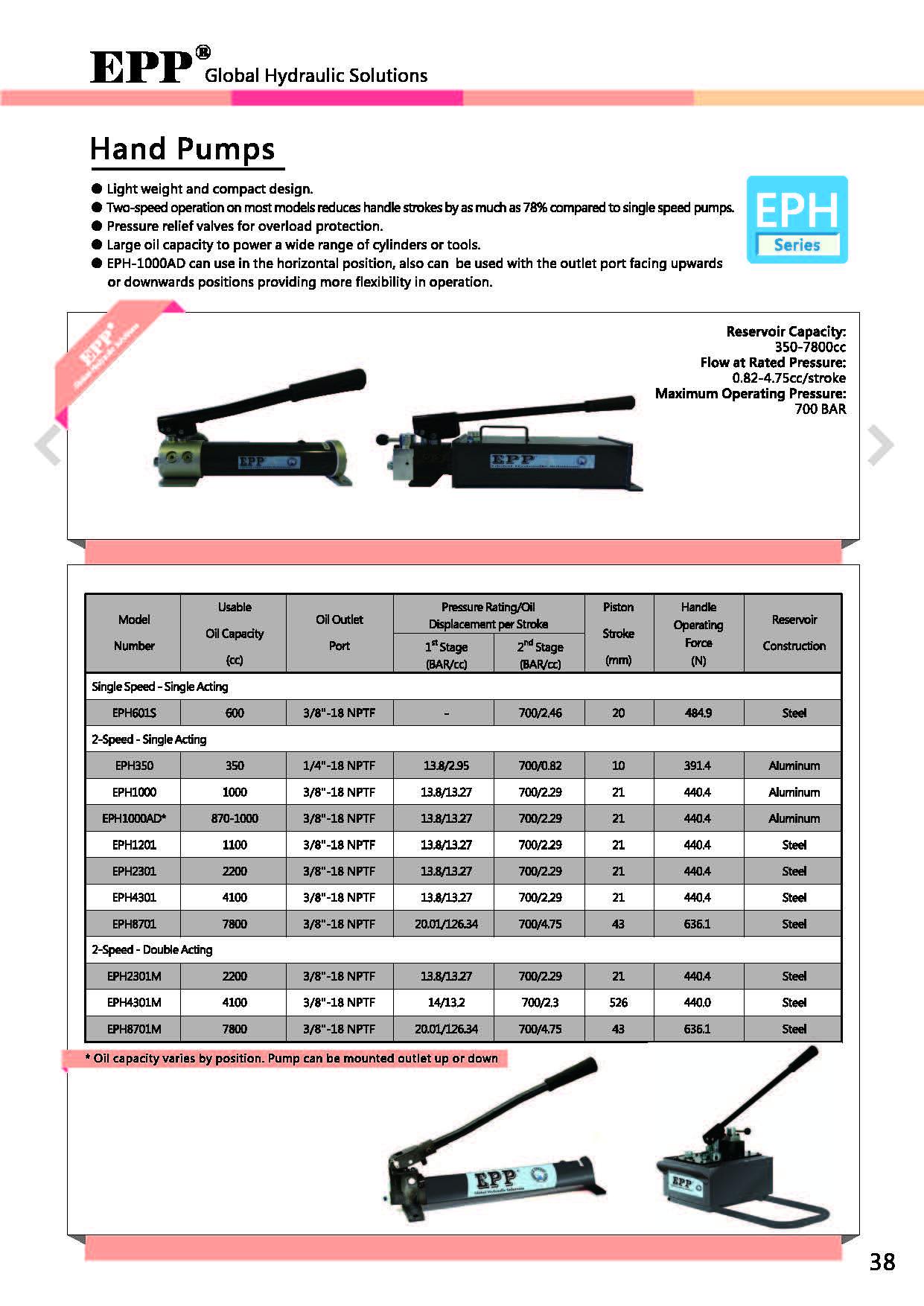

Hand Pumps
Lightweight & Compact Design – Easy to handle and transport.
Two-Speed Operation – Reduces handle strokes by up to 78% compared to single-speed models.
Pressure Relief Valves – Protects against overload for safe operation.
Large Oil Capacity – Powers a wide range of cylinders or tools.
Flexible Mounting (EPH-1000AD) – Can be used horizontally or with outlet port facing up or down.
High Oil Displacement per Stroke – Delivers more oil per handle movement.
Rugged Construction – Designed for industrial and construction use.
External Adjustable Relief Valve – Allows precise pressure control.
Alloy Aluminum Body – Lightweight, corrosion-resistant, and durable in harsh environments.
Standard Output Port – 3/8” NPT for easy connection.

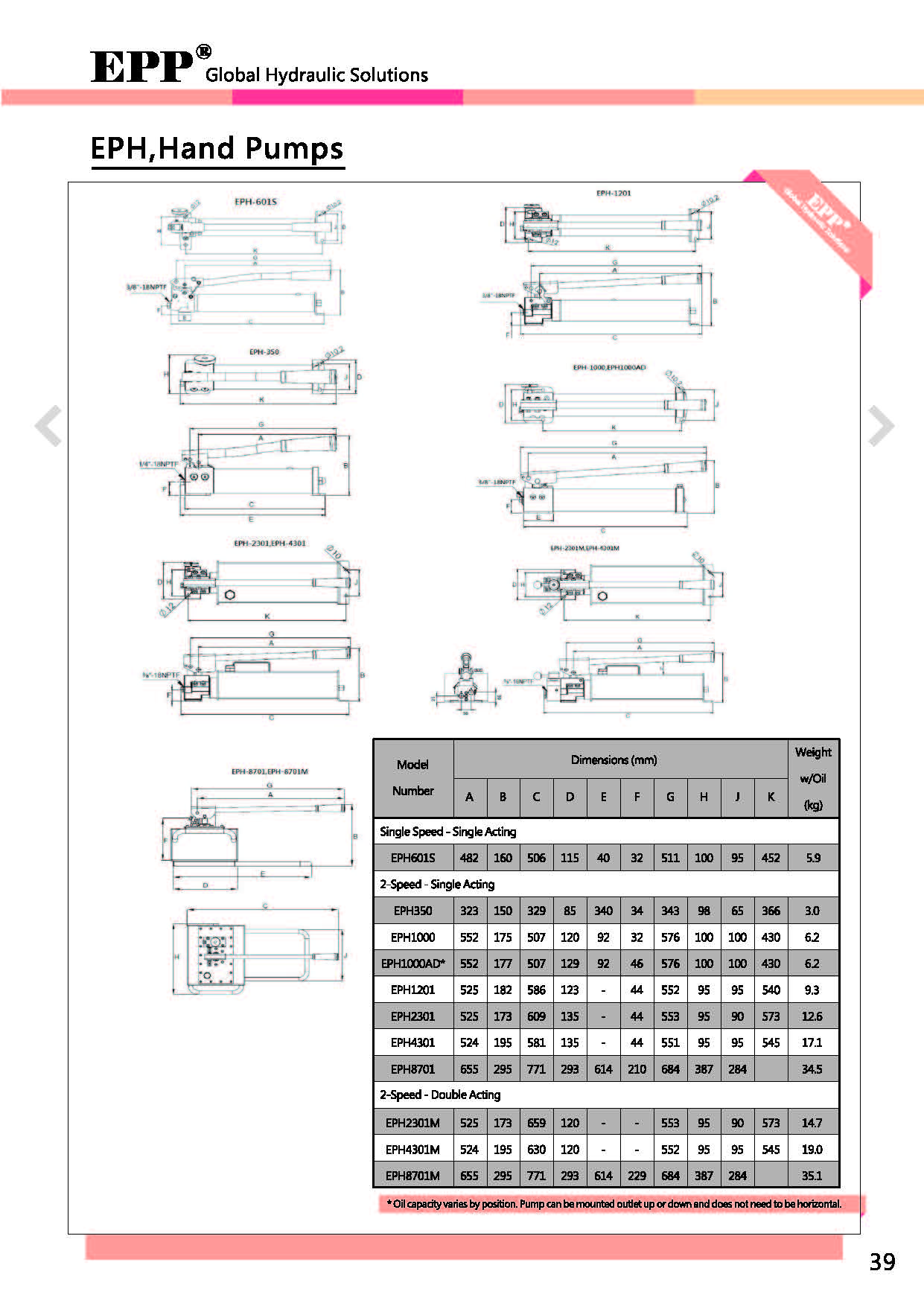

Model Number |
Usable Oil Capacity (cc) |
Oil Outlet Port |
pressure Rating/ Oil Displacemrnt per Strok (BAR/cc) |
Piston Stroke (mm) |
Handle Operating Force (N) |
Reservoir Construction |
|
---|---|---|---|---|---|---|---|
1st Stage | 2nd Stage | ||||||
Single Speed – Single Acting | |||||||
EPH601S | 600 | 3/8"-18NPTF | - | 700/2.46 | 20 | 484.9 | Steel |
2-Speed – Single Acting | |||||||
EPH350 | 350 | 1/4"-18NPTF |
13.8/2.95 | 700/0.82 | 10 | 391.4 | Aluminum |

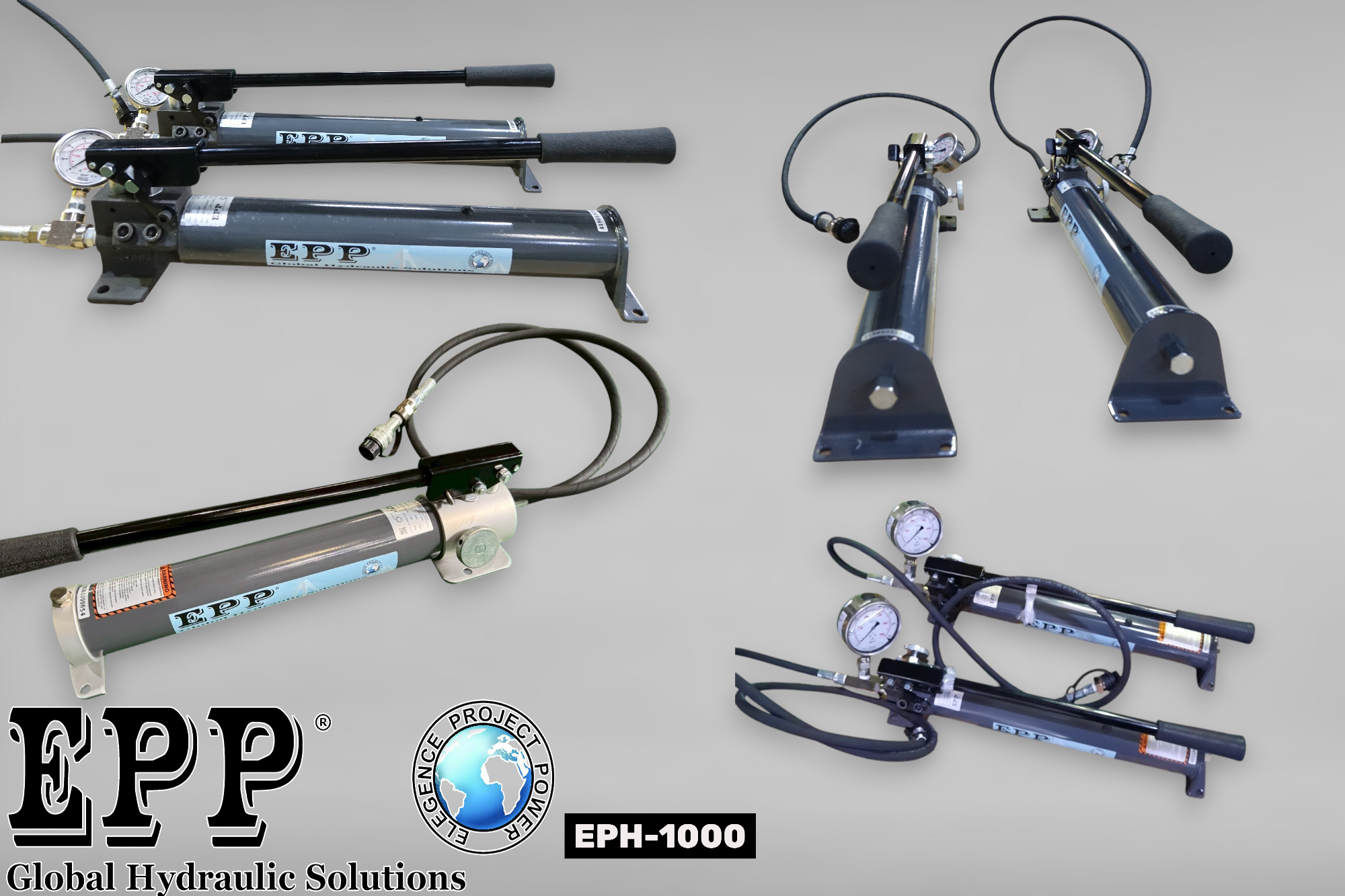

EPH1000 | 1000 | 3/8"-18NPTF |
13.8/13.27 | 700/2.29 | 21 | 440.4 | Aluminum |
EPH1000AD | 870-1000 | 3/8"-18NPTF |
13.8/13.27 | 700/2.29 | 21 | 440.4 | Aluminum |
EPH1201 | 1100 | 3/8"-18NPTF |
13.8/13.27 | 700/2.29 | 21 | 440.4 | Steel |
EPH2301 | 2200 | 3/8"-18NPTF |
13.8/13.27 | 700/2.29 | 21 | 440.4 | Steel |
EPH4301 | 4100 | 3/8"-18NPTF |
13.8/13.27 | 700/2.29 | 21 | 440.4 | Steel |

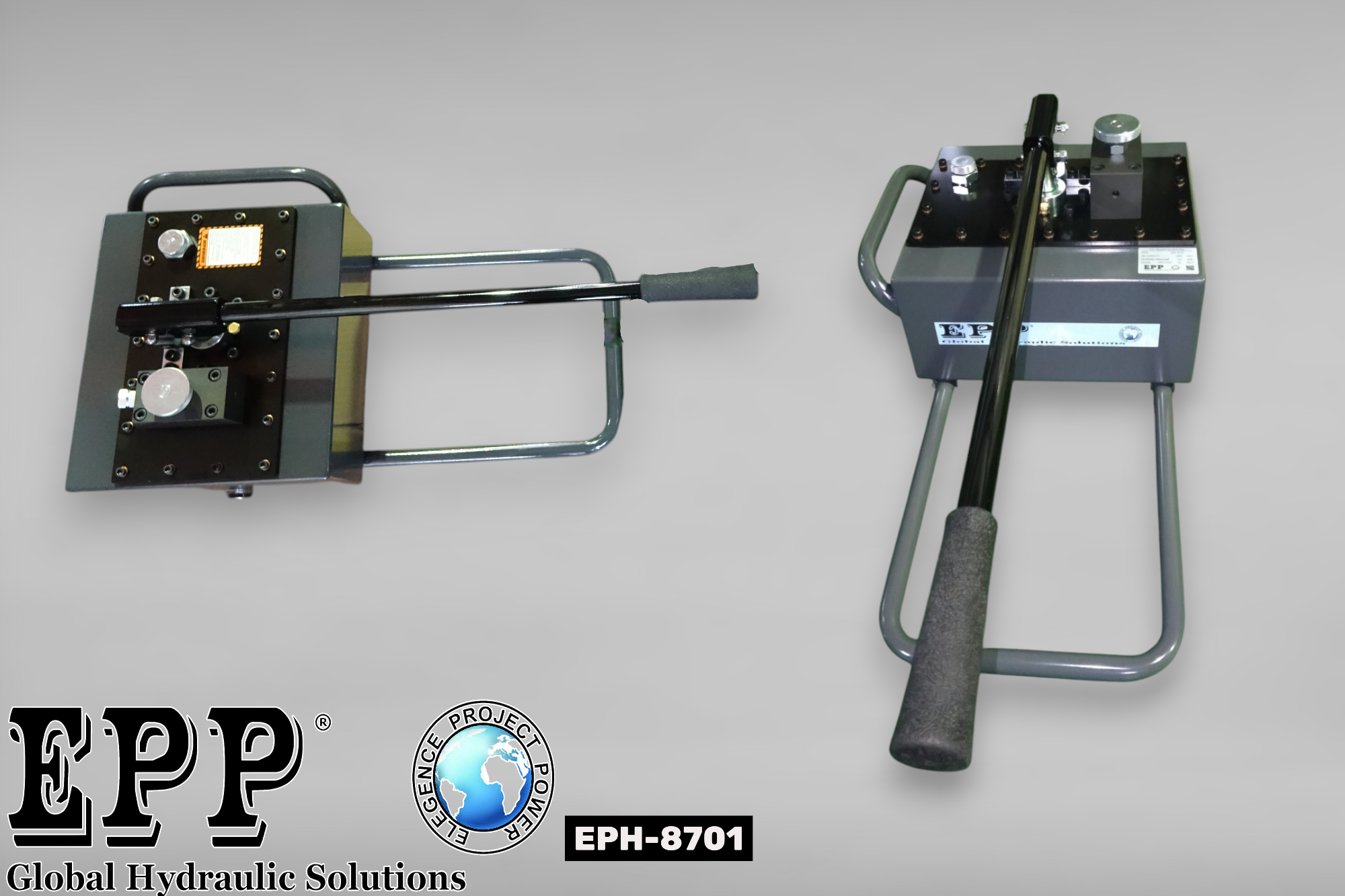

EPH8701 | 7800 | 3/8"-18NPTF |
20.01/126.34 | 700/4.75 | 43 | 636.1 | Steel |
2-Speed – Double Acting | |||||||
EPH2301M | 2200 | 3/8"-18NPTF |
13.8/13.27 | 700/2.29 | 21 | 440.4 | Steel |
EPH4301M | 4100 | 3/8"-18NPTF |
14/13.2 | 700/2.3 | 526 | 440.4 | Steel |
EPH8701M | 7800 | 3/8"-18NPTF |
20.01/126.34 | 700/4.75 | 43 | 636.1 | Steel |
⚠ Oil capacity varies by position. Pump can be mounted outlet up or down. |
