Pneumatic Pump

Hydraulic Pump Features

  • High-Strength Reinforced Alloy Reservoir – Lightweight, corrosion-resistant, and engineered for long-term durability under high-pressure operation.

  • Pressure Relief Valves – Built-in safety valves protect against overpressure, ensuring reliable and safe operation in demanding industrial environments.

  • 4-Way Control Valve (EPA1500M & EPA3801M) – Enables precise operation of double-acting cylinders, improving control and efficiency for complex tasks.

  • Hand Operation Option (EPA600H) – Manual control alternative, offering flexibility in applications where electricity or automation is unavailable.

  • Maximum Working Pressure – Rated for up to 700 bar / 10,000 psi, suitable for heavy-duty hydraulic systems and demanding industrial tools.

  • High Oil Flow Efficiency – Optimized internal design reduces energy loss, allowing smooth, consistent cylinder movement.

  • Rugged Construction – Reinforced housing and premium materials ensure resistance to wear, impact, and harsh environmental conditions.

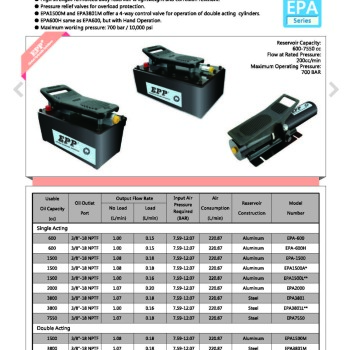

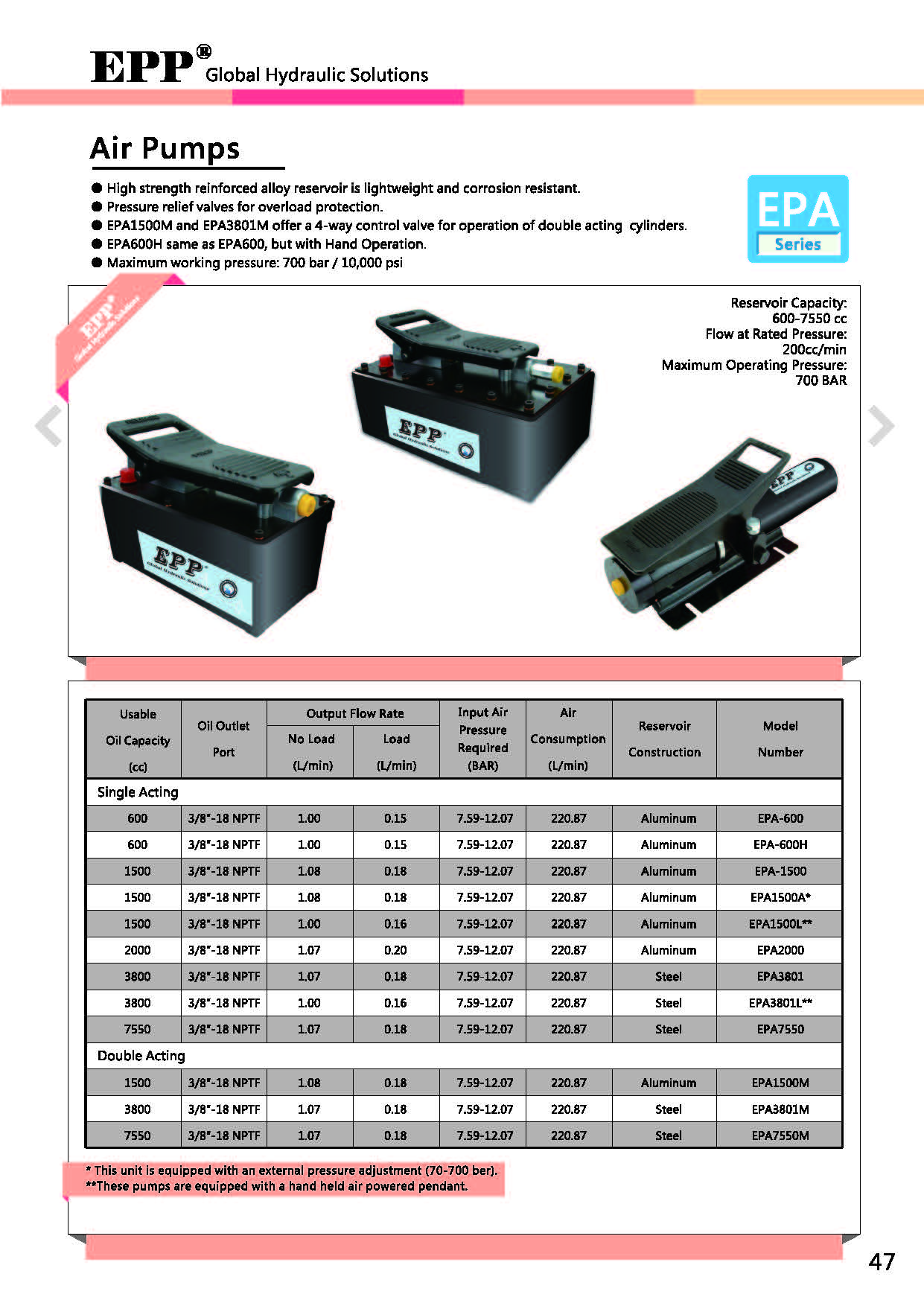

Model
Number		 Usable
Oil Capacity
(cc)		 Oil Outlet
Port		 Output Flow Rate
(L/Min)		 Input Air
Pressure
Required
(BAR)		 Air
Construction
(L/Min)		 Reservoir
Construction
NO Load Load
Single Acting
EPA600 600 3/8"-18NPTF 1.00 0.157.59-12.07 220.87 Aluminum
EPA600H 600 3/8"-18NPTF 1.00 0.157.59-12.07 220.87 Aluminum
EPA1500 1500 3/8"-18NPTF 1.08 0.187.59-12.07 220.87 Aluminum
EPA1500A 1500 3/8"-18NPTF 1.08 0.187.59-12.07 220.87 Aluminum
EPA1500L 1500 3/8"-18NPTF 1.00 0.167.59-12.07 220.87 Aluminum
EPA2000 2000 3/8"-18NPTF 1.07 0.207.59-12.07 220.87 Aluminum
EPA3801 3800 3/8"-18NPTF 1.07 0.187.59-12.07 220.87 Steel
EPA3081L 3800 3/8"-18NPTF 1.00 0.167.59-12.07 220.87 Steel
EPA7550 7550 3/8"-18NPTF 1.07 0.187.59-12.07 220.87 Steel
Double Acting
EPA1500M 1500 3/8"-18NPTF 1.08 0.187.59-12.07 220.87 Aluminum
EPA3801M 3800 3/8"-18NPTF 1.07 0.187.59-12.07 220.87 Steel
EPA7550M 7550 3/8"-18NPTF 1.07 0.187.59-12.07 220.87 Steel
* This unit is equipped with an external pressure adjustment (70-700 ber).
 **These pumps are equipped with a hand held air powered pendant.
